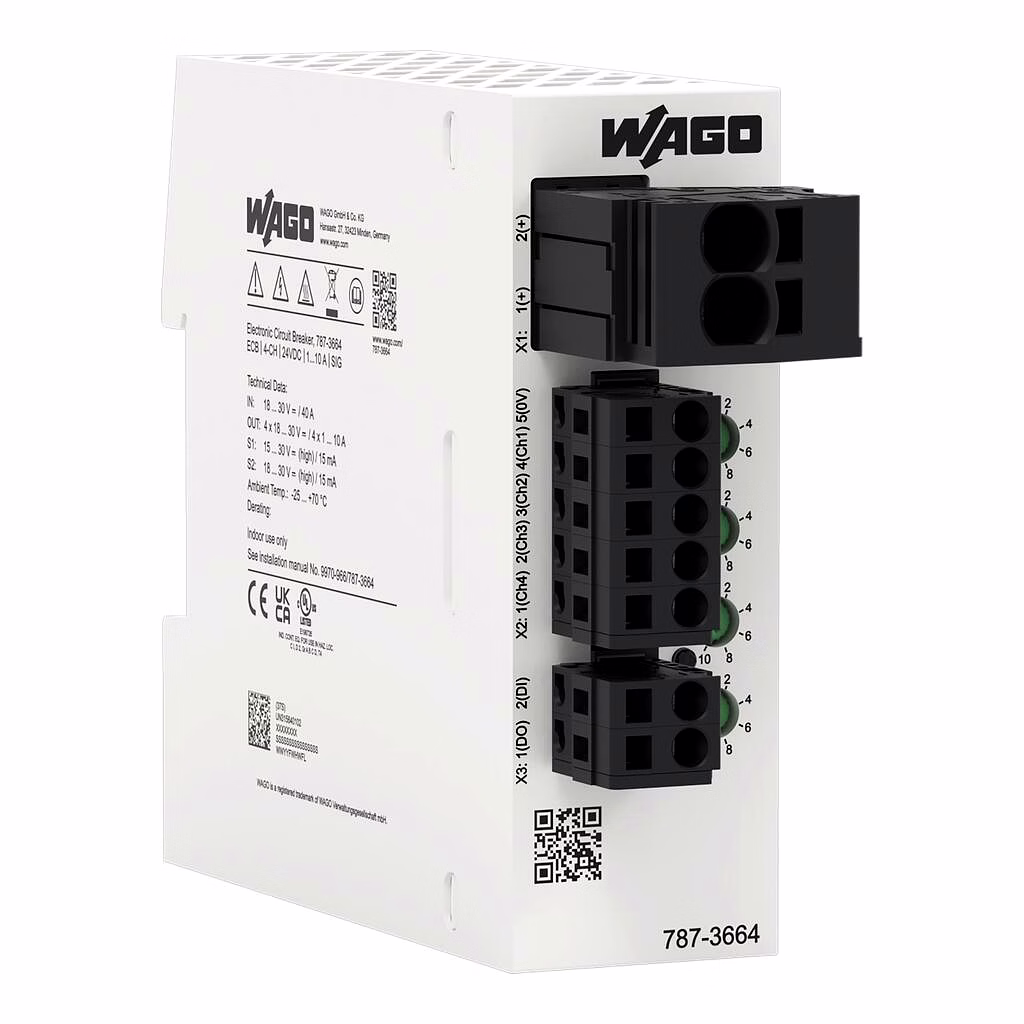

Space-saving ECB with four channels

Nominal current: 1 … 10 A (adjustable for each channel via sealable selector switch)

Switch-on capacity > 50,000 μF per channel

One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics

Time-delayed switching of channels

Tripped message (group signal)

Remote input resets tripped channels or switches on/off any number of channels

INPUT

Nominal input voltage Ui nom DC 24 V

Input voltage range DC 18 … 30 V

OUTPUT

Total number of channels (module) 4

Nominal output voltage Uo nom 4 x DC 24 V

Output voltage range DC 18 … 30 V (Ue − voltage drop)

Voltage drop ≤ 250 mV (Input (+))

Nominal output current Io nom 4 x 1 / 2 / 4 / 6 / 8 / 10 A (adjustable for each channel via selector switch)

Default setting DC 1 A; switched off

Switch-on capacity > 50000 µF per channel

Switch-on behavior Time-delayed channel switching (load-dependent, min. 50 ms / max. 10 s)

Active current limitation No

Current limitation No
