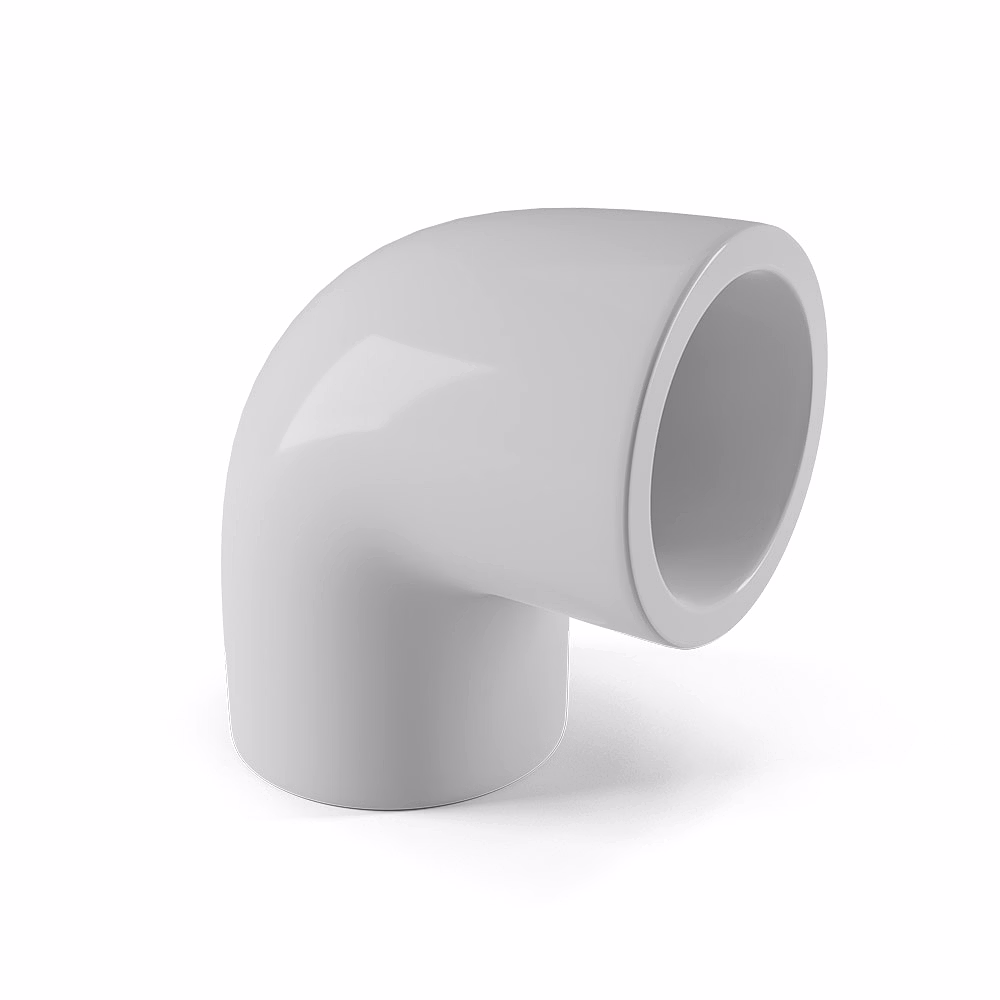

The Elbow 90° Threaded and Plain Fittings for ASTM Pipes are precision-engineered components designed to provide a reliable 90-degree turn in your piping systems. The Plain Elbow 90° fitting facilitates smooth changes in direction of pipelines without threaded connections, ideal for weld or socket weld setups. The Threaded Elbow 90° fitting allows for easy and secure connection with male threaded ASTM pipes and fittings, ensuring leak-proof joins in industrial, commercial, and sanitation plumbing installations. Manufactured to ASTM standards and available in various sizes ranging from 15mm (½ inch) up to 200mm (8 inches), these elbows are crafted with stringent dimensional accuracy to ensure compatibility and durability. They are essential for applications requiring precise directional changes in fluid or gas lines, benefiting from material codes tailored for both plain and threaded ends. With standard packaging quantities available for ease of inventory management, these elbows simplify installation while maintaining robust performance across diverse pipeline systems.
Key Features
| Features | Description |
|---|---|
| Angle Type | 90° |
| Connection Type | Threaded and Plain |
| Applicable Pipe Standard | ASTM Pipes |
| Size Range | 15mm (½") to 200mm (8") |
| Material Codes | Plain: 4512-4522, Threaded: 4523-4528 |
| Standard Packaging | Varies by size (2 to 350 pieces) |
| Finish | Suitable for industrial and sanitation use |
| Dimensional Accuracy | Compliant with ASTM standards |
| Functionality | Provides 90° pipeline turns; connects male threaded pipes (threaded version) |
| Attributes | Description |
|---|---|
| Size (mm) | 15, 20, 25, 32, 40, 50, 65, 80, 100, 150, 200 |
| Size (Inch) | ½", ¾", 1", 1¼", 1½", 2", 2½", 3", 4", 6", 8" |
| Height (H mm) | 50.00 to 349.80 |
| Width (W mm) | 3.73 to 28.12 |
| Socket Diameter (SD mm) | 22.22 to 102.60 |
| Material Codes Plain | 4512 to 4522 |
| Material Codes Threaded | 4523 to 4528 |
| Standard Packaging (Plain) | 350 to 2 pieces depending on size |
| Standard Packaging (Threaded) | 405 to 14 pieces depending on size |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
These elbows are specifically designed to be compatible with ASTM standard pipes, ensuring adherence to industrial specifications for size and dimensions.
Yes, the Elbow 90° fittings are engineered to handle both fluid and gas pipelines as per ASTM guidelines, making them versatile for industrial sanitation and other piping systems.
The threaded elbow fittings are designed to connect with male-threaded pipes and fittings, providing a secure threaded junction at 90 degrees.
Packaging quantities vary by size; for example, plain elbows come in standard lots ranging from 2 to 350 pieces, and threaded elbows from 14 to 405 pieces, facilitating bulk purchasing.
Yes, detailed measurements including height, width, and socket diameter in millimeters for all sizes are provided to ensure proper fitting selection and installation.
Brand: finolex
Country Of Origin: India
| Size (mm) | Size (Inch) | H | W | SD | Material Code (Plain) | Standard Pkg. (Plain) | Material Code (Threaded) | Standard Pkg. (Threaded) |
| 15 | ½” | 50.00 | 3.73 | 22.22 | 4512 | 350 | 4523 | 405 |
| 20 | ¾” | 57.00 | 3.91 | 25.40 | 4513 | 216 | 4524 | 105 |
| 25 | 1” | 67.50 | 4.55 | 28.58 | 4514 | 120 | 4525 | 60 |
| 32 | 1¼” | 80.00 | 4.85 | 31.75 | 4515 | 72 | 4526 | 32 |
| 40 | 1½” | 90.00 | 5.08 | 34.93 | 4516 | 48 | 4527 | 24 |
| 50 | 2” | 105.70 | 5.54 | 38.10 | 4517 | 30 | 4528 | 14 |
| 65 | 2½” | 130.65 | 7.01 | 44.45 | 4518 | 15 | – | – |
| 80 | 3” | 150.90 | 7.62 | 47.63 | 4519 | 10 | – | – |
| 100 | 4” | 187.75 | 8.56 | 57.15 | 4520 | 6 | – | – |
| 150 | 6″ | 267.60 | 22.60 | 76.70 | 4521 | 4 | – | – |
| 200 | 8” | 349.80 | 28.12 | 102.60 | 4522 | 2 | – | – |
| * All dimensions in "MM" |
