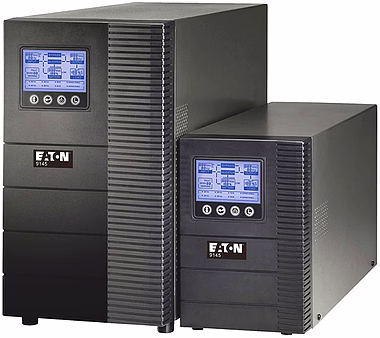

The Eaton 9145 15 kVA UPS system is a robust and reliable on-line UPS designed for critical applications requiring uninterrupted power supply. Operating at 288 V DC and supporting 24 external batteries, this UPS unit utilizes IGBT-based rectifier technology with true double conversion to provide clean, steady power. It supports a wide input voltage range from 110 to 275 Vac, making it ideal for harsh and fluctuating electrical environments. With up to 95% double conversion efficiency and an active input power factor correction of 0.99, the Eaton 9145 delivers optimal performance while ensuring energy efficiency. Featuring a unity output power factor (kVA = kW), digital charger technology with adjustable 0-12A charging current, and an automatic bypass for fault tolerance, it guarantees continuous operation without downtime. The cold start feature enables the UPS to power on using the battery, enhancing portability and convenience. This model is perfectly suited for networking equipment, servers, biometric and medical devices, security and surveillance systems including CCTV, IT loads such as PCs and printers, elevators and lifts, as well as lighting equipment. Compact in size (35x89x65 cm) and weighing 58.1 kg, the unit is engineered for professional and industrial power backup solutions. Eaton backs this UPS with a 2-year warranty on the unit and 1 year on batteries, ensuring dependable after-sales service through dedicated support channels.
Key Features
| Features | Description |
|---|---|
| Capacity | 15 kVA |
| UPS Type | 3:1 True Online Double Conversion UPS |
| Input Voltage Range | 110 – 275 Vac |
| Output Voltage | 288 V DC |
| Battery Configuration | External 24 Battery System |
| Efficiency | Up to 95% double conversion efficiency |
| Input Power Factor | Active PFC, 0.99 |
| Output Power Factor | Unity (kVA=kW) |
| Charger | Digital Charger Technology, 0-12 A adjustable charging current |
| Fault Tolerance | Automatic Bypass |
| Cold Start Capability | Yes, supports starting on battery power |
| Dimensions (WxDxH) | 35 x 89 x 65 cm |
| Weight | 58.1 kg |
| Warranty | 2 Years UPS, 1 Year Batteries |
| Attributes | Description |
|---|---|
| Eaton Part Code | 9105-52105 |
| Battery Type | External Battery System (24 Batteries) |
| Input Cable Included | No |
| Output Cable Included | No |
| User Manual | Provided |
| Application Areas | Networking & Server Equipment, Medical Equipment, Security & Surveillance Systems, IT Equipment, Lifts & Elevators, Lighting |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
No, the Eaton 9145 15 kVA UPS requires an external battery system consisting of 24 batteries.
IGBT based rectifier technology ensures high efficiency, reliable double conversion of power, and enhanced performance under varying load and input conditions.
No, the Eaton 9145 UPS does not include input or output cables; these need to be procured separately.
The UPS comes with a 2-year warranty on the unit and a 1-year warranty on the batteries, with dedicated customer support available via toll-free numbers and email.
Yes, it supports cold start functionality which allows the UPS to be powered on using battery power alone.
It is designed for networking/server equipment, medical devices, surveillance systems, IT load support, elevators, and lighting equipment in industrial or commercial settings.
Product Features (USP)
Applications
Warranty
2-year warranty on UPS and 1-year warranty on batteries. For Product warranty registration and service support, please reach out to Eaton on toll-free number: ***** or ***** and/or email on *****
