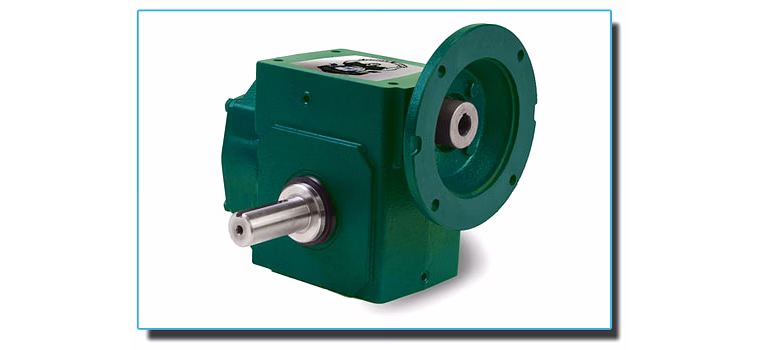

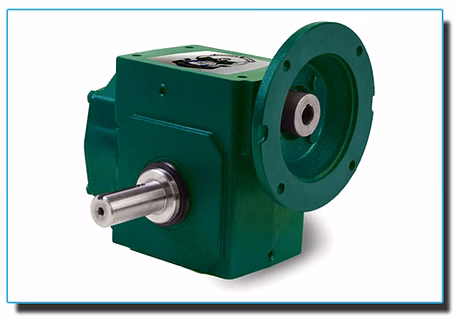

The E Series Right Angle Gear Reducers are crafted for superior compactness and efficiency in applications that demand a reliable right-angle drive. Designed for high durability and performance, these reducers cater to a broad spectrum of industrial applications. With robust offerings including all standard rating motors in stock, along with non-stock motors ready for short lead times, we provide competitive pricing and favorable commercial terms to meet your unique operational needs. The Grove Gear IronMan E Series employs advanced modified helical-bevel technology, achieving remarkable efficiency ratings of up to 90% while delivering up to 60% more torque compared to typical worm gear reducers. With four available sizes rated up to 27 HP and a variety of reduction ratios, this gear reducer is optimized for frequent starting and reversing applications. Its precision-machined cast iron housing, premium components, and versatile mounting options make it a reliable choice for diverse industrial setups. Whether used standalone or integrated with LEESON or Lincoln Motors, the E Series ensures efficient and effective performance in demanding environments.
Key Features
| Features | Description |
|---|---|
| High Efficiency | Operates at up to 90% efficiency, significantly outperforming traditional worm gear reducers. |
| Torque Density | Offers up to 60% higher torque compared to conventional gear reducers. |
| Durable Housing | Precision machined cast iron housing for industrial strength and durability. |
| Lubrication | Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant for extended life. |
| Shock Load Capacity | Oversized positively-retained high-speed input shaft bearing for increased capacity. |
| Bearing System | Tapered roller bearings on the output shaft designed for high overhung and thrust load capacities. |
| Interchangeability | Mounting dimensions allow interchange with many popular reducers. |
| Modular Components | Offers various accessories to customize for specific applications. |
| Custom Motor Integration | Pre-assembled options available with LEESON or Lincoln Motors. |
| Attributes | Description |
|---|---|
| Size Options | Available in four different sizes. |
| Power Ratings | Rated for up to 27 HP. |
| Reduction Ratios | Available from 7.8:1 to 59:1. |
| Material | Constructed from high-strength steel alloy and precision-machined cast iron. |
| Mounting Type | Multi-position mounting with integral mounting bases. |
| Bearing Type | Includes high-capacity tapered roller bearings. |
| Input Flange Standards | Cast iron IEC and NEMA C input flange for precision alignment. |
| Weight | Depends on the selected size, consult specifications for exact weight. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The E Series is ideal for various industrial applications, including manufacturing, material handling, and machine tools, where reliable and efficient gear reduction is critical.
The maximum output torque will depend on the specific model and reduction ratio selected, but each unit is designed to deliver significant torque density, often surpassing traditional options.
Yes, the E Series includes modular components and accessories that enable customization to suit specific operational requirements.
The E Series is designed to integrate seamlessly with LEESON or Lincoln Motors, as well as other standard motor types.
