The DZ6 400Y 800V MCCB is a specialized Moulded Case Circuit Breaker designed specifically for isolator applications. Unlike traditional MCCBs, it is devoid of protection trip units, making it ideal for switching various loads such as UPS and battery banks. The DZ6 model allows local isolation near motor loads, incoming sub-distribution, and serves effectively as an isolator for bus couplers. Additionally, it can function as an automatic switch for various applications, including those involving VFDs (Variable Frequency Drives) and soft starters. With its wide range of overload settings starting from 0.25In, the DZ6 MCCB offers excellent flexibility and control. The device features effective short circuit settings with both delay and instantaneous options, inbuilt Earth fault protection, and adjustable instantaneous settings for enhanced performance. It also comes equipped with thermal memory and an option for defeat, ensuring reliable operation in case of unexpected trip conditions. For quick diagnostics, the MCCB includes separate LEDs for overload, short circuit, instantaneous, and earth fault indications, making it a dependable choice for industrial environments.
Key Features
| Features | Description |
|---|---|
| Application Type | Isolator applications such as UPS and battery banks |
| Overload Setting Range | Starting from 0.25In |
| Neutral Overload Protection | Yes |
| Short Circuit Setting Options | Delay or instantaneous |
| Earth Fault Protection | Inbuilt |
| Instantaneous Setting | Adjustable |
| Thermal Memory | Available with defeat option |
| Indicators | Separate LEDs for overload, short circuit, instantaneous, and earth fault |
| Attributes | Description |
|---|---|
| Model | DZ6 400Y 800V MCCB 3P |
| Voltage Rating | 800V |
| Phase | 3 Phase |
| Current Rating | 400A |
| Mould Type | Moulded Case Circuit Breaker |
| Application | Switching various loads, isolation functions |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The DZ6 MCCB is primarily designed for indoor applications. For outdoor use, ensure it is protected within a suitable enclosure to avoid environmental damage.
Yes, the DZ6 MCCB features a wide range of overload settings starting from 0.25In, allowing for customization according to specific applications.
Yes, the DZ6 MCCB comes with a thermal memory feature and has an option for defeat provision, enhancing safety and reliability.
The DZ6 MCCB is designed to switch a variety of loads including UPS systems, battery banks, and motors associated with VFDs and soft starters.
The DZ6 MCCB includes separate LEDs to indicate overload, short circuit, instantaneous, and earth fault conditions, ensuring quick diagnostics.

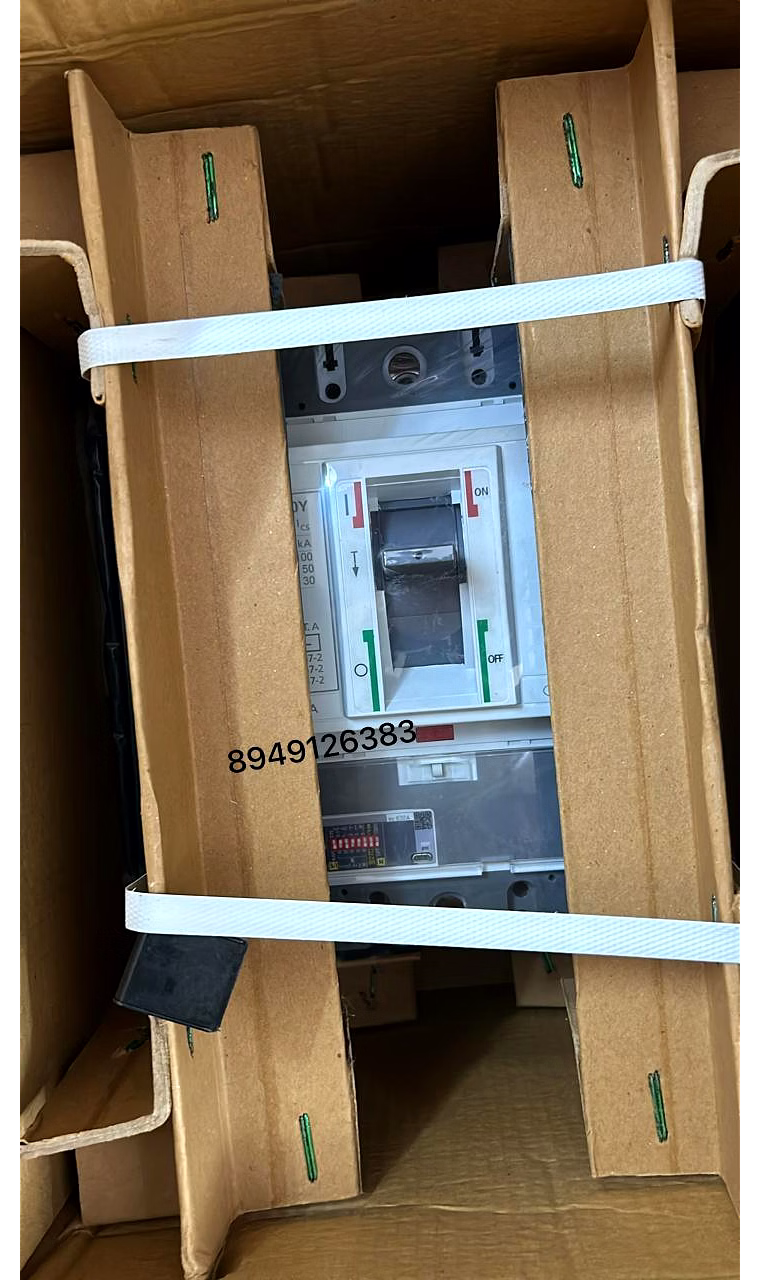

DZ6 400Y 800V MCCB 3P Moulded Case Circuit Breakers
DZ MCCBs for isolator application offer solution for switching various loads such as
UPS, battery banks, etc. with many advantages. These MCCBs differ from regular MCCBs
only in terms of absence of protection trip units. These MCCBs can be used for following
applications for isolation purpose:
• For local isolation: such as very close to motor load
• Incoming of any sub-distribution
• As an isolator for bus coupler
• As an automatic switch
• For switching applications of motors with VFDs, soft starters
•
•
•
•
•
•
•
•
Wide range of overload setting starting from 0.25In
Neutral overload protection
Short circuit setting with delay or instantaneous option
Inbuilt Earth fault Protection
Adjustable instantaneous Setting
Thermal Memory with option of Defeat
Provision for release testing
Separate LEDs each for Overload, Short Circuit, Instantaneous and Earth fault Indication
