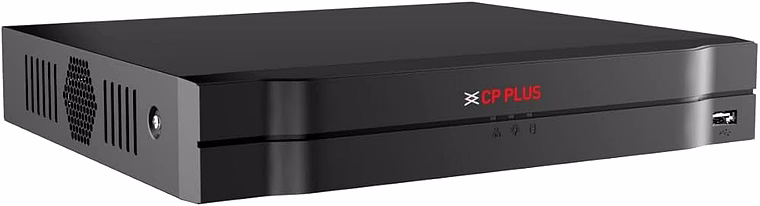

The DVR 16 Channel 5MP Supported (1601F1-IC) is a high-performance digital video recorder designed for advanced surveillance systems. This DVR supports versatile video input formats including HDCVI, AHD, TVI, CVBS, and IP, accommodating up to 24 IP camera inputs with resolutions up to 6MP per channel. Equipped with full-channel AI Instastream technology and Instastream/H.265 dual-stream compression, it optimizes bandwidth and storage. The system offers 16 analog channel video streams with SMD Plus intelligent motion detection capabilities for enhanced security monitoring. It supports a single SATA HDD with a storage capacity of up to 16TB and includes 2 USB ports for easy connectivity. Dual simultaneous video outputs via HDMI and VGA provide flexible display options. The DVR runs on an embedded LINUX operating system, ensuring stable and secure operations. Mobile access is facilitated through iCMOB and gCMOB apps, with CMS management via KVMS Pro software, making remote surveillance efficient and user-friendly.
Key Features
| Features | Description |
|---|---|
| Video Inputs | Supports HDCVI, AHD, TVI, CVBS, and IP video inputs up to 24 IP channels |
| Resolution Support | Up to 6MP per channel IP camera input |
| AI Technology | Full-channel AI Instastream and SMD Plus for smart motion detection |
| Video Compression | Instastream/H.265 dual-stream, H.264+/H.264 compatible |
| Storage | Supports 1 SATA HDD up to 16TB |
| Video Output | 1 HDMI and 1 VGA simultaneous output |
| Audio Support | 1 Channel RCA input, 16 Channel BNC coaxial audio inputs, 1 Channel RCA audio output |
| Operating System | Embedded LINUX for stable performance |
| Remote Access | Mobile apps iCMOB, gCMOB; CMS software KVMS Pro |
| Performance | Supports up to 16+8 IP camera inputs with real-time AI search by target classification (Human, Vehicle) |
| Attributes | Description |
|---|---|
| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16+8 channels, up to 6MP each |
| Two-way Talk | Reuse audio in/out, RCA |
| User Interface | Graphical User Interface (GUI) |
| SMD Plus | Supported on 16 channels |
| AI Search | SMD Search by target classification (Human, Vehicle) |
| Video Input | 16 channel, BNC connection |
| Video Output | 1 HDMI, 1 VGA |
| Video Compression Formats | AI Instastream, Instastream, H.265, H.264+, H.264 |
| Video Resolution (Display) | VGA: 1920×1080, 1280×1024, 1280×720; HDMI: 1920×1080, 1280×1024, 1280×720 |
| Supported Recording Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Video Recording Frame Rate | Main stream: 1–10fps (5M-N), 1–15fps (4M-N/1080p), 1–25/30fps (D1/CIF); Sub stream: up to 15fps (D1/CIF) |
| Video Display Split Modes | 1, 4, 8, 9, 16 |
| On-Screen Display (OSD) | Camera title, Time, Video loss, Camera lock, Motion detection, Recording status |
| Bit Rate | 32 kbps to 6144 kbps per channel |
| Audio Inputs | 1 Channel RCA (external); 16 Channels BNC (coaxial) |
| Audio Output | 1 Channel RCA |
| Audio Sample Rate | 8KHz, 16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Motion Detection | Supported |
| Storage Interface | Supports 1 SATA HDD up to 16TB |
| USB Ports | 2 USB ports |
| Mobile Software Compatibility | iCMOB, gCMOB |
| CMS Software | KVMS Pro |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the DVR supports simultaneous video output via 1 HDMI and 1 VGA port.
Each IP camera channel supports up to 6MP resolution.
Yes, the DVR supports one SATA HDD with a capacity of up to 16TB.
Yes, full-channel AI Instastream and SMD Plus motion detection is supported on all 16 analog channels.
Remote surveillance is supported via the mobile apps iCMOB and gCMOB.
The DVR supports AI Instastream, Instastream, H.265, H.264+, and H.264 video compression formats.
Yes, the DVR supports two-way talk using reused audio input/output via RCA connectors.
Country Of Origin: India
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 24 channels IP camera inputs, each channel up to 6MP
Supports Full-channel AI Instastream
Instastream/H.265 dual-stream video compression
Up to 16 channels video stream (analog channel) SMD Plus
Support 1 SATA HDD up to 16TB Each, 2 USB Ports
1 HDMI / 1 VGA Simultaneous Video Output
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Feature Specification
Processor Embedded processor
Operating System Embedded LINUX
IP Camera Input 16+8 channels, each channel up to 6MP
Two-way Talk Reuse audio in/out, RCA
User Interface GUI
Performance SMD Plus 16 Channels
AI Search SMD Search by target classification (Human, Vehicle)
Video Input 16 channel, BNC
Video Output 1 HDMI, 1 VGA
Video Compression AI Instastream/Instastream/H.265/H.264+/H.264
Video Resolution
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
Resolution 5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF
Video Recording
Main stream: All channel 5M-N (1 fps–10fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H
D1/CIF (1 fps–25/30fps) Sub Stream: D1/CIF (1 fps–15fps)
Video Display Split 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Bit Rate 32 kbps–6144 kbps per channel
Audio Input 1 Ch., RCA (external) ; 16 Ch., BNC (coaxial)
Audio Output 1 channel, RCA
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Motion Detection Support
*Product casing and specifications are subject to change without prior notice
