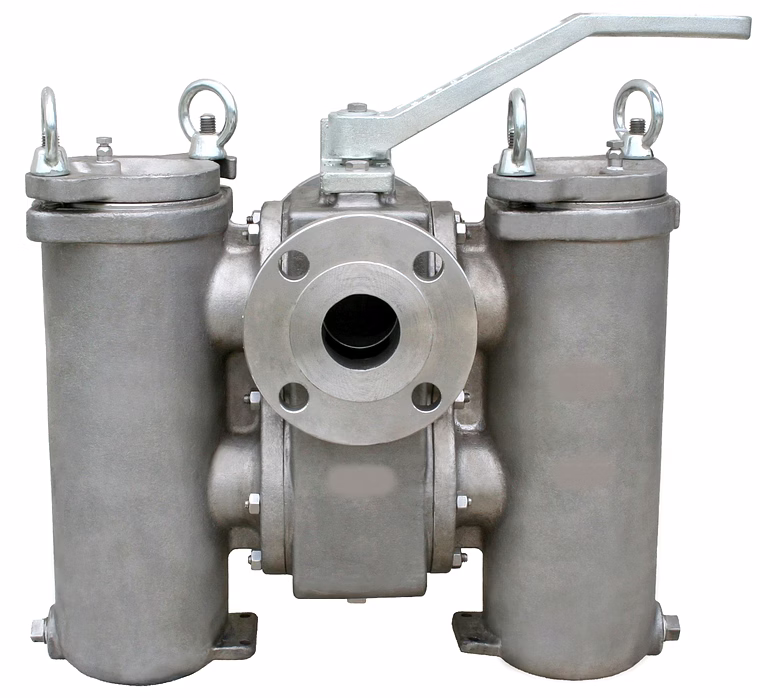

The Duplex Strainer SS316L for Continuous Filtration is an industrial-grade strainer designed to optimize and maintain a consistent flow in various applications. With a robust construction utilizing high-grade materials such as SS316L, this duplex strainer ensures exceptional performance in demanding environments. The strainer features a unique design that allows simultaneous operation of flow paths, effectively reducing downtime during maintenance or cleaning. Suitable for various industries including oil and gas, petrochemicals, food and beverage, water treatment, and pharmaceuticals, the Duplex Strainer caters to sizes ranging from ½” to 24”. With multiple screening and material options available, it provides a flexible solution for continuous filtration processes, ensuring maximum efficiency and reliability while meeting strict regulatory standards.
Key Features
| Features | Description |
|---|---|
| Size Range | ½” (15mm) to 24” (600mm) |
| Body Material Options | Cast Iron, Ductile Iron, WCB, LCB, CF8, CF8M, CF3M, Duplex Steel, Super Duplex, Alloy 20, Monel, Hastelloy |
| Screen Material Options | SS304, SS316, SS316L, Duplex SS, Monel, Hastelloy |
| Working Temperature Range | -29°C to 425°C depending on material |
| Pressure Ratings | ANSI / ASME Class 150, 300, 600, 900, 1500 / PN10, PN16, PN25, PN40, PN100, PN250 |
| End Connections | Flanged (ASME B16.5), Screwed (BSP/NPT), Socket Weld (ASME B16.11), Butt Weld (ASME B16.9) |
| Design Standards Compliance | ASME B31.1, ASME B31.3, EN 13445, DIN 3356, ISO 9001:2015 |
| Testing Standards | API 598, EN 12266-1, ISO 5208 |
| Screen Perforations | 0.5mm to 6mm or customized |
| Mesh Options | 20 Mesh to 400 Mesh according to process requirement |
| Manufacturing Certification | ISO 9001:2015, CE Certification |
| Face-to-Face Dimensions | ASME B16.10, EN 558, DIN 3202 |
| Inspection Certification | ISO 9001:2015, EN 10204 3.1 / 3.2 Material Certification, CE Certification |
| Attributes | Description |
|---|---|
| Material Certification | Available upon request based on ISO 9001:2015 |
| Flow Rate | Varies depending on size and application |
| Application | Ideal for continuous filtration in oil and gas, pharmaceuticals, food processing |
| Port Configuration | Custom configurations available |
| Filtration Efficiency | Customizable based on mesh and perforation specifications |
| Weight | Varies per size and material type |
| Temperature Resistance | Compatible with a wide range of temperatures based on body and screen materials |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Duplex Strainer can be made from various materials including Cast Iron, Ductile Iron, Duplex Steel, Monel, Hastelloy, and several stainless steel variants like SS316L.
The working temperature range of -29°C to 425°C ensures that the Duplex Strainer maintains its structural integrity and performance across diverse processes and environments.
Yes, the Duplex Strainer offers customizable screen perforations from 0.5mm to 6mm and mesh options ranging from 20 to 400 mesh to meet specific filtration requirements.
The Duplex Strainer is manufactured under ISO 9001:2015 and carries CE certification to ensure compliance with international quality and safety standards.
Yes, the Duplex Strainer is tested according to API 598, EN 12266-1, and ISO 5208 to ensure top-tier performance and reliability.
Country Of Origin: India
Parameter Specification
Size Range ½” (15mm) to 24” (600mm)
Body Material Cast Iron, Ductile Iron, WCB, LCB, CF8, CF8M, CF3M, Duplex Steel, Super Duplex, Alloy 20, Monel, Hastelloy
Screen Material SS304, SS316, SS316L, Duplex SS, Monel, Hastelloy
Working Temperature -29°C to 425°C depending on material
n
Pressure Ratings ANSI / ASME Class 150, 300, 600, 900, 1500 / PN10, PN16, PN25, PN40, PN100, PN250
End Connections Flanged (ASME B16.5), Screwed (BSP/NPT), Socket Weld (ASME B16.11), Butt Weld (ASME B16.9), ASME B1.20.1 (Threaded), EN 1092-1, DIN 2633
Design Standards ASME B31.1, ASME B31.3, EN 13445, DIN 3356, ISO 9001:2015
Testing Standards API 598, EN 12266-1, ISO 5208
Screen Perforations 0.5mm to 6mm or customized
Mesh Options 20 Mesh to 400 Mesh depending on process requirement
Manufacturing Certification ISO 9001:2015, CE Certification
Face-to-Face ASME B16.10, EN 558, DIN 3202
Inspection ISO 9001:2015, EN 10204 3.1 / 3.2 Material Certification, CE Certificatio
