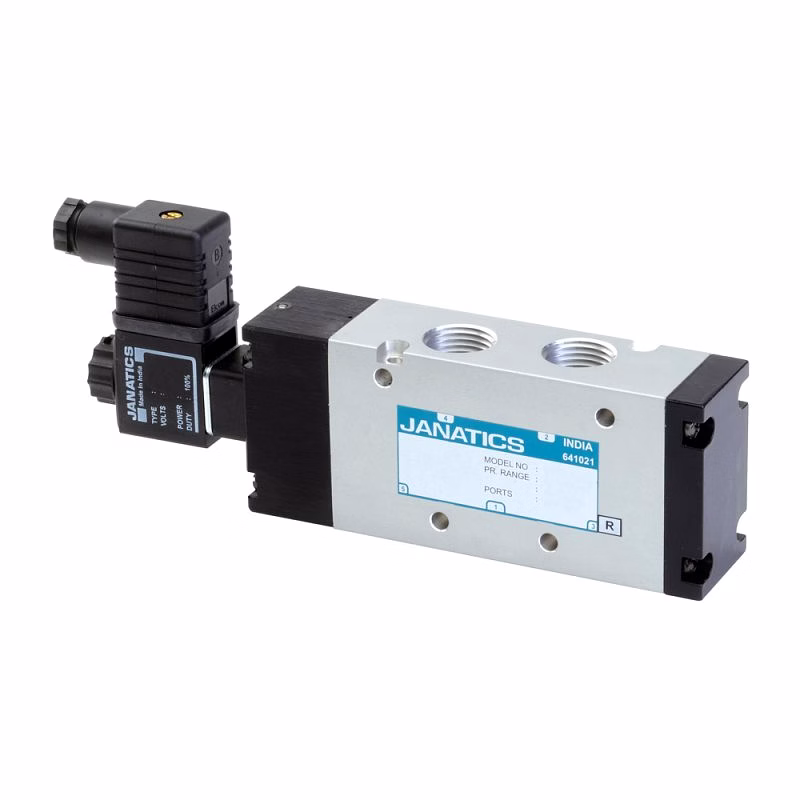

The DS255SR61 valve is a precision-engineered, high-performance 5/2 solenoid valve manufactured by Janatics, designed for efficient pneumatic control applications. Featuring a 1/4 inch port size, this solenoid valve provides reliable directional control of compressed air in automation systems. The valve's 5/2 configuration allows it to switch between two output ports using five connection points, making it ideal for controlling double-acting cylinders and other pneumatic actuators. Built with robust materials and Janatics' proprietary technology, the DS255SR61 ensures long service life, quick response time, and minimal power consumption. It is suitable for various industrial automation setups, including assembly lines, packaging machinery, and material handling systems, where precise and rapid valve operation is critical. The compact design of the DS255SR61 facilitates easy integration into existing pneumatic circuits, reducing downtime during installation or replacement.
Key Features
| Features | Description |
|---|---|
| Valve Type | 5/2 Solenoid Valve |
| Port Size | 1/4 inch |
| Manufacturer | Janatics |
| Solenoid Operation | Electric actuation |
| Operating Pressure Range | Typically up to 10 bar (subject to confirmation from datasheet) |
| Material Construction | Durable metal body with corrosion resistance |
| Applications | Pneumatic control for double-acting cylinders, automation machinery |
| Response Time | Fast switching for efficient automation |
| Mounting | Compact design for easy installation |
| Power Consumption | Low power solenoid coil design |
| Attributes | Description |
|---|---|
| Valve Model | DS255SR61 |
| Valve Type | 5/2 Way Solenoid Valve |
| Port Size | 1/4 inch BSP or NPT (confirm exact type) |
| Operating Voltage | Typically 12V/24V DC or 230V AC (voltages vary based on model variant) |
| Operating Pressure | 0 to 10 bar (145 psi) |
| Seal Material | NBR or equivalent rubber for air-tight sealing |
| Body Material | Aluminum or Die-cast Zinc |
| Mounting Type | Manual / Panel / Sub-base mounting possible |
| Temperature Range | -10°C to 60°C |
| Electrical Connection | DIN connector or flying leads |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The DS255SR61 valve serves as a 5/2 way directional control valve that controls airflow to double-acting pneumatic cylinders, allowing them to extend and retract by switching air supply between two output ports.
Janatics offers variants of the DS255SR61 solenoid valve that operate on DC (12V/24V) and AC (110V/230V) voltages. It is important to select the correct voltage version as per application requirements.
The DS255SR61 valve supports various mounting options including manual, panel, and sub-base mounting, facilitating flexible installation in different pneumatic control setups.
Typically, the valve operates safely within a pressure range of 0 to 10 bar (145 psi). Use beyond this pressure may require confirmation with Janatics technical data or special models.
The valve uses high-quality seals such as NBR (Nitrile Butadiene Rubber) to maintain air-tight sealing and ensure reliable operation without leakage in pneumatic systems.
Country Of Origin: India
Janatics make 5/2 1/4 solenoid valve
