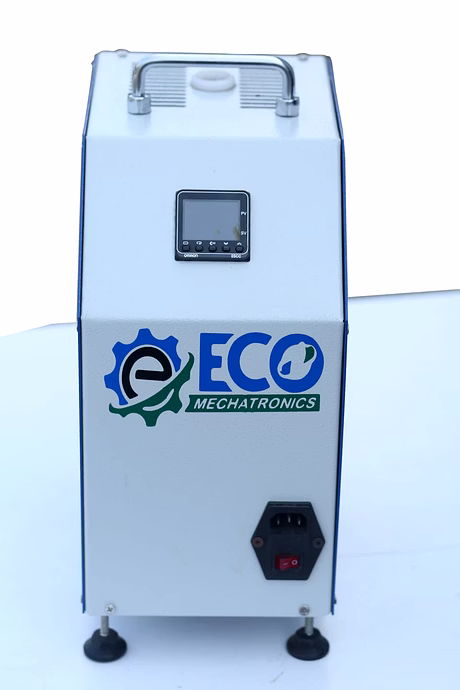

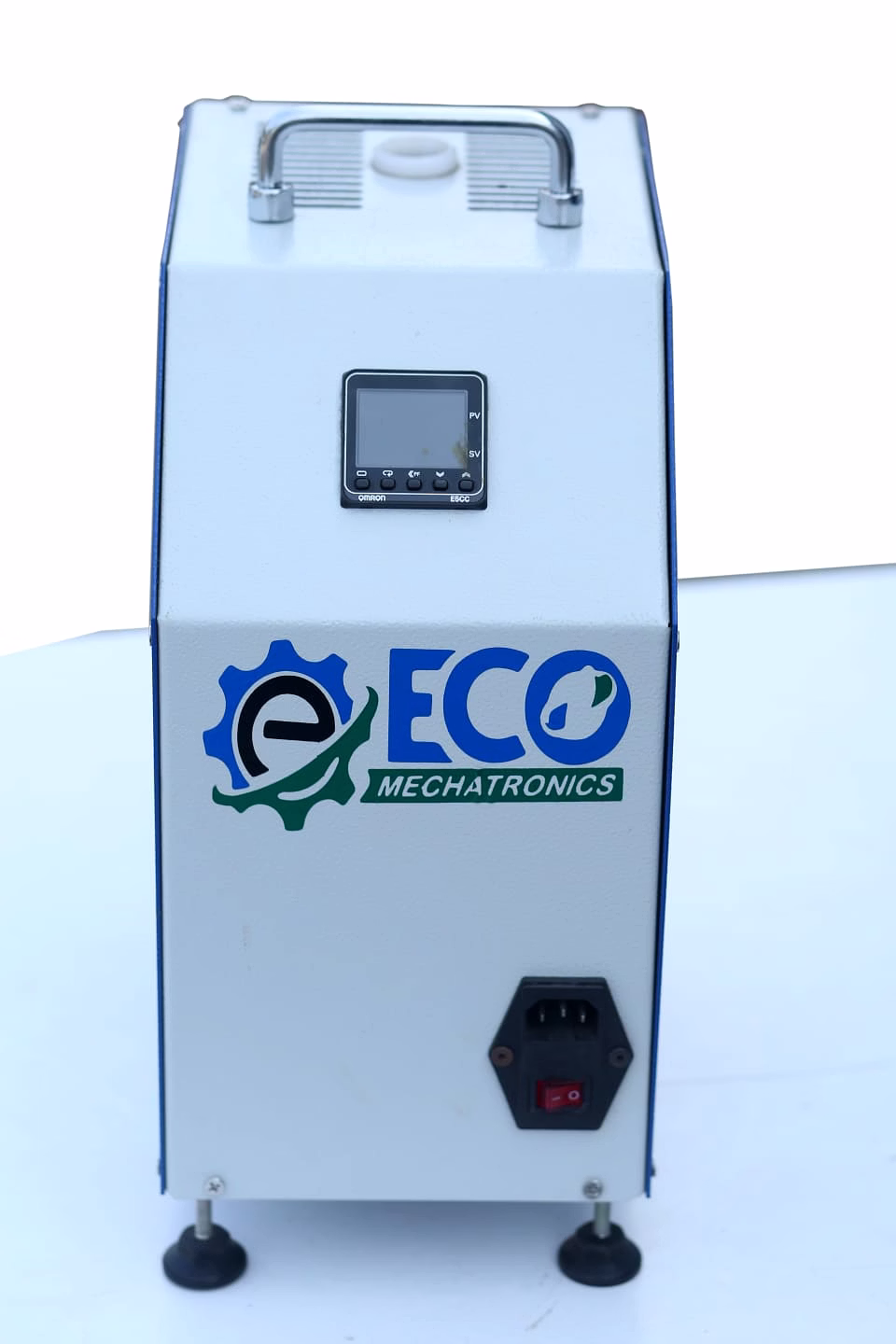

The DRY BLOCK CALIBRATOR is a precision instrument designed for accurate temperature calibration ranging from -30°C to 100°C. Ideal for calibration laboratories, on-site calibration tasks, testing laboratories for RTDs and thermocouples, and process industry in-house calibration, this calibrator ensures reliable performance for small and uniquely shaped sensors and thermometers. Featuring fast heating and cooling capabilities, the calibrator offers high accuracy with ±0.06°C precision and excellent temperature stability at ±0.1°C. Its compact and lightweight design along with simple operation makes it highly practical for professional use. With a block diameter of 22 mm and immersion depth of 120 mm, it ensures effective and uniform temperature distribution. The device operates on a 230V AC power supply and incorporates a user-friendly display resolution of 0.1°C for precise readings. Storage and usage dimensions (260 x 170 x 320 mm) and a manageable weight of 14 kg facilitate convenient transport and installation across various industrial and laboratory settings.
Key Features
| Features | Description |
|---|---|
| Temperature Range | -30°C to 100°C |
| Application | Calibration of small and odd-shaped sensors and thermometers; RTD and thermocouple testing; process industry in-house calibration |
| Heating and Cooling Speed | Fast heating (15 mins to 100°C), fast cooling (25 mins to -30°C) |
| Accuracy | ±0.06°C |
| Stability | ±0.1°C |
| Display Resolution | 0.1°C |
| Block Diameter | 22 mm |
| Block Immersion Depth | 120 mm |
| Insertion Tube Depth | 110 mm |
| Power Supply | 230V AC ±2.5%, 50 Hz |
| Dimensions | 260 x 170 x 320 mm |
| Weight | 14 kg |
| Design | Compact, lightweight, and simple operation |
| Attributes | Description |
|---|---|
| Temperature Calibration Range | -30°C to 100°C |
| Display Resolution | 0.1°C |
| Accuracy | ±0.06°C |
| Temperature Stability | ±0.1°C |
| Stabilization Time | 10 minutes |
| Heating Time | 15 minutes (Ambient to 100°C) |
| Cooling Time | 25 minutes (Ambient to -30°C) |
| Block Diameter | 22 mm |
| Block Immersion Length | 120 mm |
| Insertion Tube Depth | 110 mm |
| Power Supply | 230V AC ±2.5%, 50 Hz |
| Weight | 14 kg |
| Dimensions (L x W x H) | 260 x 170 x 320 mm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The dry block calibrator offers a high accuracy tolerance of ±0.06°C ensuring precise calibration of sensors and thermometers.
Yes, its low weight (14 kg), compact design, and simple operation make it well-suited for on-site calibration applications.
It covers temperatures from -30°C below ambient up to 100°C, suitable for a wide variety of temperature sensors.
The stabilisation time for the device is approximately 10 minutes, allowing for rapid calibration processes.
The block diameter is 22 mm with an immersion depth of 120 mm, allowing calibration of small and odd-shaped sensors.
Country Of Origin: India
DRY BLOCK LOW TEMPERATURE CALIBRATOR
RANGE - 30 DEG C TO 100 DEG C
Application.
In Calibration Laboratories for the Calibration of small, odd shaped sensors and thermometers.
For On-site Calibration.
Testing laboratory of RTDs abd Thermocouples.
Process Industry In-house Calibration
Features.
Fast Heating and Cooling
High Accuracy and Stability
Low weight and Compact design
Simple Operation
Technical Specifications:
Range - - 30 from Ambient to 100 Deg C @Ambient 25 Deg C
Display Resolution - 0.1 Deg C
Accuracy - + - 0.06 Deg C
Stability - +- 0.1 Deg C
Stabilization Time - 10 mnts.
Heating Time - (Ambient to 100 Deg C) - 15 mnts
Cooling Time - (Ambient to Negative Max.) - 25 mnts
Block Dia. - 22 mm
Block Immersion - 120 mm
Insertion Tube Depth - 110 mm
Power Supply - 230V AC +-2.5/50 Hz
Dimensions - (260 X 170 X 320 ( mm
Weight - 14 Kg.
