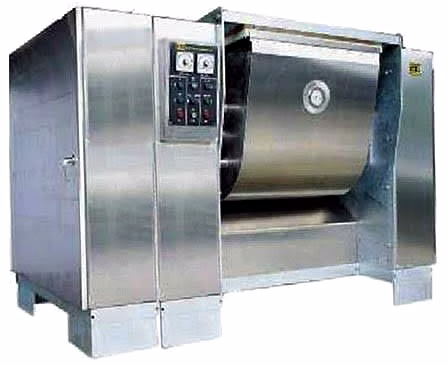

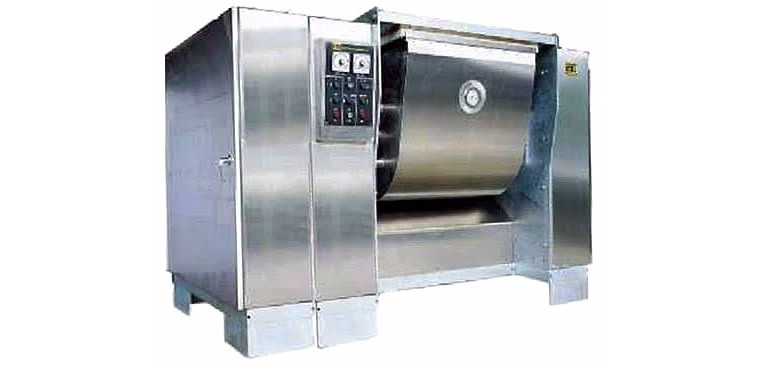

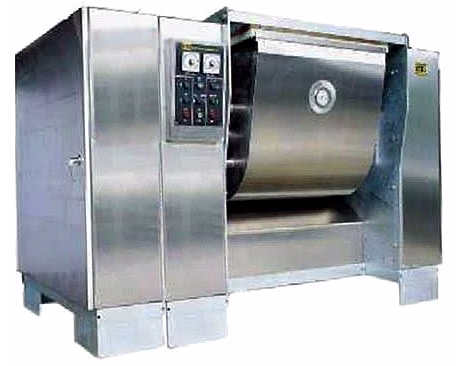

The Dough Mixer - Double Arm ‘Sigma Type’ with Variable Speed by MECHTECH DESIGNERS AND ENGINEERS PRIVATE LIMITED is an industrial-grade dough mixer designed specifically for high-volume biscuit production. This powerful mixer boasts a 350 kg dough capacity per batch, making it ideal for bakery factories and large-scale food production units. Engineered for durability and precision, the mixer features heavy-duty construction with an SS-304 lined side plate and top cover, ensuring both hygiene and corrosion resistance. Its Sigma type ‘Z’ mixing arms with EN-8/9 shafting provide uniform, thorough mixing essential for consistent dough quality. Equipped with a robust motor and Heli-Bevel gear box, the machine delivers efficient torque and smooth performance. A pneumatic cylinder allows easy open/close operation of the top cover, while hydraulic systems enable effortless lifting and lowering of the mixing tub, enhancing operational safety and convenience. The inclusion of a water jacket helps maintain precise dough temperature, critical for biscuit production consistency. The PLC control panel with Variable Frequency Drive (VFD) further allows fine control of mixing speed adapting to different dough consistencies. Noise reduction is achieved with heavy-duty helical gears, ensuring a quieter workplace environment. Overall, this dough mixer is a reliable, efficient, and technologically advanced solution tailored to meet the rigorous demands of biscuit manufacturing plants.
Key Features
| Features | Description |
|---|---|
| Capacity | 350 Kgs of dough per batch |
| Mixer Type | Double Arm 'Sigma Type' with Variable Speed |
| Side Plate Material | Heavy duty with SS-304 lining |
| Mixing Arms | Sigma type 'Z' arms made with Steel Casting and SS-304 lining |
| Shafting | EN-8/9 End-shafting with 2 bearings on each side |
| Construction | Heavy duty steel casting frame with fabricated structural construction |
| Top Cover Operation | Pneumatic cylinder operated SS-304 top cover (Close/Open) |
| Motor & Gearbox | Heavy duty motor with Heli-Bevel gearbox |
| Hydraulic System | For lifting and lowering the mixing tub |
| Control | PLC Control Panel with VFD (Variable Frequency Drive) |
| Body Cover | All outside cover made with SS sheet |
| Gear Type | One side heavy duty helical gears for noise free movement |
| Temperature Control | Water jacket for maintaining dough temperature |
| Attributes | Description |
|---|---|
| Dough Batch Capacity | 350 Kgs |
| Mixing Arms | Double Arm Sigma Type ‘Z’ Arms |
| Material | SS-304 lining on side plates, mixing arms and top cover |
| Shafting | EN-8/9 steel end shaft with bearings |
| Frame | Heavy duty steel casting and fabricated structural construction |
| Top Cover | SS-304 with pneumatic cylinder operation |
| Motor Power | Heavy duty motor with Heli-Bevel gearbox |
| Hydraulics | System for tub lifting and lowering |
| Control System | PLC control with Variable Frequency Drive |
| Exterior | SS sheet outer covers |
| Gear Design | Heavy duty helical gears for noise reduction |
| Additional Features | Water jacket for dough temperature control |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the variable speed control and robust Sigma type mixing arms allow this mixer to handle all types of biscuit dough formulations efficiently.
The water jacket maintains optimal dough temperature during mixing, ensuring consistent dough quality and improved biscuit texture.
The top cover is operated pneumatically via a cylinder, allowing smooth open and close operation with minimal manual effort.
A hydraulic system is incorporated for safe and effortless lifting and lowering of the mixing tub, minimizing operator risk.
Yes, one side heavy duty helical gears are used to provide noise-free, smooth movement during operation.
Country Of Origin: India
DOUGH MIXER:
DOUBLE ARM ‘SIGMA TYPE’ (VARIABLE SPEED)
(i)
Heavy
duty side plate with SS-304 lining.
(ii)
Sigma
type ‘Z’ arms, Steel Casting with SS-304 lining.
(iii)
EN-8/9
End - shafting for mixing arms with 2 Nos. bearings in each side.
(iv)
Heavy
duty Steel casting Frame along with
fabricated structural construction.
(v)
SS-304
Top Cover Close / Open will be done by pneumatic cylinder .
(vi)
Heavy
duty Motor with Gear Box (Heli-Bevel) for mixing will be provided.
(vii)
Hydraulic
Systems for lifting & lowering the mixing tub.
(viii)
PLC
Control Panel with VFD .
(ix)
All
outside cover of the mixer will be with SS sheet .
(x)
One
side heavy duty Helical Gears (for noise free movement).
(xi)
Water
Jacket will be provided for maintain
dough temperature.
DOUGH MIXER: DOUBLE ARM ‘SIGMA TYPE’ (VARIABLE SPEED)
(i) Heavy duty side plate with SS-304 lining.
(ii) Sigma type ‘Z’ arms, Steel Casting with SS-304 lining.
(iii) EN-8/9 End - shafting for mixing arms with 2 Nos. bearings in each side.
(iv) Heavy duty Steel casting Frame along with fabricated structural construction.
(v) SS-304 Top Cover Close / Open will be done by pneumatic cylinder .
(vi) Heavy duty Motor with Gear Box (Heli-Bevel) for mixing will be provided.
(vii) Hydraulic Systems for lifting & lowering the mixing tub.
(viii) PLC Control Panel with VFD .
(ix) All outside cover of the mixer will be with SS sheet .
(x) One side heavy duty Helical Gears (for noise free movement).
(xi) Water Jacket will be provided for maintain dough temperature.
