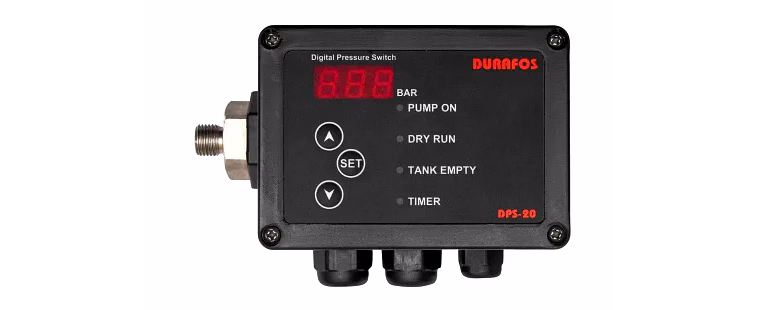

The DPS-20 Digital Pressure Switch is a cutting-edge, integrated pressure control device specifically engineered for industrial and commercial fluid control applications. This all-in-one unit combines a high-accuracy pressure transmitter, a bright 3-digit LED pressure gauge display, and built-in dry run protection to safeguard pumps from operational damage. Designed for seamless integration in pumps, HVAC systems, water transfer units, and process automation, the DPS-20 enhances efficiency and safety by providing precise, real-time pressure monitoring and control. With added advanced features such as float switch connectivity and an adjustable cyclic timer (1–10 hours) for automated water transfer, this pressure switch offers versatile control options to meet diverse operational needs. Its robust IP55-rated enclosure ensures reliable performance in harsh industrial environments, while the device supports pressures from 0 to 9.9 BAR and temperatures up to 99°C. The DPS-20 Digital Pressure Switch is a dependable, intelligent solution for businesses requiring high-performance pressure management in demanding settings.
Key Features
| Features | Description |
|---|---|
| Integrated Pressure Transmitter | High-accuracy pressure measurement for precise control |
| LED Display | Bright 3-digit 7-segment display for real-time pressure data |
| Dry Run Protection | Built-in functionality with float switch connectivity to protect pumps |
| Pressure Range | Operates within 0 to 9.9 BAR |
| Cyclic Timer | Adjustable 1–10 hours timer for automated water transfer cycles |
| Connection Size | 1/4" BSP fitting for easy installation |
| Protection Rating | IP55 rated housing ensures dust and moisture resistance |
| Max Current Load | Supports up to 10 Amps for diverse industrial loads |
| Operating Temperature | Suitable for applications up to 99°C |
| Overload Pressure Capacity | Handles up to 1.5 times rated pressure safely |
| Attributes | Description |
|---|---|
| Model | DPS-20 |
| Pressure Range | 0–9.9 BAR |
| Input Voltage | 230V AC |
| Frequency | 50 Hz |
| Max Current Load | 10 Amp |
| Accuracy | ±0.5% Full Scale |
| Connection Type | 1/4” BSP |
| Temperature Range | Up to 99°C |
| Protection Rating | IP55 |
| Overload Pressure | 1.5x rated pressure |
| Display Type | 3-digit 7-segment LED |
| Dry Run Protection | Integrated with float switch support |
| Cyclic Timer | 1 to 10 hours adjustable |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The DPS-20 includes built-in dry run protection that works with an optional float switch input. This combination detects low or no water conditions to prevent the pump from running dry, thereby avoiding damage.
Yes, the DPS-20 features an adjustable cyclic timer that allows users to set water transfer cycles ranging from 1 to 10 hours to automate flow operations effectively.
Yes, the device is rated to operate reliably in environments up to 99°C, making it suitable for applications involving elevated temperature fluids.
The DPS-20 uses a 1/4” BSP threaded connection for easy installation and compatibility with standard industrial piping.
The IP55 enclosure safeguards the device against dust ingress and water jets, ensuring durability and consistent performance in harsh or moisture-prone industrial settings.
The DPS-20 supports a maximum current load of up to 10 Amps, allowing it to handle various industrial pump and automation loads safely.
Country Of Origin: India
DPS-20 Digital Pressure Switch offers advanced pressure control by integrating a transmitter, gauge, and dry run protection in a single device. Ideal for pumps, HVAC, and industrial automation, this unit enhances operational safety and efficiency with precision control and reliable pressure monitoring.
DPS-20 Digital Pressure Switch – Redefine Pump Control with Intelligent Pressure Management
The DPS-20 is a next-generation electronic pressure switch that combines precision, protection, and performance in a compact and durable unit. Designed for a wide range of industrial and commercial applications, this smart controller integrates three critical components into one device: a pressure transmitter, pressure gauge, and dry run protector.
Whether you're managing booster pumps, HVAC systems, hydraulic machinery, or automated water transfer systems, the DPS-20 offers unparalleled reliability, accuracy, and flexibility. Its intuitive LED display and built-in float switch connectivity make it user-friendly, while the IP55-rated housing ensures it withstands harsh environments.
Key Applications:
Product Features:
Technical Specifications:
Upgrade your pressure management system with the DPS-20 Digital Pressure Switch—a smart, efficient, and reliable solution engineered for modern fluid control systems.
