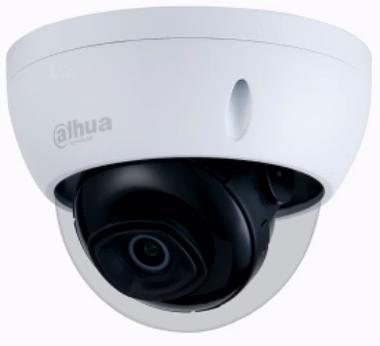

DH-IPC-HDBW2230EP-S-S2 2MP Lite IR Fixed-focal Dome Network Camera

Name: DH-IPC-HDBW2230EP-S-S2 2MP Lite IR Fixed-focal Dome Network Camera
SKU: 6965402
Price: 51.58 USD
Availability: InStock

MRP

Price

Inclusive of all taxes

Add to Cart

Continue to checkout

Send Inquiry

The DH-IPC-HDBW2230EP-S-S2 is a high-performance 2MP Lite IR fixed-focal dome network camera, expertly designed for professional surveillance needs. Equipped with a 1/2.7” progressive CMOS image sensor, it delivers crisp 1920×1080 resolution video at 25/30 frames per second, ensuring high image definition even in low-light conditions with a minimum illumination of 0.005 Lux at F1.6. This robust camera supports advanced video compression using H.265 codec technology with SMART H.264+/H.265+ for ultra-low bit rates, maximizing bandwidth and storage efficiency. Its built-in infrared LEDs provide powerful night vision with a maximum IR distance of 30 meters, ideal for around-the-clock security monitoring. The device boasts an array of intelligent detection features, including intrusion and tripwire detection, as well as abnormality alerts such as motion detection, video tampering, SD card status, network errors, IP conflicts, unauthorized access, and voltage issues. Flexible coding options enable seamless adaptation to varying network environments. Designed for durability and reliability, the camera features IP67 weatherproof and IK10 vandal-resistant ratings, making it suitable for harsh outdoor conditions. It supports power options via 12V DC or Power over Ethernet (PoE), simplifying installation. The camera also includes a slot for up to 256 GB Micro SD card storage to support local recording. Ideal for diverse surveillance applications, including commercial buildings, industrial sites, and public spaces, the DH-IPC-HDBW2230EP-S-S2 offers state-of-the-art technologies in a compact, secure dome housing.

Key Features

Features	Description
Image Sensor	1/2.7” 2 Megapixel Progressive CMOS
Maximum Resolution	1920 × 1080 pixels at 25/30 fps
Video Compression	H.265, SMART H.264+/H.265+, ultra-low bit rate
Infrared Illumination	Built-in 3 IR LEDs with 30m maximum IR distance
Intelligent Detection	Intrusion and tripwire detection
Abnormality Alarms	Motion, tampering, SD card status, network disconnect, IP conflict, illegal access, voltage detection
Storage Support	Up to 256 GB Micro SD card
Power Supply	12V DC or Power over Ethernet (PoE)
Protection Ratings	IP67 weatherproof and IK10 vandal resistant
Low Illumination Performance	0.005 Lux @ F1.6

Attributes	Description
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s to 1/100000 s
Signal to Noise Ratio (S/N)	>56 dB
Illuminator Control	Auto/Manual
Pan/Tilt/Rotation Range	Insufficient Information
RAM	128 MB
ROM	128 MB
Lens Type	Fixed-focal
Lens	Insufficient Information
Operating Temperature	Insufficient Information
Dimensions	Insufficient Information
Weight	Insufficient Information

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Product Reviews

Be the first to write a review

Review this product

Your Rating *Clear

Your Review *

Add an Image

What video compression standards does the DH-IPC-HDBW2230EP-S-S2 support?

The camera supports H.265 and SMART H.264+/H.265+ video compression, allowing for high compression rates and ultra-low bit rates to optimize bandwidth and storage.

Can the camera function in extreme outdoor environments?

Yes, with an IP67 weatherproof rating and IK10 vandal resistance, the camera is suitable for harsh outdoor conditions and vandal-prone areas.

What intelligent detection features does this camera provide?

It offers intrusion and tripwire detection along with abnormality detection such as video tampering, motion detection, and network interference alerts.

Does this camera support local recording, and what is the max storage capacity?

Yes, it supports local recording via a Micro SD card slot with a maximum capacity of 256 GB.

What power supply options are available for this camera installation?

The camera can be powered through traditional 12V DC or via PoE (Power over Ethernet) for easier installation.

Is there any information about the camera lens focal length and field of view?

The product description specifies fixed-focal lens but does not provide exact focal length or field of view details; please refer to the manufacturer for exact specs.

Incorporation Type
GST
GST Registration Date
Number of Employees
Import Export Code (IEC)
Year of Establishment
Nature of Business
GlobalLinker Member Since

2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
Outputs 2MP (1920 × 1080)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
Supports max. 256 GB Micro SD card
12V DC/PoE power supply
IP67, IK10 protection

2MP Lite IR Fixed-focal Dome Network Camera

Camera

Image Sensor

1/2.7” 2Megapixel progressive CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 Lux @ F1.6

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–65°

Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm:
Horizontal 110.0° × Vertical 59.0° × Diagonal: 132.0°
3.6 mm:
Horizontal 91.0° × Vertical 48.0° × Diagonal:109.0°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 1.1 m (3.61 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

37.3 m

(122.38 ft)

14.9 m

(48.88 ft)

7.5 m

(24.61 ft)

3.7 m

(12.14 ft)

3.6 mm

53.3 m

(174.87 ft)

21.3 m

(69.88 ft)

10.7 m

(35.10 ft)

5.3 m

(17.39 ft)

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

1920 × 1080 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25fps)

704 × 480 (1 fps-30fps)

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

Storage

FTP; Micro SD card (support max. 256 G); NAS; SFTP

Browser

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection

IP67, IK10

Structure

Casing

Metal

Dimensions

81 mm × Φ109.9 mm (3.19" × Φ4.33")

Net Weight

0.350 kg (0.77 lb)

Gross Weight

0.481 kg (1.06 lb)
