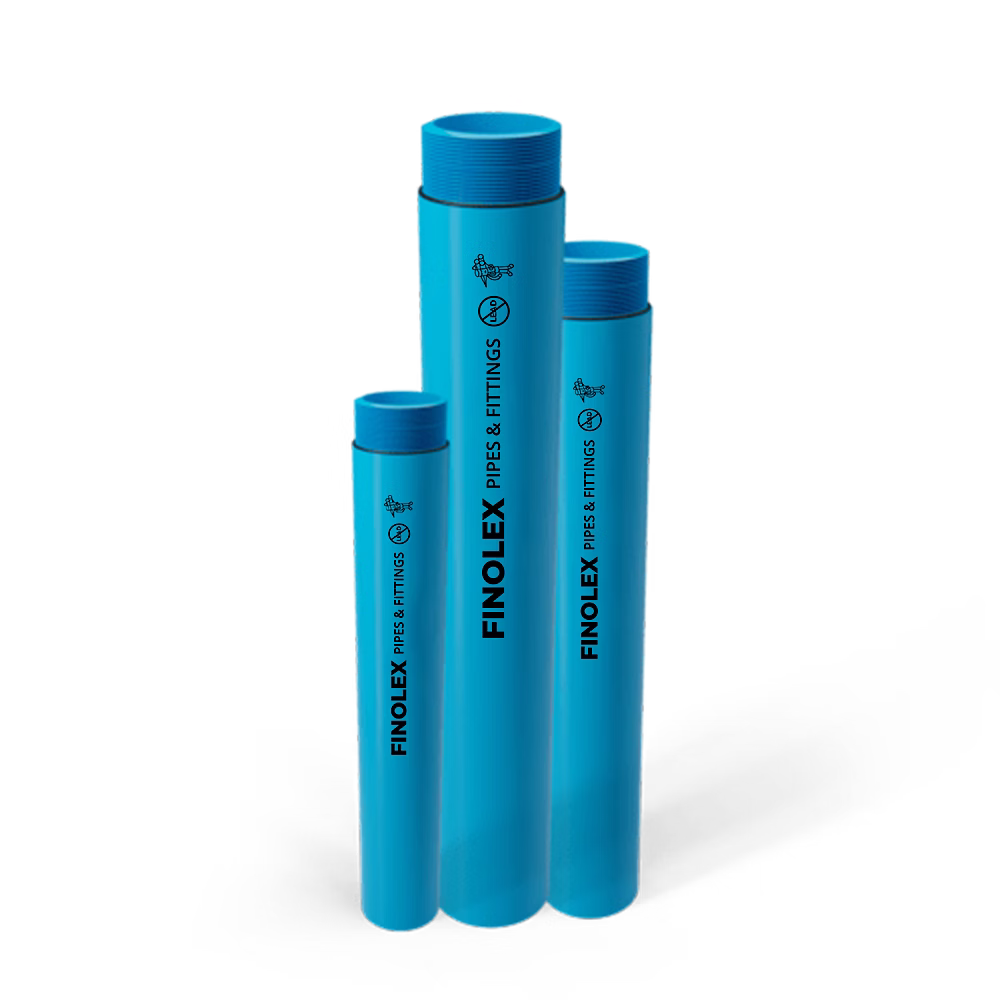

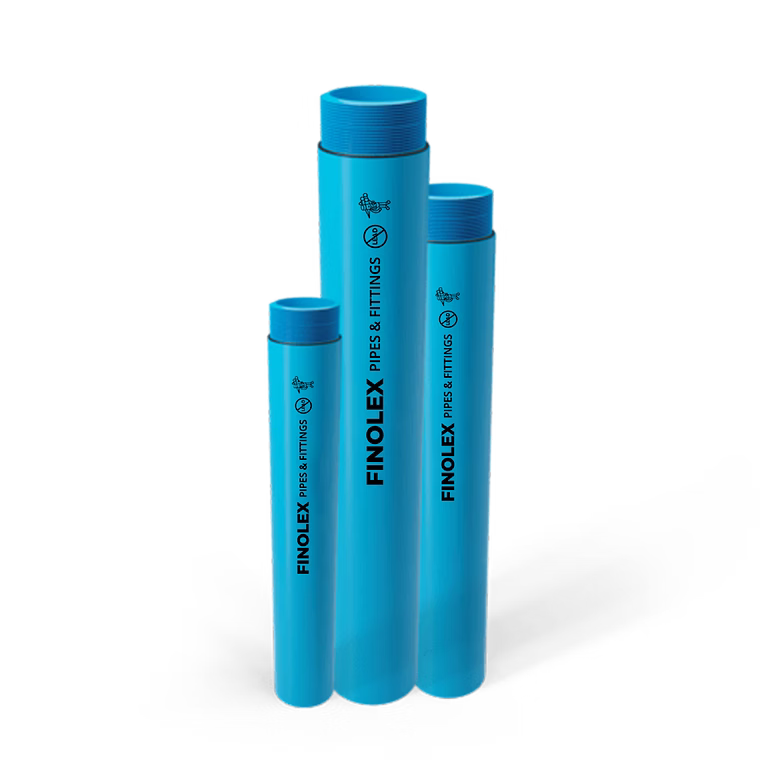

Dark Blue ASTM Casing Pipe (Agriculture Products)

Brand: finolex

Inclusive of all taxes

The Dark Blue ASTM Casing Pipe by Finolex, available through Surprise Sanitation Pvt Ltd, is engineered specifically for agricultural applications requiring reliable and durable water transportation solutions. Manufactured from a high-grade PVC-U compound, these casing pipes provide exceptional resistance to hard, salty, sandy, or chemically aggressive water conditions commonly found in bore wells. They ensure the delivery of clean and clear water from shallow, medium, or deep bore wells, optimizing irrigation and water management in agriculture. Conforming strictly to ASTM D 1785 standards, these pipes offer consistent dimensional accuracy and robust performance. Available in Schedule 40 and Schedule 80 thicknesses with a variety of nominal diameters from 1.5 inches to 5 inches, these pipes also feature V-thread connections for secure assembly. Their strong wall thickness and standard pipe lengths up to 6 meters make them an excellent choice for long-lasting agricultural casing pipe installations.

Key Features

Features Description
Material High-quality PVC-U compound resistant to harsh water conditions
Standard Compliance ASTM D 1785 certified
Nominal Diameter Range 1.5" to 5" (40mm to 125mm)
Wall Thickness Depends on Schedule 40 or 80; ranges from 3.68mm up to 10.66mm
Pipe Length Standard lengths of 5 to 6 meters
Applications Ideal for clean water transportation from shallow to deep bore wells in agriculture
Thread Type V-thread for secure pipe connections
Resistance Properties Withstands salty, sandy, and chemically aggressive water
Color Dark Blue indicating ASTM standard pipe
Attributes Description
Material Code 3108 to 3114 depending on diameter and schedule
Schedule Types Schedule 40 and Schedule 80
Nominal Diameter (DN) 40, 50, 80, 100, 125 mm
Mean Outside Diameter Ranges vary from 48.11 to 141.55 mm
Wall Thickness Range 3.68 mm to 10.66 mm
Standard Pipe Length 5 to 6 meters
Thread Type V Thread available on select sizes
Compliance Standard ASTM D 1785

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

Yes, these pipes are manufactured with a special PVC-U compound that resists hard, salty, sandy, and chemically aggressive water, making them suitable for most bore well water conditions.

The pipes are available in Schedule 40 and Schedule 80 with wall thicknesses ranging from 3.68 mm up to 10.66 mm depending on the nominal diameter.

Yes, select sizes come with V-thread connections which ensure secure and leak-proof assemblies.

Standard pipe lengths are generally 5 to 6 meters as per ASTM specifications.

Absolutely, the pipes are designed to deliver clean water from shallow to deep bore wells, making them ideal for agricultural irrigation setups.

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Brand: finolex

Country Of Origin: India

Finolex offers a wide range of casing and ribbed screen pipes which are manufactured using a special PVC-U compound. This makes them ideal for transportation of hard, salty, sandy, or chemically aggressive water. This range of PVC-U plain casing and ribbed screen pipes are specially designed to ensure clean, clear water from bore well, whether shallow, medium or deep. ASTM blue casing pipes are manufactured as per ASTM D 1785

DIMENSIONS

DIMENSIONS OF 'ASTM' BLUE CASING PIPES
As per ASTM D 1785 Sch.40
Nominal Diameter (DN) Mean Outside Diameter of Pipe (mm) Wall Thickness ‘S’ (mm) Material
Code
Std.
Pipe Length
mm inch Min Max. Min. Max   meter
40 1.1/2" 48.11 48.41 3.68 4.19 3108 6
50 2" 60.17 60.47 3.91 4.42 3109 6
80 3" 88.70 89.10 5.49 6.15 3110 6
100 4" 114.07 114.53 6.02 6.73 3111 6
125 5" 141.05 141.55 6.55 7.34 3112 5

DIMENSIONS OF 'ASTM' BLUE CASING PIPES
As per ASTM D 1785 Sch.80
Nominal Diameter (DN) Mean Outside Diameter of Pipe (mm) Wall Thickness ‘S’ (mm) Material
Code
Std.
Pipe Length
mm inch Min Max. Min. Max   meter
125 5" 141.05 141.55 9.52 10.66 3113 5

DIMENSIONS OF 'ASTM' BLUE CASING PIPES
V Thread CM
Nominal Diameter (DN) Mean Outside Diameter of Pipe (mm) Wall Thickness ‘S’ (mm) Material
Code
Std.
Pipe Length
mm inch Min Max. Min. Max   meter
100 4" 113.00 113.3 5.00 5.70 3114 6
