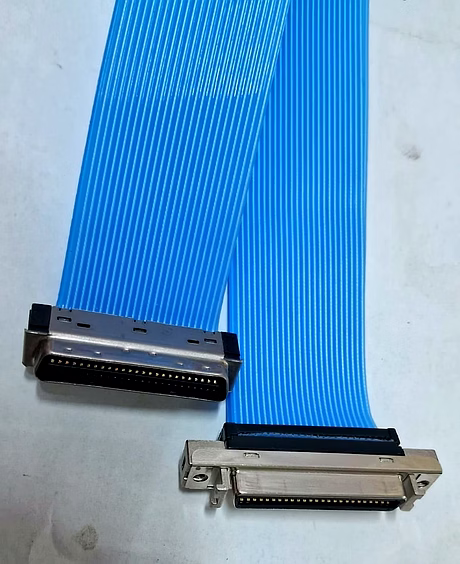

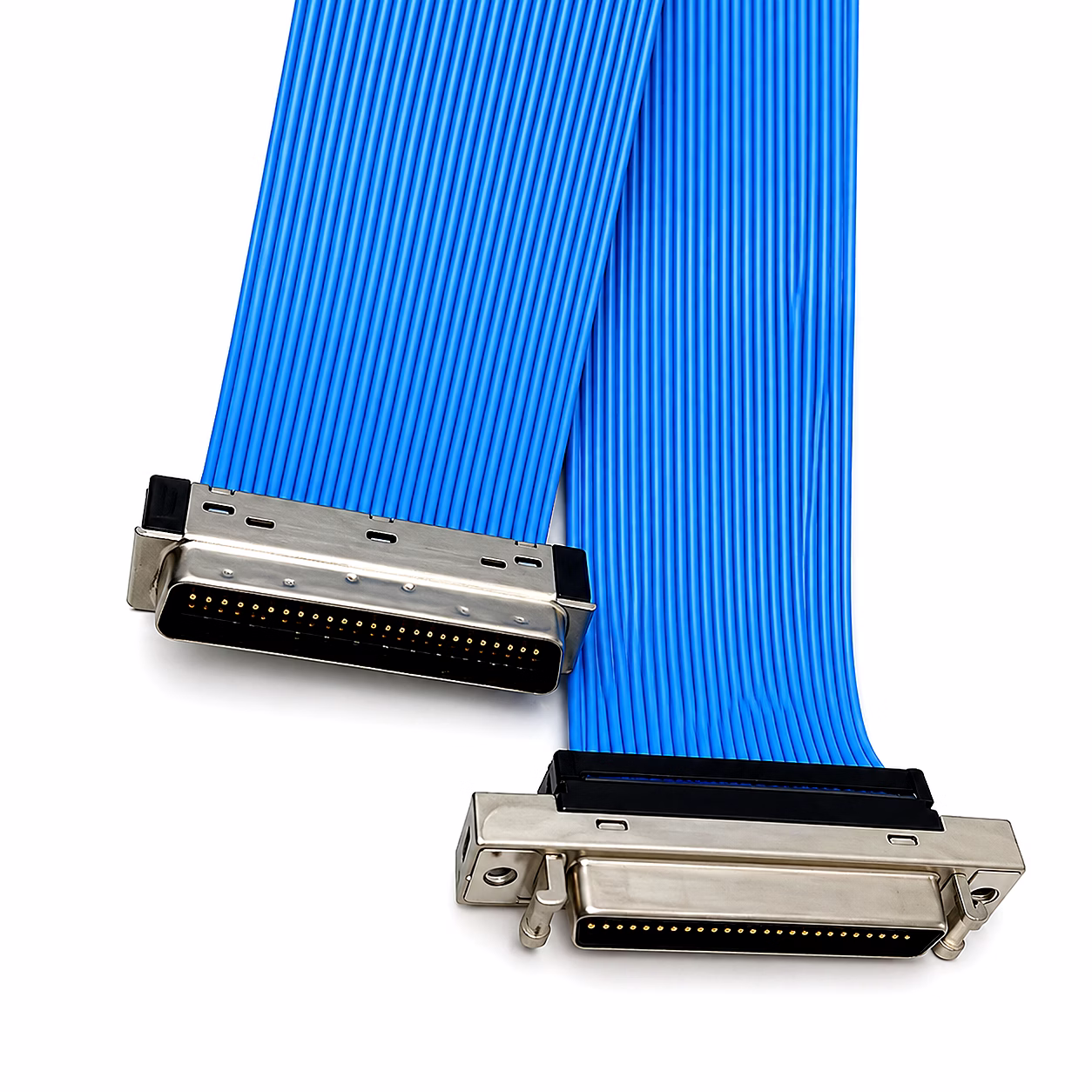

The D-Sub - MDR Connector Assembly by RFNT SOLUTION PRIVATE LIMITED is a versatile and reliable solution designed specifically for industrial and automation applications requiring secure, high-density connections. This product features a range of D-Sub connector types including DB9, DB15, DB25, HD15, and HD26 in both male and female configurations with options for crimp or solder cup termination. These connectors include a metal or plastic backshell with screw locks that ensure reliable and secure mating, essential in demanding environments. The MDR connector offers high-density ribbon-style connections with common pin counts of 14, 20, 26, 36, and 50, equipped with latch or clip locking mechanisms for enhanced durability and vibration resistance. This assembly supports shielded multi-core or twisted pair cables with foil or braided shielding plus drain wires, providing superior EMI protection and signal integrity. Precision crimp or solder termination guarantees consistent electrical performance, making it ideal for use with servo drives, PLC I/O modules, CNC machines, industrial automation systems, test and measurement instruments, robotics, and capital machinery. Each unit is built to withstand harsh operational conditions, making this D-Sub - MDR connector assembly an optimal choice for businesses looking for efficient, compact, and rugged connection solutions in industrial and automation sectors.
Key Features
| Features | Description |
|---|---|
| Connector Types | DB9, DB15, DB25, HD15, HD26 Male/Female |
| Termination Options | Crimp or Solder Cup |
| Backshell Material | Metal or Plastic with Screw Lock |
| MDR Connector Pin Counts | 14, 20, 26, 36, 50 pins |
| Locking Mechanism | Latch / Clip Locking for secure connection |
| Cable Compatibility | Shielded Multi-core or Twisted Pair |
| Shielding Type | Foil/Braid with Drain Wire |
| Application Areas | Servo Drives, PLC I/O, CNC Machines, Industrial Automation |
| Vibration Resistance | High - suitable for rugged environments |
| Assembly Precision | Precision Crimp or Solder Termination |
| Attributes | Description |
|---|---|
| Connector Standard | D-Sub and MDR |
| Connector Gender | Male or Female |
| Pin Count Range | 14 to 50 Pins |
| Termination | Crimp / Solder Cup |
| Backing Shell Type | Metal or Plastic with Screw Lock |
| Cable Type | Shielded Multi-core or Twisted Pair |
| Shielding | Foil or Braided with Drain Wire |
| Locking Mechanism | Screw Lock (D-Sub) / Latch or Clip Lock (MDR) |
| Environmental Resistance | Vibration resistant |
| Applications | Servo drives, PLC I/O, CNC, Industrial Automation, Robotics |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The MDR connector assembly is available with common pin counts of 14, 20, 26, 36, and 50 pins.
Yes, it is designed with vibration resistance and screw/latch locking mechanisms suitable for rugged applications such as servo drives and industrial automation systems.
This assembly supports precision crimp or solder cup termination to ensure reliable electrical connections.
Yes, it supports shielded cables with foil or braided shielding plus a drain wire for superior EMI protection.
Yes, the assembly includes both male and female connectors in various D-Sub types.
Brand: rfnt
Country Of Origin: India
D-sub - MDR Connector Assy from RFNT is specified for industrial automation systems, with available details focused on the product format, stated configurations, and ordering points buyers typically confirm before approval
Overview
D-sub - MDR Connector Assy from RFNT is specified for industrial automation systems, with available details focused on the product format, stated configurations, and ordering points buyers typically confirm before approval
Configuration Details
D-Sub - MDR connector Assy is described with details such as d-sub connector, plus with metal / plastic backshell. These points help buyers compare construction style, connection method, and assembly layout against the intended build
Stated Attributes
Stated attributes include with metal / plastic backshell and common pin counts: 14, 20, 26, 36, 50. Where ratings, dimensions, or counts affect fit, confirm the exact requirement before production or replacement planning
Selection Guidance
The provided product text references use contexts such as industrial automation systems. Buyers can use these references to align the assembly with documented equipment or harness requirements
Ordering Notes
For purchasing control, confirm connector make, part version, cable length, wire size, and any protection or labeling requirement that applies to your build. That review is especially important where the listing states customization, multiple makes, or buyer-specific configuration
