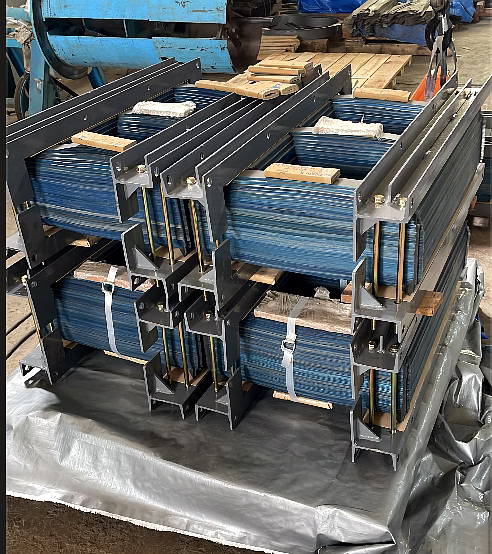

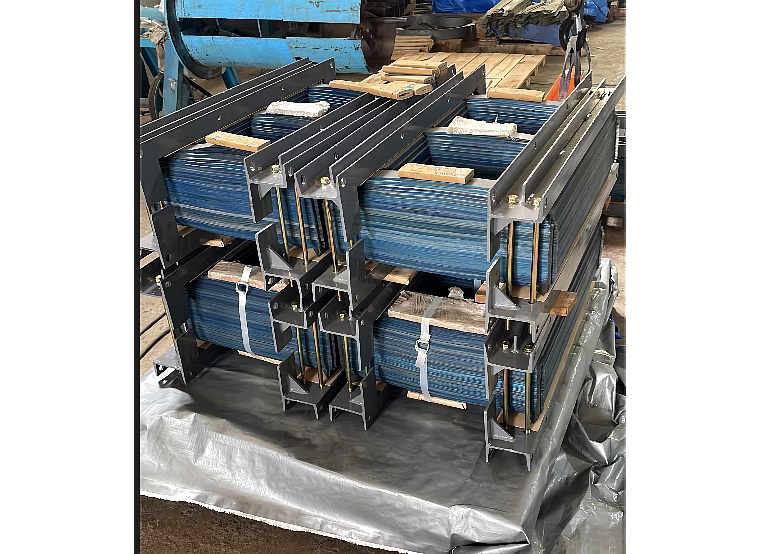

CRGO Built Core is a specialized electrical steel product designed for high-efficiency magnetic circuits. Manufactured from Cold Rolled Grain Oriented (CRGO) silicon steel, these built-up cores are used predominantly in transformers, reactors, and other electrical devices where optimal magnetic performance is critical. The core is fabricated by assembling CRGO laminations or slit coils meticulously to reduce eddy current losses and improve magnetic permeability. Ideal for industrial applications, CRGO Built Core ensures enhanced energy efficiency, reduced noise, and superior thermal performance, critical for power transformers and electrical machinery manufacturing.
Key Features
| Features | Description |
|---|---|
| Material Type | Cold Rolled Grain Oriented (CRGO) Silicon Steel |
| Core Construction | Built-up core assembled from CRGO laminations and slit coils |
| Magnetic Properties | High magnetic permeability with low core loss |
| Applications | Power transformers, reactors, electrical machines |
| Energy Efficiency | Optimized to minimize eddy current loss and hysteresis loss |
| Thermal Performance | Enhanced heat dissipation to avoid overheating |
| Noise Reduction | Designed to reduce magnetostriction and mechanical noise |
| Dimensions | Customizable based on client requirements |
| Surface Treatment | Insulated lamination coatings to prevent short circuits |
| Compliance | Manufactured in accordance with industry electrical steel standards |
| Attributes | Description |
|---|---|
| Material Grade | CRGO Electrical Steel |
| Thickness Range | Typically 0.23 mm to 0.35 mm |
| Width Options | Customized width as per order |
| Core Type | Built-up laminated core |
| Loss Characteristics | Low core loss for energy-efficient performance |
| Operating Temperature | Up to 120°C under standard operating conditions |
| Electrical Resistivity | High to reduce eddy currents |
| Surface Coating | Insulating varnish or oxide film coating |
| Packing | Packed to prevent moisture and mechanical damage during transit |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The CRGO Built Core laminations typically come in thickness ranges from 0.23 mm to 0.35 mm, customizable as per customer needs.
By utilizing grain oriented silicon steel laminations assembled precisely, it minimizes core losses such as eddy current and hysteresis losses, enhancing transformer efficiency and reducing operational noise.
Yes, the width, length, and overall core design can be customized according to client requirements and application specifics.
The laminations receive insulating varnish or oxide film coatings to electrically insulate each lamination, preventing short circuits and reducing losses.
CRGO Built Core is designed to operate efficiently up to 120°C under standard conditions, making it suitable for most electrical transformer applications.
CRGO SLIT COILS, LAMINATIONS, BUILT-UP CORES etc
