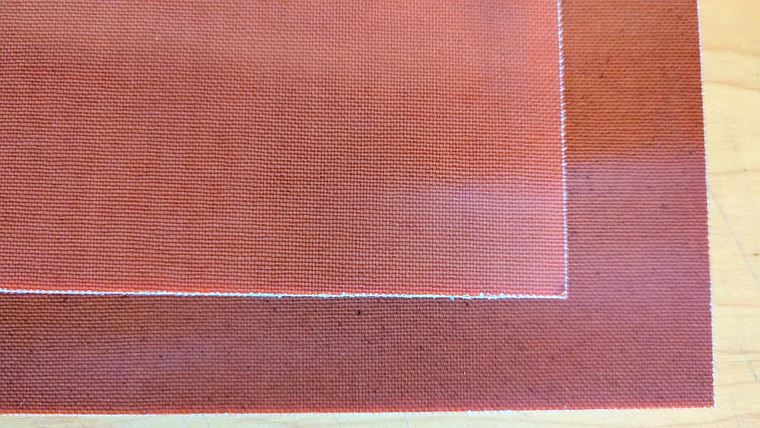

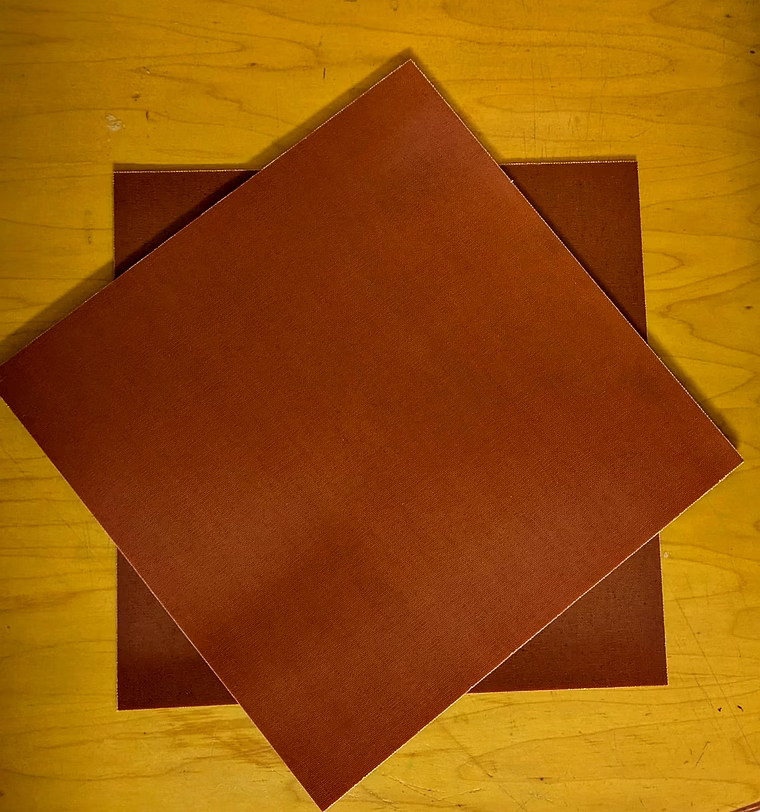

The Cotton Phenolic Laminate Sheet is a high-performance material designed for various industrial applications requiring mechanical strength and electrical insulation. Made from multiple layers of cotton fabric impregnated with specially formulated phenolic or melamine resins, these laminate sheets are bonded under heat and pressure to create a robust thermoset composite. Available in an extensive range of sizes and thicknesses, including sheets, rods, tubes, and customized components, this laminate provides superior mechanical properties, excellent dimensional stability, and outstanding electrical insulation. It complies with IS and NEMA standards, ensuring that it meets the highest quality requirements for various industrial applications. Whether you need materials for electrical insulation, machinery parts, or custom fabrication, our Cotton Phenolic Laminate Sheets offer unmatched quality and durability.
Key Features
| Features | Description |
|---|---|
| Maximum Sheet Size | 1220 x 2440 mm |
| Sheet Thickness Range | 0.5 - 100 mm |
| Rod Maximum Size | 1000 mm with 6-250 mm OD |
| Tube Maximum Size | 1200 mm with ID thickness of 25-350 mm |
| Component Manufacturing | Custom-made as per drawings and specifications |
| Material Composition | Cotton fabric impregnated with phenolic/melamine resins |
| Grades Available | F1, F2, F3, F4, F5 (C, CE, L, LE) |
| Standards Compliance | Manufactured as per IS & NEMA Standards |
| Electrical Insulation | Superior electrical insulation properties |
| Mechanical Strength | High mechanical strength and durability |
| Attributes | Description |
|---|---|
| Material Type | Thermoset composite (Cotton Phenolic Laminate) |
| Color | Natural |
| Thermal Stability | Excellent thermal resistance |
| Fire Resistance | Self-extinguishing properties |
| Weight | Variability depending on size and thickness |
| Moisture Absorption | Low moisture absorption rate |
| Chemical Resistance | Resistant to many chemicals and solvents |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Cotton Phenolic Laminate Sheets are widely used in electrical insulation, machinery components, industrial tooling, and custom fabrication based on specific requirements.
Yes, we offer customized sizes and components as per your drawings and specifications.
The sheets are available in grades F1, F2, F3, F4, and F5, complying with IS and NEMA standards.
These sheets offer superior mechanical strength, excellent electrical insulation properties, low moisture absorption, and resistance to various chemicals and thermal stability.
Yes, they possess self-extinguishing properties, making them suitable for various safety-sensitive applications.
Country Of Origin: India
Sheet: Maximum Size of 1220 x 2440mm & Thickness from 0.5-100 mm.
Rod: Maximum Size of 1000 mm with 6-250 mm OD Thickness available.
Tube: Max Size 1200 mm with ID thickness of 25-350 mm available
Components: As per drawings and Specifications.
Cotton Fiber Laminate sheets are made from layers of Cotton fabric impregnated with
specifically formulated phenolic/melamine resins, and bonded together under heat and
pressure to produce a thermoset composite.
Offers superior mechanical and electrical properties.
Sheets, Rods, Tubes, and Components are available in multiple sizes and thicknesses.
Grades: F1, F2, F3, F4, F5 (C, CE, L, LE) (As per IS & NEMA Standards).
High quality of cotton fabric is used to manufacture the material to ensure seamless and fine quality material.
