KVN Steels is a reputed manufacturer, exporter, and supplier of high-quality Copper Nickel Alloy Sheets & Plates, specifically offering durable and versatile Copper Nickel 70/30 & 90/10 variants. Our Copper Nickel Sheets & Plates are produced using premium-quality copper, ensuring top-notch corrosion resistance, excellent tensile strength, and high flexibility. These products come in various forms including rolls, coils, foils, plain sheets, chequered plates, and shim sheets, catering to diverse industrial applications. Customized shapes, sizes, thicknesses, and finishes ensure that each client can find a solution tailored to their unique specifications. Ideal for use in industries such as chemical, pharmaceutical, power plants, and seawater piping, our Copper Nickel Sheets & Plates are indispensable for a range of critical applications, offering unparalleled performance and longevity even in harsh environments.
Key Features
| Features | Description |
|---|---|
| Material Composition | Copper Nickel 70/30 & 90/10 Alloy |
| Corrosion Resistance | High resistance to seawater corrosion, ideal for marine applications |
| Versatile Forms | Available in coils, foils, rolls, chequered plates, shim sheets and more |
| Customization Options | Customizable in sizes, lengths, thicknesses, and surface finishes |
| Industry Applications | Used in chemical, pharmaceutical, power, sugar mills, and cement industries |
| Mechanical Properties | High tensile strength, excellent flexibility, and rigidity |
| Surface Finishes | Available in hot rolled, cold rolled, 2B, mirror, embossed, and more |
| Standards Compliance | Manufactured under ASTM B151 / ASME SB151 specifications |
| Attributes | Description |
|---|---|
| Material | Copper Nickel Alloy (Cu-Ni 70/30 & 90/10) |
| Width Options | 1000mm, 1219mm, 1500mm, 1800mm, 2500mm, 3000mm, 3500mm |
| Length Options | 70/300mm, 2440mm, 3000mm, 5800mm, 6000mm |
| Thickness Range | 0.3 mm to 120 mm |
| Form Variants | Coils, Foils, Rolls, Plain Sheets, Shim Sheets, Perforated Sheets, Chequered Plates |
| Surface Finish Types | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, NO.4, mirror, satin, and more |
| Equivalent Grades for 70/30 | C71500, WNR 2.0882 |
| Equivalent Grades for 90/10 | C70600, WNR 2.0872 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Copper Nickel Sheets & Plates are extensively used in various industries including marine, chemical processing, pharmaceuticals, power generation, sugar mills, pulp and paper industries, and construction.
Yes, our Copper Nickel Sheets & Plates can be customized in terms of size, thickness, form, and surface finish to meet specific customer requirements.
The 70/30 and 90/10 compositions refer to the ratio of copper to nickel, which significantly affects the mechanical properties, corrosion resistance, and applications of the alloy.
Copper Nickel Plates are available in various surface finishes such as hot rolled, cold rolled, 2B, NO. 4, mirror finish, chequered, and more, catering to different aesthetic and functional requirements.
Copper Nickel Alloys exhibit high corrosion resistance, excellent tensile strength, good mechanical and magnetic properties, making them ideal for various applications.
Brand: kvn
Country Of Origin: India

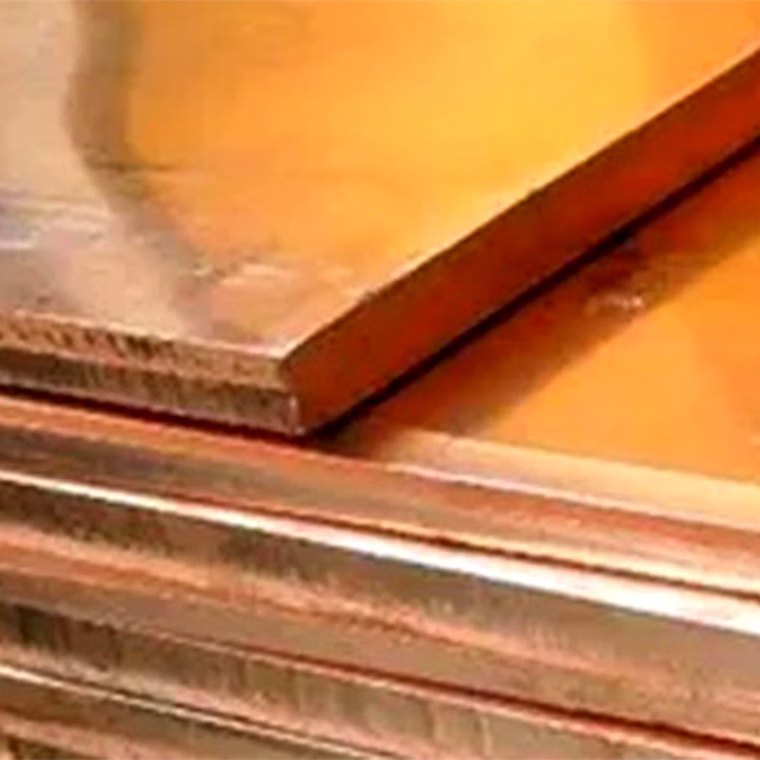

Copper Nickel Sheets & Plates are manufactured using premium quality copper. These sheets and plates comes in various shapes, sizes, length and thickness. Further they can also be molded according to the needs and demand of the customers. They come in different forms like rolls, coils, foils, ring (flange), perforated sheets, chequered plates, shim sheets and plain sheets. They have different length like double random, single random and cut length. They also vary in finishing like some sheets and plates have hot rolled finishing, some have cold rotted finishing etc. they also comes in different hardness types like soft, hard, half hard, quarter hard, spring hard, etc.
Cupro Nickel 70/30 Sheets and Plates
Cupro Nickel Alloy 70/30 Perforated Sheets, Cu-Ni Alloy 70 / 30 CR Sheets, 70 / 30 Copper Nickel #4 Finish Plates, Copper Nickel Alloy ASTM B151 70 / 30 Plates, 70 / 30 Copper Nickel Chequered Plates Stockists, ASTM B151 Cu-Ni 70 / 30 Sheets Exporter, ASTM B151 Copper Nickel 70/30 Coils Supplier, Cu-Ni 70 / 30 Shim Sheets, Copper Nickel Alloy 70 / 30 Hot Rolled Plates, Cu-Ni 70/30 Sheets and Plates Manufacturer in India.
70/30 Cupro Nickel Sheets and Plates Equivalent Grades
| STANDARD | UNS | WNR. | EN | AFNOR |
| Cupro Nickel 70/30 | C71500 | 2.0882 | NiCr20CuMo | Z2NCUD31-20AZ |
90/10 Cupro Nickel Sheets and Plates Equivalent Grades
| STANDARD | UNS | WNR. | EN | AFNOR |
| Cupro Nickel 90/10 | C70600 | 2.0872 | NiCr20CuMo | Z2NCUD31-20AZ |
The sheets are used in condensers, power plants, seawater piping and exchanger shells. The plates are used in flexible metal hose, weld wires, boiler parts and welding backing rings. These sheets and plates are also used in various industries like chemical industries, pharmaceuticals, power industry, sugar mills, pulp and paper industry, and cement industry.
Due to high corrosion resistance, excellent tensile strength and flexibility theCopper Nickel Sheets & Platesare highly in demand. These sheets and plates also have properties like anti corrosive, high thermal and electrical conductivity. They also have good mechanical and magnetic properties. The sheets are rigid in nature and also have cost viability.
Specification of Cupro Nickel Sheets and Plates:
Cupro Nickel Sheets and Plates Specification :ASTM B151 / ASME SB151
Dimension Standard :JIS, AISI, ASTM, GB, DIN, EN, etc
Width :1000mm, 1219mm, 1500mm, 1800mm, 70 / 300mm, 2500mm, 3000mm, 3500mm, etc
Length :70 / 300mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness :0.3 mm to 120 mm
Form :Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing :Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
