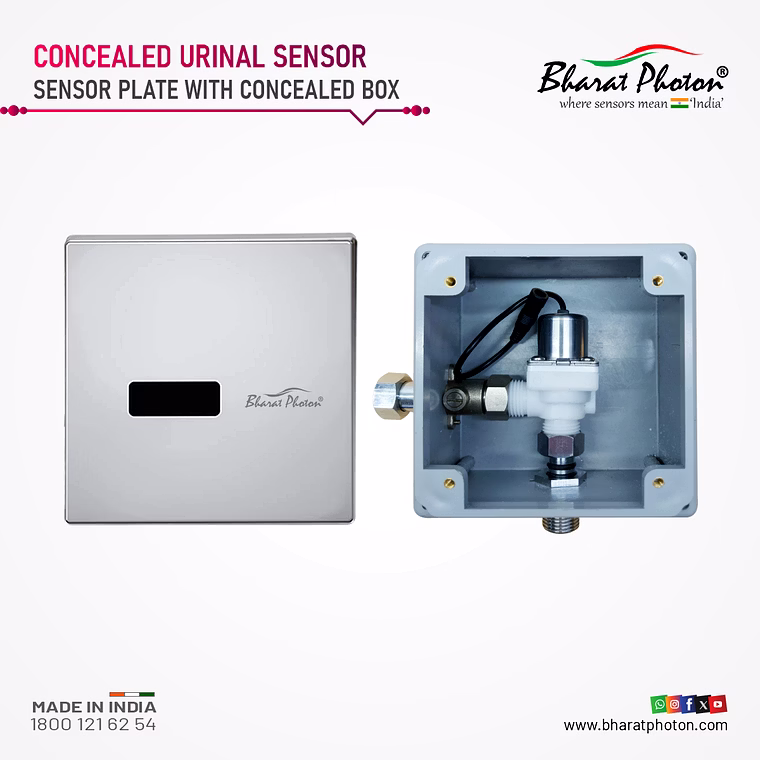

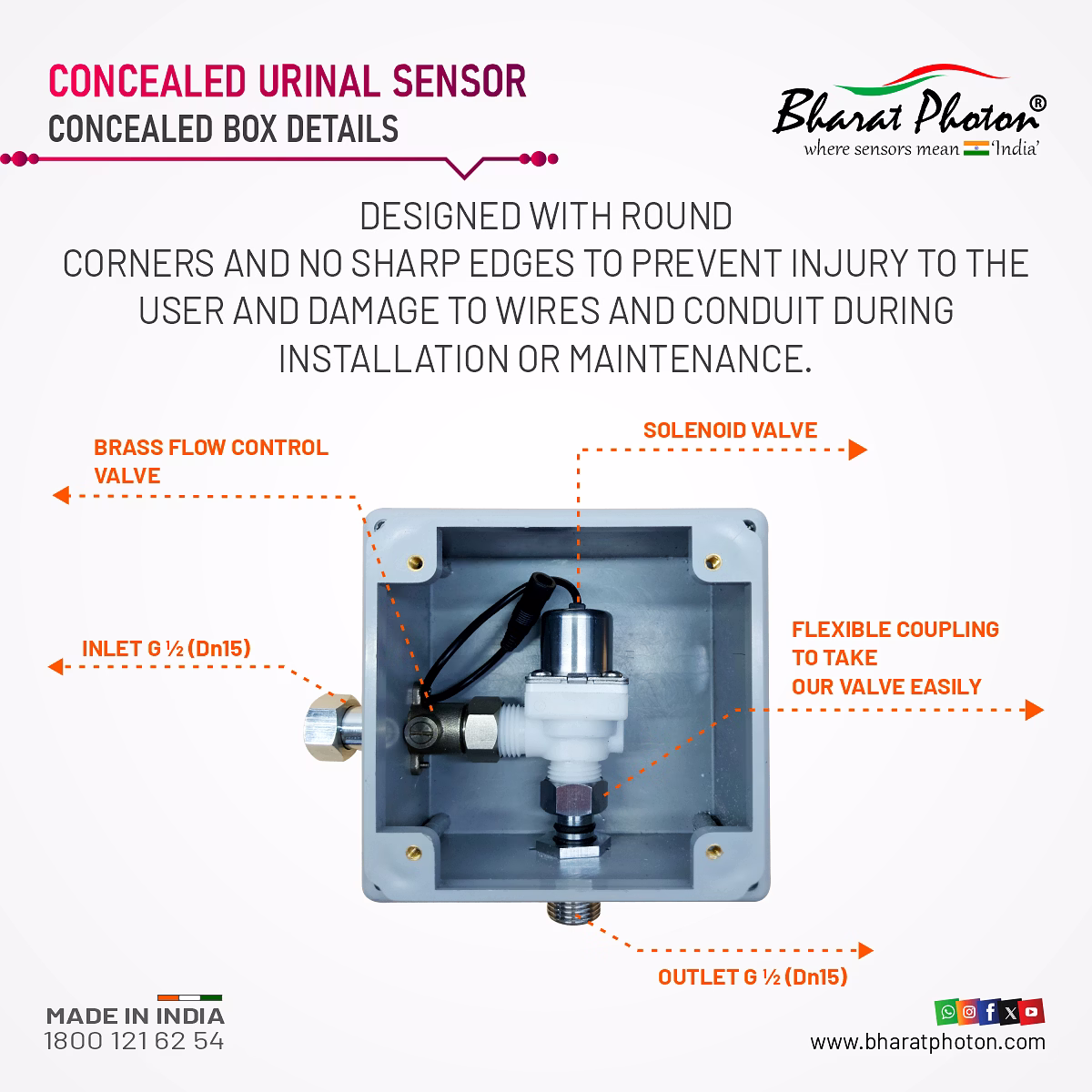

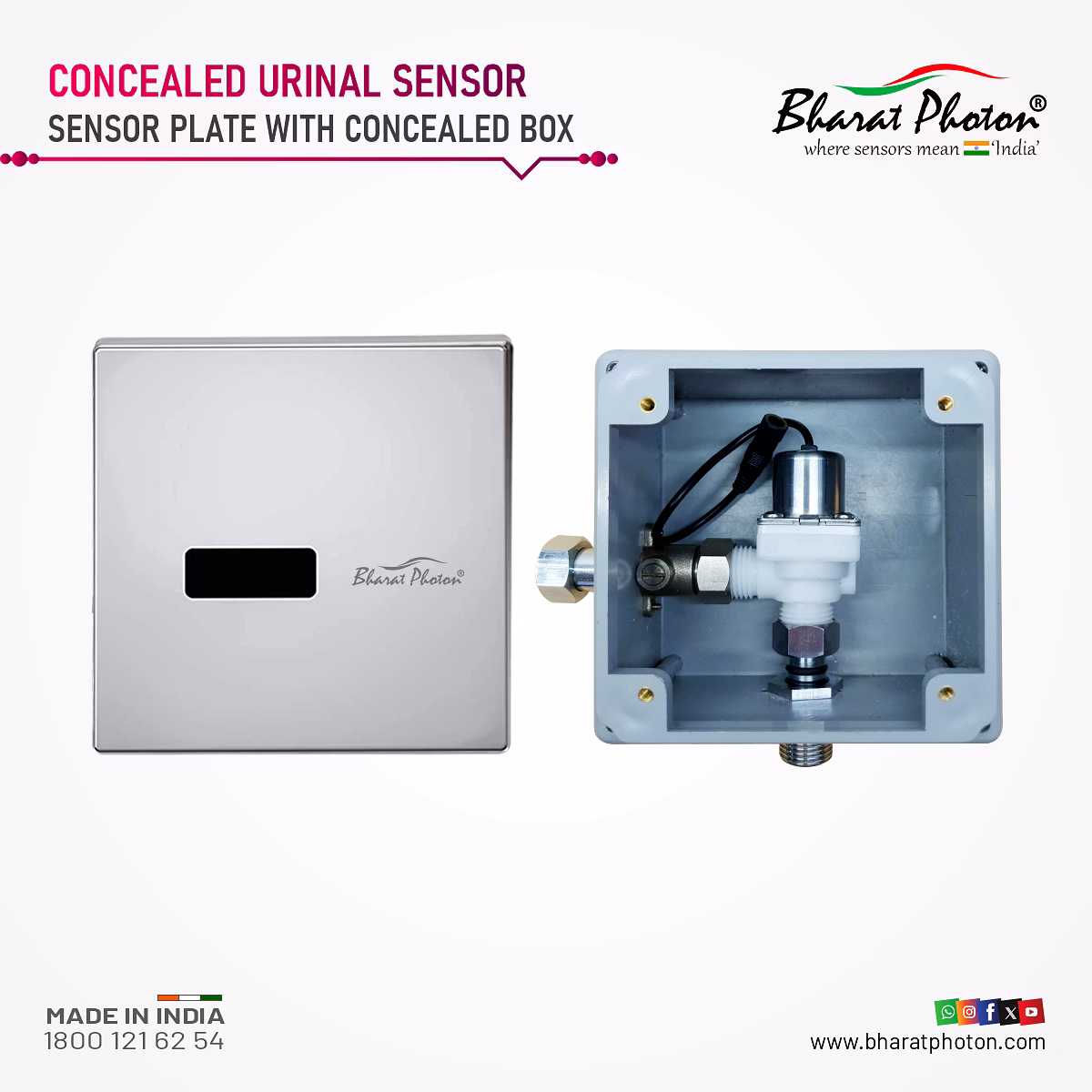

The Concealed Urinal Flusher is a premium battery-operated device designed for efficient, hygienic flushing of urinals in commercial and public restroom settings. Operating on a 6V DC power supply using 4 AA-sized alkaline batteries, it features an urbane, sleek satin finish sensor plate made from high-quality ABS material, ensuring durability and aesthetics. The device offers an adjustable sensing range of up to 500mm, allowing accurate automatic flush activation upon detecting user presence. The flushing cycle lasts for 8 seconds after triggering, optimizing water use and maintaining cleanliness. It works efficiently within a water pressure range of 0.02Mpa to 0.8Mpa and comes with standard G1/2” (Dn15) inlet and outlet connections for easy installation. The concealed box is crafted from ABS material, housing a robust Pom 'L' type solenoid valve equipped with a brass flow control for precise water flow management. Ideal for commercial buildings, hotels, offices, and public facilities seeking a combination of advanced sensor technology and refined design aesthetics, this Concealed Urinal Flusher enhances restroom hygiene and water conservation.
Key Features
| Features | Description |
|---|---|
| Power Source | 6V DC (4x AA Alkaline Batteries) |
| Sensor Plate Finish | ABS Satin Finish, Urbane Look |
| Sensing Range | Adjustable up to 500mm |
| Flush Duration | 8 Seconds Post-Flush |
| Working Water Pressure | 0.02 Mpa to 0.8 Mpa |
| Inlet/Outlet Size | G1/2” (Dn15) Standard |
| Material - Front Plate | ABS with Satin Finish |
| Material - Concealed Box | ABS |
| Solenoid Valve Type | PoM Solenoid Valve ‘L’ type with Brass Flow Control |
| Installation Type | Concealed Wall-Mounted |
| Attributes | Description |
|---|---|
| Power Type | Battery Operated |
| Voltage | 6V DC |
| Battery Type | AA Alkaline, 4 units |
| Sensor Type | Infrared (IR) Proximity Sensor |
| Flush Time | 8 Seconds |
| Sensing Distance | Up to 500mm Adjustable |
| Water Pressure Range | 0.02 - 0.8 Mpa |
| Inlet / Outlet Connection Size | G1/2" (Dn15) |
| Material Front Plate | ABS Satin Finish |
| Material Concealed Box | ABS Plastic |
| Valve Material | Polyoxymethylene (PoM) and Brass Flow Control |
| Mounting Type | Concealed (In-wall Mounting) |
| Finish | Satin |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The sensing range is adjustable up to 500mm to accommodate different stall sizes and user positions.
It operates on a 6V DC power supply provided by 4 AA size alkaline batteries.
It supports a working water pressure ranging from 0.02 Mpa to 0.8 Mpa.
The sensor plate has an ABS satin finish, and the concealed box is made of durable ABS plastic.
Yes, it features a brass flow control integrated with the PoM ‘L’ type solenoid valve for precise water flow regulation.
Yes, it is designed for concealed in-wall mounting to maintain a pristine restroom appearance.
Brand: bharat photon
Country Of Origin: India
Battery Operated Concealed Urinal Flusher
6V DC - 4X AA Size Alkaline
Premium model with one of its kind aesthetic
Urbane look ‘Satin Finish’ sensor plate
Sensing Range : 500mm (Adjustable)
with Brass ow control
