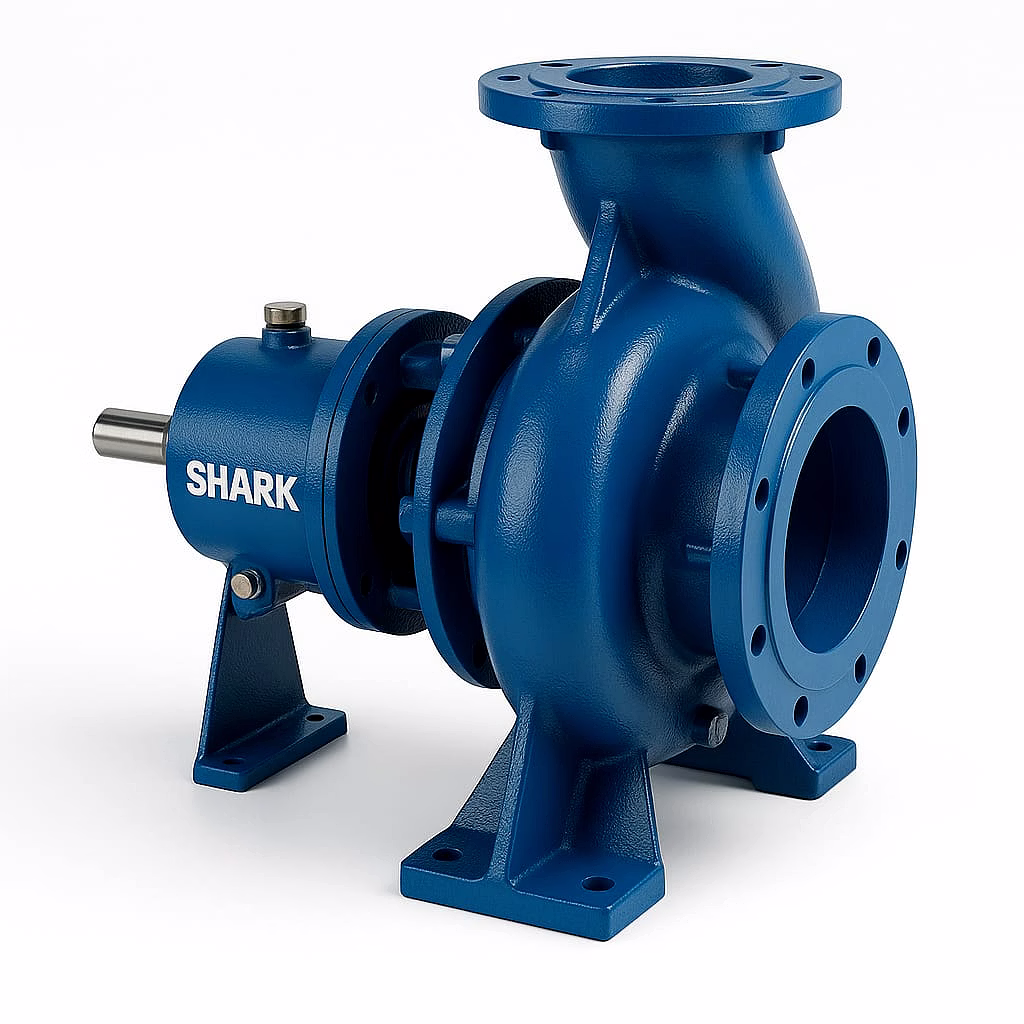

The SHCPP Series Centrifugal Process Pumps by Shark Pump Engineering Pvt. Ltd. feature a single-stage, end suction, back pull-out design tailored for optimal industrial performance and reliability. Engineered with precision and advanced hydraulic technology, these pumps deliver high efficiency and durability in handling a broad spectrum of fluids including clear, viscous, and corrosive liquids. With a wide capacity range up to 2200 m³/hr and heads reaching 150 meters, these pumps cater to diverse process applications from petrochemical to marine and environmental engineering. Constructed with multiple metallurgy options such as Cast Iron, Stainless Steel variants (304, 316, 316L), Bronze, Alloy-20, CD4MCU, and Hastelloy alloys, the SHCPP series ensures compatibility with high-temperature fluids up to 350°C and pressures up to 15 kg/cm². The back pull-out design simplifies maintenance by allowing easy removal of rotating components without disturbing the pipework. This feature, along with high hydraulic efficiency and low vibration operation, makes the SHCPP series ideal for industries requiring robust, energy-saving, and corrosion-resistant pumping solutions. Suitable for applications including water circulation, chemical processing, hydrocarbon handling, and more, these pumps are versatile and reliable assets for demanding environments.
Key Features
| Features | Description |
|---|---|
| Pump Type | Single stage, end suction, back pull-out centrifugal process pump |
| Hydraulic Design | High-efficiency impeller with minimum vibration |
| Material Options | Cast Iron, Stainless Steel (304, 316, 316L), Bronze, Alloy-20, CD4MCU, Hast Alloy B & C |
| Temperature Handling | Up to 350°C |
| Pressure Rating | Up to 15 kg/cm² |
| Capacity Range | Up to 2200 m³/hr |
| Head Range | Up to 150 meters |
| Discharge Sizes | 25 mm to 300 mm |
| Rotational Speed | Up to 3500 RPM |
| Maintenance | Back pull-out design for easy removal of rotating parts without disturbing piping |
| Attributes | Description |
|---|---|
| Pump Model | SHCPP Series |
| Pump Type | Single stage, end suction, back pull-out centrifugal pump |
| Flow Capacity | Up to 2200 cubic meters per hour |
| Maximum Head | 150 meters |
| Discharge Diameter | 25 mm to 300 mm |
| Operating Temperature | Up to 350 degrees Celsius |
| Maximum Operating Pressure | 15 kg/cm² |
| Rotational Speed | Up to 3500 RPM |
| Materials of Construction | Cast Iron, Carbon Steel, Stainless Steel (304, 316, 316L), Bronze, Alloy-20, CD4MCU, Hastelloy B & C |
| Applications | Industrial process fluids, chemical processing, marine cooling, firefighting, water circulation and supply, petrochemical handling |
| Design Feature | Back pull-out for easy maintenance, end suction configuration |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The back pull-out design facilitates easy removal of the rotating assembly without disconnecting the pump casing from the piping system, significantly reducing downtime and maintenance effort.
Materials such as Alloy-20, CD4MCU, Hastelloy B & C along with stainless steel grades (SS-304, SS-316, SS-316L) and bronze are available to handle corrosive and aggressive fluids reliably.
Yes, the SHCPP Series centrifugal pumps are rated to handle fluid temperatures up to 350°C, making them suitable for thermal fluid, jet dyeing, and other high temperature applications.
The pumps can handle flow capacities up to 2200 cubic meters per hour with discharge sizes ranging from 25 mm to 300 mm, accommodating a broad range of industrial requirements.
Yes, the SHCPP Series offers various sealing and bearing configurations tailored to meet specific application needs, including handling volatile and corrosive liquids.
Brand: shark pump engineering pvt ltd.
Country Of Origin: India
ABOUT SHCPP SERIES
SHCPP Series are single stage, end suction, back pull out type centrifugal process pumps designed by Shark Pump Engineering Pvt. Ltd. for maximum performance, reliability and durability. Built with precision engineering and advanced hydraulic design, these pumps are ideal for industrial, commercial, and chemical process applications.
KEY FEATURES
1. End suction and back pull-out design for easy maintenance.
2. High-efficiency impeller design with minimum vibration.
3. Available in multiple metallurgy options — CI, SS, Bronze, Alloy-20, CD4MCU, Hast Alloy.
4. Handles clear, viscous and corrosive liquids.
5. Robust construction ensuring long service life and reliability.
TECHNICAL SPECIFICATIONS
Capacity :- Up to 2200 m³/hr
Head Up to :- 150 meters
Discharge :- Size 25 mm to 300 mm
Temperature :- Up to 350°C
Speed :- Up to 3500 RPM
Pressure :- Up to 15 kg/cm²
Material :- C.I, C.S, SS-304 / SS-316 / SS-316L, Bronze, Alloy-20, CD4MCU, Hast Alloy B & C
APLICATION
1. Hot and cold water circulation, cooling water systems.
2. Drip irrigation, water supply and building services.
3. Thermic fluid, jet dyeing, volatile liquids.
4. Condensate handling, fire fighting systems, environmental engineering.
5. Marine, refrigeration and cooling tower installations.
6. Chemicals, petrochemicals, refineries, sugar, paper, and laminates industries.
7. Handling hydrocarbons, organic/inorganic chemicals, solvents, effluents, and slurries.
8. Fertilizer, cement, textile, and rubber industries.
ADVANTAGES
1. Easy maintenance with back pull-out design.
2. High hydraulic efficiency ensures energy savings.
3. Smooth, noiseless, and vibration-free operation.
4. Suitable for wide range of industrial and chemical applications.
5. Available with different sealing and bearing options.
