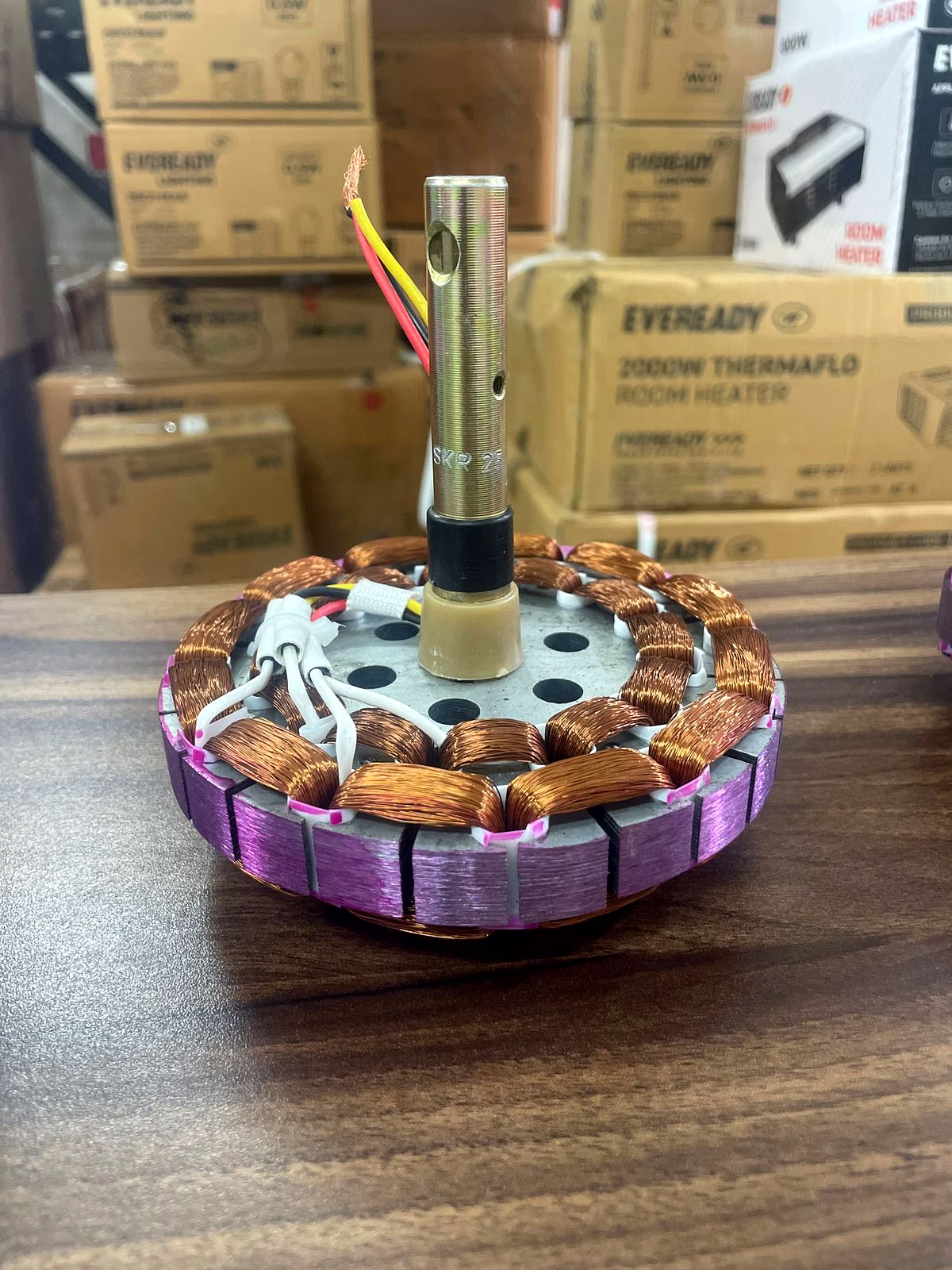

The Ceiling Fan Stator is an essential component designed specifically for ceiling fans, serving as the stationary part of the motor that houses the windings. This stator is engineered to provide consistent magnetic fields that interact with the rotor, ensuring efficient and smooth operation of the ceiling fan. Manufactured from high-quality electrical-grade laminations, the stator enhances heat dissipation and reduces energy losses, thereby improving the fan's overall performance and durability. Ideal for use in residential and commercial ceiling fans, this stator supports various fan sizes and power ratings, contributing to optimal airflow and energy efficiency.
Key Features
| Features | Description |
|---|---|
| Material | Electrical-grade laminated steel |
| Compatibility | Fits standard ceiling fan models |
| Design | Optimized coil winding slots for efficient magnetic flux |
| Heat Dissipation | Enhanced lamination design reduces heat buildup |
| Durability | Corrosion-resistant coating for extended life |
| Energy Efficiency | Reduces power losses during operation |
| Weight | Lightweight for ease of installation |
| Dimensions | Customizable per fan specification |
| Noise Reduction | Precision balancing minimizes operational noise |
| Attributes | Description |
|---|---|
| Core Material | Laminated silicon steel |
| Number of Slots | Typically 12 to 24 winding slots |
| Diameter | Varies as per ceiling fan size, typically 100-150mm |
| Thickness | 0.35mm to 0.5mm lamination thickness |
| Coil Capacity | Supports coils up to 220V AC |
| Operating Temperature | -20°C to 80°C |
| Insulation Class | Class B or F for electrical insulation |
| Mounting Type | Standard stator mounting compatible with ceiling fan housings |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This stator is designed to fit most standard ceiling fan models, but compatibility should be confirmed based on the fan’s size and motor specifications.
The stator typically features between 12 to 24 winding slots, which is critical for establishing the magnetic field pattern needed for efficient fan motor operation.
Yes, it is designed to operate efficiently within temperatures ranging from -20°C to 80°C due to its high-grade insulation and lamination materials.
Yes, the precision laminated core reduces vibration and electrical losses, contributing to quieter fan operation.
Yes, the dimensions and winding slot configurations can be customized to suit specific ceiling fan models and power requirements.
Country Of Origin: India
