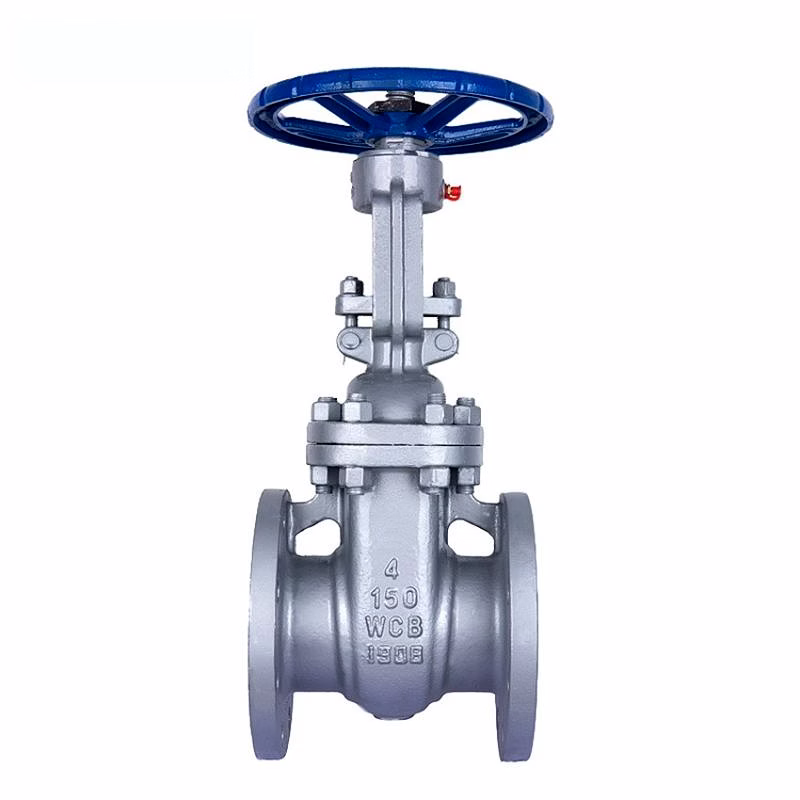

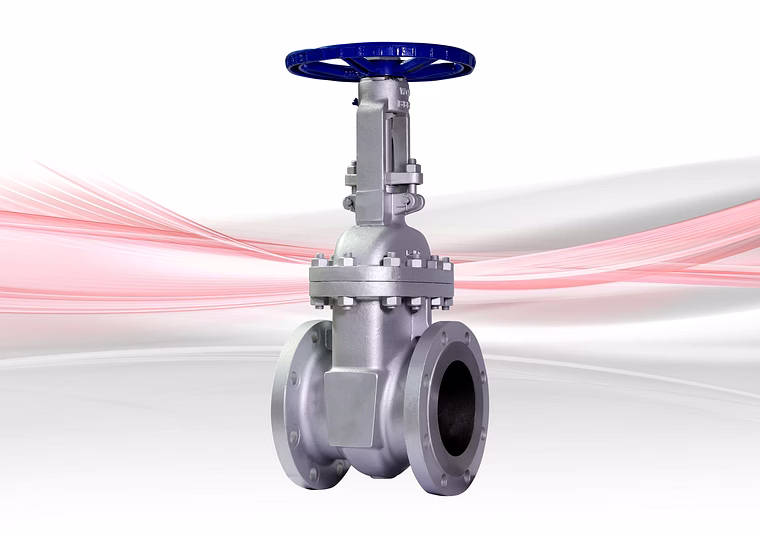

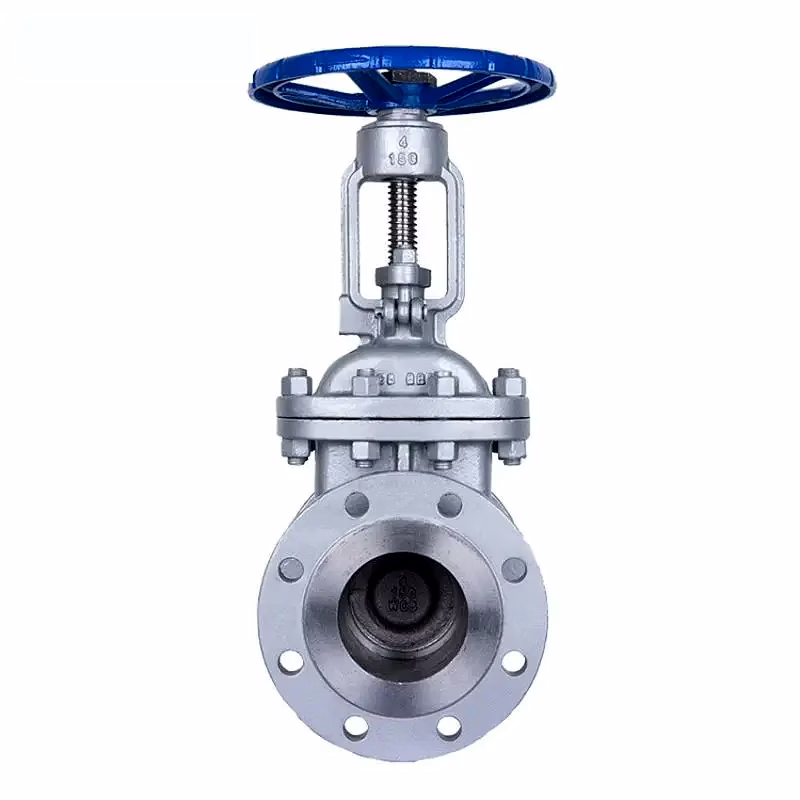

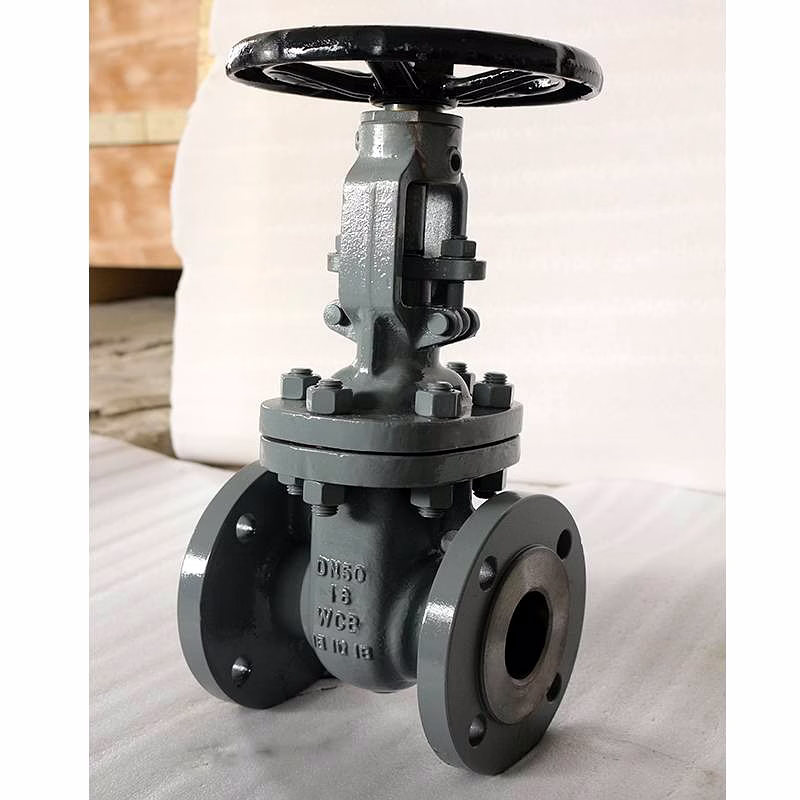

The Cast Steel Gate Valve Flange End is a robust industrial valve designed specifically for on/off control applications in demanding environments. Constructed from durable cast steel, this gate valve features a wedge-shaped gate that slides smoothly between two seats to provide a tight seal and minimal leakage. Its flange end connection allows for secure and straightforward installation in high-pressure pipelines. Ideal for heavy-duty use in industries such as oil and gas, chemical processing, water treatment, and municipal water distribution, this valve supports bulk flow control and isolation without significant pressure drop. Designed for reliability, the valve can be operated manually through a handwheel or configured for automated control with actuators, making it versatile for power plants, mining, HVAC, and waste management systems. The cast steel material ensures resistance to harsh environmental conditions, corrosion, and mechanical stress, ensuring long service life and consistent performance.
Key Features
| Features | Description |
|---|---|
| Material | High-grade Cast Steel for enhanced durability and corrosion resistance |
| End Connection | Flange End type for secure and leak-proof pipeline integration |
| Valve Type | Gate Valve with wedge-shaped sliding gate for tight shutoff |
| Operation | Manual operation via handwheel or optional automation with actuators |
| Pressure Rating | Suitable for high-pressure applications in industrial pipelines |
| Flow Control | Designed for full open or close with minimal flow resistance |
| Sizes Available | Available in a wide range of sizes for various pipeline diameters |
| Applications | Ideal for oil and gas, chemical plants, water treatment, mining, and HVAC |
| Isolation Capability | Effective for system isolation during maintenance without disruption |
| Performance | Minimal pressure drop and turbulence in fully open position |
| Attributes | Description |
|---|---|
| Material | Cast Steel |
| Connection Type | Flange End |
| Operation Type | Manual / Automated |
| Valve Design | Wedge Gate Valve |
| Pressure Class | Designed for high-pressure applications (specific ratings vary by size) |
| Suitable Media | Water, Oil, Gas, Chemicals |
| Size Range | Customizable pipeline sizes, typically from 1 inch to 24 inches or more |
| Standards Compliance | Manufactured as per industry standards (API, ANSI, or equivalent) |
| Temperature Range | Capable of operating in high-temperature environments depending on material grade |
| End Flange Standard | ANSI B16.5 / ASME B16.47 (depending on valve size) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The cast steel gate valve flange end is typically available in various ANSI pressure classes such as 150, 300, 600, and higher, depending on the size and application requirements. Specific pressure ratings can be confirmed with the manufacturer.
Yes, the valve can be operated manually using a handwheel or configured with actuators for automated control, making it versatile for different industrial setups.
While the valve body is made of cast steel which offers good mechanical strength, for highly corrosive chemicals it is advisable to verify the compatibility of the cast steel grade or consider additional protective coatings or lining.
This valve is typically manufactured in compliance with industry standards including API, ANSI, and ASME to ensure safety, reliability, and interchangeability.
The valve flanges conform to widely accepted standards like ANSI B16.5 or ASME B16.47 depending on the size, ensuring compatibility with standard piping systems.
The operational temperature depends on the specific cast steel grade used but generally supports high-temperature applications found in oil, gas, and chemical industries.
In the fully open position, the wedge gate design provides a straight-through flow path, reducing turbulence and pressure drop, making it efficient for large volume flow systems.
Brand: focet
Country Of Origin: India
Uses of Industrial Gate Valves:
On/Off Control: Gate valves are primarily used to fully open or close a pipeline, providing minimal flow resistance when fully opened.
High-Pressure Systems: They are suitable for high-pressure applications, often found in oil and gas industries, water treatment facilities, and chemical processing plants.
Bulk Flow Applications: Gate valves are ideal for large volume flow control, such as in irrigation systems and municipal water distribution.
Isolation Purposes: They serve as isolation valves in systems where maintenance is required without interrupting the entire system.
Minimal Pressure Drop: When open, gate valves offer low turbulence and minimal pressure drop, making them efficient for high-flow applications.
Features:
Design: Typically designed with a wedge-shaped gate that slides between two seats.
Materials: Available in various materials (e.g., cast iron, stainless steel, brass) to suit different media and environmental conditions.
Size Range: Available in a wide range of sizes, accommodating different pipeline diameters.
Operation: Can be operated manually (via handwheel) or automatically (via actuators).
Applications: Commonly used in power plants, HVAC systems, mining, and waste management.
