Cable Trays and Raceways are robust and versatile cable management solutions designed to support, organize, and protect electrical cables in diverse environments including commercial buildings, industrial facilities, data centers, and healthcare facilities. These trays ensure efficient cable routing with ample space for heat dissipation, minimizing the risk of overheating and electrical hazards. Constructed from high-quality materials such as steel, aluminum, and fiberglass, Cable Trays and Raceways provide superior load capacity and durability for heavy-duty applications. Their modular design allows for easy installation, maintenance, and future scalability of cable infrastructure, making them ideal for settings ranging from power plants to residential buildings. With corrosion resistance and various finish options, they are suitable for indoor and outdoor use, supporting cable systems while enhancing safety and organization in complex electrical networks.
Key Features
| Features | Description |
|---|---|
| Material Options | Steel, Aluminum, Fiberglass |
| Load Capacity | Varies by design; supports heavy-duty industrial cables |

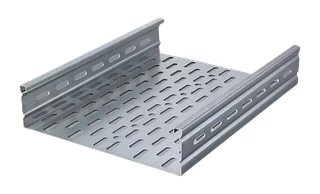

| Design | Open tray, ladder, and solid bottom configurations |
| Corrosion Resistance | Available with galvanized, powder-coated, or stainless steel finishes |
| Installation | Modular design for quick and flexible installation |
| Ventilation | Optimized for airflow to reduce cable overheating |
| Applications | Commercial, industrial, healthcare, data centers, transportation, residential |
| Maintenance | Easy access for cable management and expansion |
| Customization | Sizes and configurations customized to project requirements |
| Safety | Meets electrical safety standards to reduce fire hazards |
| Attributes | Description |
|---|---|
| Standard Sizes | Available in widths from 50 mm to 600 mm |
| Tray Depth | Ranges from 25 mm to 150 mm |
| Finish | Galvanized, powder-coated, stainless steel |
| Load Class | Light, medium, and heavy-duty |
| Operating Temperature | -40°C to 80°C (depends on material) |
| Compliance Standards | IEC 61537, NEMA VE-1 |
| Installation Environment | Indoor and outdoor |
| Mounting Options | Wall-mounted, ceiling-mounted, or floor-supported |

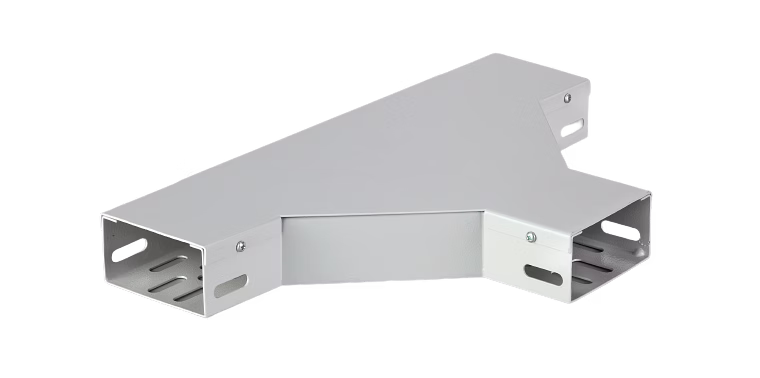

| Customization | Bends, tees, reducers, and junctions available |
| Material Thickness | Ranges between 1.2 mm to 3.0 mm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Cable trays are typically available in steel, aluminum, and fiberglass. Steel offers high strength for heavy industrial use, aluminum provides corrosion resistance with lighter weight, and fiberglass is ideal for environments requiring high corrosion resistance and non-conductivity.
Yes, cable trays and raceways come with various customizable sizes and configurations including bends, tees, reducers, and junctions to accommodate complex cable routing needs and space constraints.
Yes, cable trays finished with galvanized or powder-coated surfaces are suitable for outdoor use due to their corrosion resistance and durability against environmental factors.
Open tray designs allow improved airflow around cables, facilitating heat dissipation which minimizes temperature buildup and potential overheating of electrical cables.
These cable trays comply with IEC 61537 and NEMA VE-1 standards, ensuring safety, durability, and reliability in electrical cable management systems.
Cable trays provide essential support for organizing and managing electrical cables in various settings, from commercial buildings to industrial facilities. They facilitate easy installation, maintenance, and future expansion of cable systems. Designed to ensure optimal airflow and minimize cable overheating, cable trays enhance safety and system longevity. Available in multiple materials and configurations, they accommodate different load capacities and environmental conditions. By using cable trays, you streamline cable management, reduce clutter, and improve access for maintenance.
Applications of Cable Trays:
Commercial Buildings
Industrial Facilities
Data Centers
Power Plants
Healthcare Facilities
Transportation Systems
Residential Buildings
