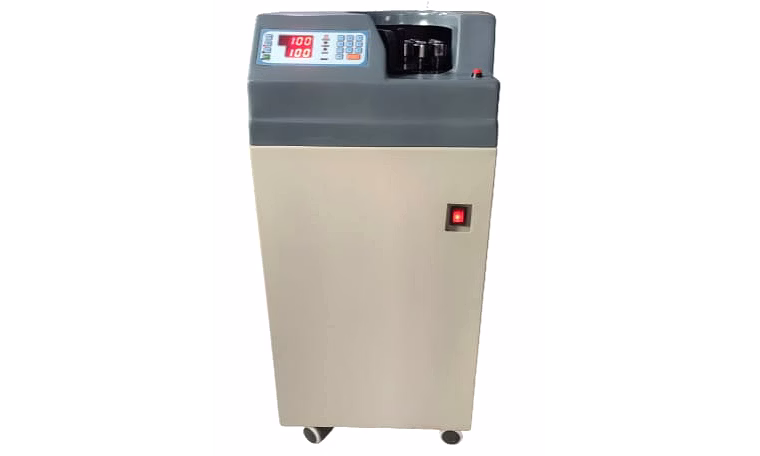

The Semi Heavy Duty Bundle Note Counting Machine is designed for high-efficiency currency handling, available in two models: Floor Type (DA LF 3500) and Desk Top (DA LD 3500). Engineered with a vacuum counting mechanism, this machine guarantees fast and accurate counting with a speed of 4 seconds per 100 notes. It supports multiple counting modes including Batch, Add, Auto/Manual, and Free counting, with additional Stamp counting capabilities to cater to varied business requirements. The machine accommodates banknotes with sizes ranging from 50 x 100 mm to 100 x 200 mm and holds up to 200 notes securely in the holder. Featuring an advanced electronic pressure counter combined with an electromechanical counter, it offers reliable and precise note tallying with added benefits of self-diagnosis functionality for operational integrity. Dual display panels enhance user visibility and control. Powered by a robust 0.35 HP vacuum pump and efficient spindle and holder motors, this equipment is built to endure demanding currency counting tasks. Ideal for financial institutions, cash handling businesses, and retail sectors with high cash flow, the DA LF 3500 and DA LD 3500 models deliver consistency, durability, and accuracy in note counting operations.
Key Features
| Features | Description |
|---|---|
| Models Available | Floor Type (DA LF 3500) and Desk Top (DA LD 3500) |
| Counting Modes | Batch, Add, Auto/Manual, Free, Stamp |
| Counting Mechanism | Vacuum |
| Counting Speed | 4 seconds per 100 notes |
| Currency Size Supported | Minimum 50 x 100 mm to Maximum 100 x 200 mm |
| Note Holder Capacity | 200 notes |
| Counter Type | Advanced Electronic Pressure Counter and Electromechanical Counter |
| Self-Diagnosis | Available |
| Power Source | AC 220 V ± 10 %, 50 Hz |
| Dual Display | Available |
| Vacuum Pump Power | 0.35 HP / 450 Watts |
| Spindle Motor | 220 V, 50 Hz, 1440 rpm; 25 watts (Desk Top) / 40 watts (Floor Type) |
| Holder Motor | 220 V, 50 Hz, 1440 rpm; 25 watts (Desk Top) / 40 watts (Floor Type) |
| Weight | Approx. 36 Kg (Floor Type), Approx. 24 Kg (Desk Top) |
| Attributes | Description |
|---|---|
| Model Number (Floor Type) | DA LF 3500 |
| Model Number (Desk Top) | DA LD 3500 |
| Counting Speed | 4 seconds per 100 notes |
| Currency Size Range | Min 50 x 100 mm - Max 100 x 200 mm |
| Note Holder Capacity | 200 notes |
| Counter Type | Electronic Pressure Counter / Electromechanical Counter |
| Self-Diagnosis Feature | Yes |
| Power Source | AC 220 V ± 10 %, 50 Hz |
| Vacuum Pump | 0.35 HP / 450 Watts |
| Spindle Motor | 220 V, 50 Hz, 1440 rpm; 25 W (Desk Top), 40 W (Floor Type) |
| Holder Motor (Gear) | 220 V, 50 Hz, 1440 rpm; 25 W (Desk Top), 40 W (Floor Type) |
| Weight | 36 Kg (Floor), 24 Kg (Desk Top) |
| Counting Modes | Batch, Add, Auto / Manual, Free, Stamp |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The DA LF 3500 floor type model is heavier (approx. 36 Kg) and uses higher power motors (40 watts) compared to the DA LD 3500 desk top model which weighs approx. 24 Kg and uses 25 watts motors, making the floor type suitable for larger volume currency counting.
The self-diagnosis function continuously monitors operational parameters and alerts users in case of faults or errors, ensuring minimal downtime and accurate counting results.
The machine can count currency notes up to a maximum size of 100 mm x 200 mm, accommodating a wide range of domestic and international banknotes.
This model is primarily designed for counting bundles of notes of uniform denominations using modes such as batch and auto/manual counting but does not provide denomination sorting.
The machine operates on AC 220 V ± 10 %, 50 Hz power supply, common in many offices and financial institutions, making it suitable for standard workplace electrical conditions.
The note holder can hold up to 200 notes at a time, allowing for significant batch counting without frequent reloading, facilitating efficient workflow.
Specification of Semi Heavy Duty Bundle Note Counting Machine
Floor Type: Model No.- DA LF 3500
Desk Top: Model No.- DA LD 3500
Counting Modes : Batch, Add, Auto / Manual, Free, Stamp
Counting Mechanism : Vacuum
Counting Speed : 4 Sec / 100 Notes
Size of Currency to Count : Min: 50 x 100 mm, Max: 100 x 200 mm
Note Holder Capacity : 200 Notes
Counter : Advanced Electronic Pressure Counter /
Electromechanical counter
Self-Diagnosis : Available
Power Source : AC 220 V +/- 10 %, 50 Hz,
Dual Display : Available
Vacuum pump : 0.35 HP / 450 Watts
Spindle motor :220 V, 50 Hz, 1440 rpm; 25 watts / 40 watts
Holder Motor (Gear) : 220 V, 50 Hz, 1440 rpm; 25 watts / 40 watts
Weight : Approx. 36 Kg (Floor Type)/ Approx. 24 Kg (Desk Top)
