Our Brass Grub Screws are precision-engineered fastening components designed for a variety of industrial applications including automotive, electrical, and electronic sectors. Crafted from high-quality free cutting brass compliant with IS 319 Type (I), BS 249 Type (I), or custom brass compositions, these grub screws ensure superior machinability and performance. Available in sizes starting from M4 and customizable up to any required dimensions, they meet international threading standards such as ISO Metric, BA, BSW (inches), UNC, UNF, or customer-specific designs. The screws feature a slotted or Allen (hex) drive configuration for versatile installation methods. Finishing options include natural brass, nickel plating, tin plating, or specialized coatings to enhance corrosion resistance and aesthetics. Key engineering features include threads manufactured as per International Go & Not Go gauges for precision fitment, deep grooves designed to provide maximum pull-out resistance, and tightly controlled inner diameters post threading to prevent unwanted flush intrusion, guaranteeing reliable fastening in critical assemblies.
Key Features
| Features | Description |
|---|---|
| Material | Free Cutting Brass IS 319 Type (I), BS 249 Type (I), High Grade Free Cutting Brass or custom brass compositions |
| Thread Standards | ISO Metric (MM Threads), BA, BSW (Inches), UNC, UNF, or custom thread designs |
| Sizes Available | Starting from M4 or equivalent, customizable to any length |
| Drive Type | Slotted or Allen (Hex) screws |
| Finish & Coating | Natural Brass, Nickel Plated, Tin Plated, or custom coatings |
| Thread Compliance | Manufactured as per International Go & Not Go thread standards |
| Deep Groove Design | Provides maximum pull-out resistance |
| Inner Diameter Tolerance | Closely controlled I/D after threading to prevent flush entry into screws |
| Applications | Industrial, Automotive, Electrical, Electronic components fastening |
| Attributes | Description |
|---|---|
| Material Standard | IS 319 Type (I), BS 249 Type (I), or custom brass grades |
| Thread Types | ISO Metric, BA, BSW, UNC, UNF, Custom threads |
| Size Range | From M4 onwards, customizable lengths |
| Drive Style | Slotted and Allen (Hex) |
| Surface Finish | Natural, Nickel Plated, Tin Plated, Custom coatings |
| Thread Accuracy | Conforms to International Go & Not Go standards |
| Groove Depth | Designed for maximum pull-out resistance |
| Tolerance on Inner Diameter | Very close tolerance to prevent flush intrusion |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the brass grub screws can be precisely manufactured with various thread standards including ISO Metric, BA, BSW, UNC, UNF, and even custom thread designs as per customer requirements.
Finishing options include natural brass, nickel plating, tin plating, or any special coating specified by the customer to enhance corrosion resistance and surface protection.
The screws are made from Free Cutting Brass conforming to IS 319 Type (I), BS 249 Type (I), high-grade free cutting brass, or any special brass material composition as per customer specifications.
Pull-out resistance is maximized by the inclusion of a deep groove design and precise thread manufacturing as per International Go & Not Go standards.
Yes, the screws are available starting from M4 and can be customized to any required lengths and sizes based on customer design requirements.
The inner diameter after threading is controlled with very close tolerance to prevent unnecessary flush material from entering into the grub screws.
Country Of Origin: India

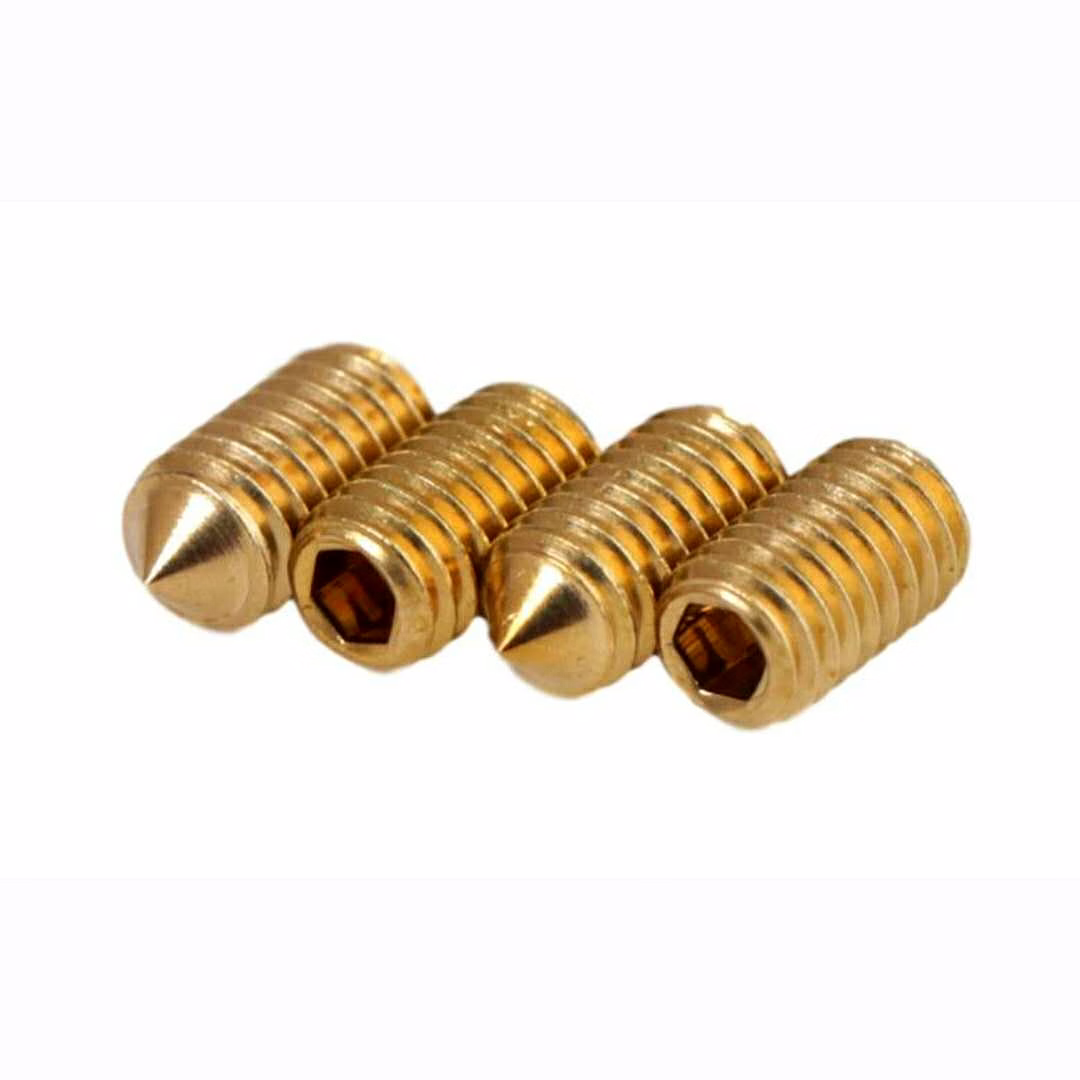

Brass Grub
Slotted Screws
Allen screws
Typical Application:
Industrial, auto, electrical, electronic etc….
Material
• Free Cutting Brass IS 319 Type (I) or
• Free Cutting Brass as per BS 249 Type (I) or
• High Grade Free Cutting Brass.
• Any Special Brass Material Composition as per customer’s requirement.
Length / Size:
Begins from M4 or equivalent threads and up to any size as per custom design or requirement.
Threads
• ISO Metric (MM Threads)
• BA Threads
• BSW Threads (Inches)
• UNC, UNF Threads
• Any threads as per custom design.
Finish and Coating:
• Natural, Nickel Plated, Tin Plated or any coating as per customer specification.
Special Features:
• Threads as per International Go & Not Go Standards.
• Deep Groove for maximum Pull out Resistance.
• Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the Grubs.
