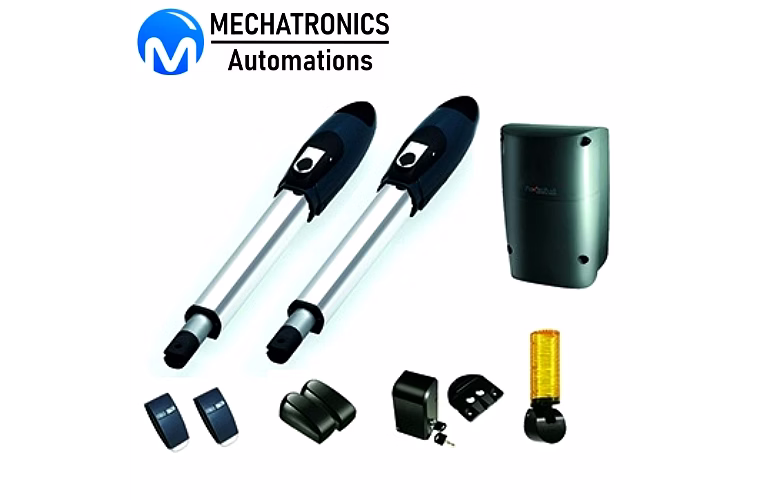

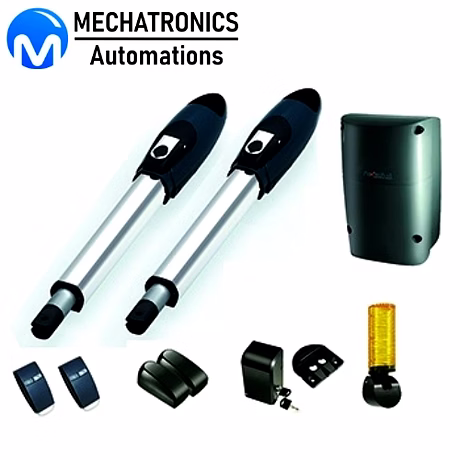

FX330K is a Remote control gate opener from Foxtech.uk. its Electro-mechanical swing gate operators are designed for residential application. Stylish appearance of the gear motors with innovative design, This motor can release by specialised key in case of power failure. Comply with Europe safety design, the motors use 24 volt DC, which is the unique design for the safety priority in motor installation and operation. The appearance of the motor body adopts anti-UV material which has outward retention in resisting any tough environments. FEATURES Maximum weight/ length per gate leaf; 350kg/4m. 24V DC electro-mechanical gear motors for residential use. Worm gear provides durability and silence in motor operation. Slowdown during the ends of opening and closing phases. Single-gate or dual-gate installation is optional.

SPECIFICATION

MODEL FX 330K

Volt AC 240V / 110V; 50Hz~60Hz

Motor Volt DC 24V

Max. Gate Weight 350kg per leaf

Max. Gate Length 3.5 meters per leaf

Gear Type Worm gear

Operating Temperature -20oC~+50oC

Max. Absorbed Power 144W

Current Rating 3A

Peak Thrust 3500N

Manual Release Key

Dimension (mm) 844 x 115 x 106
