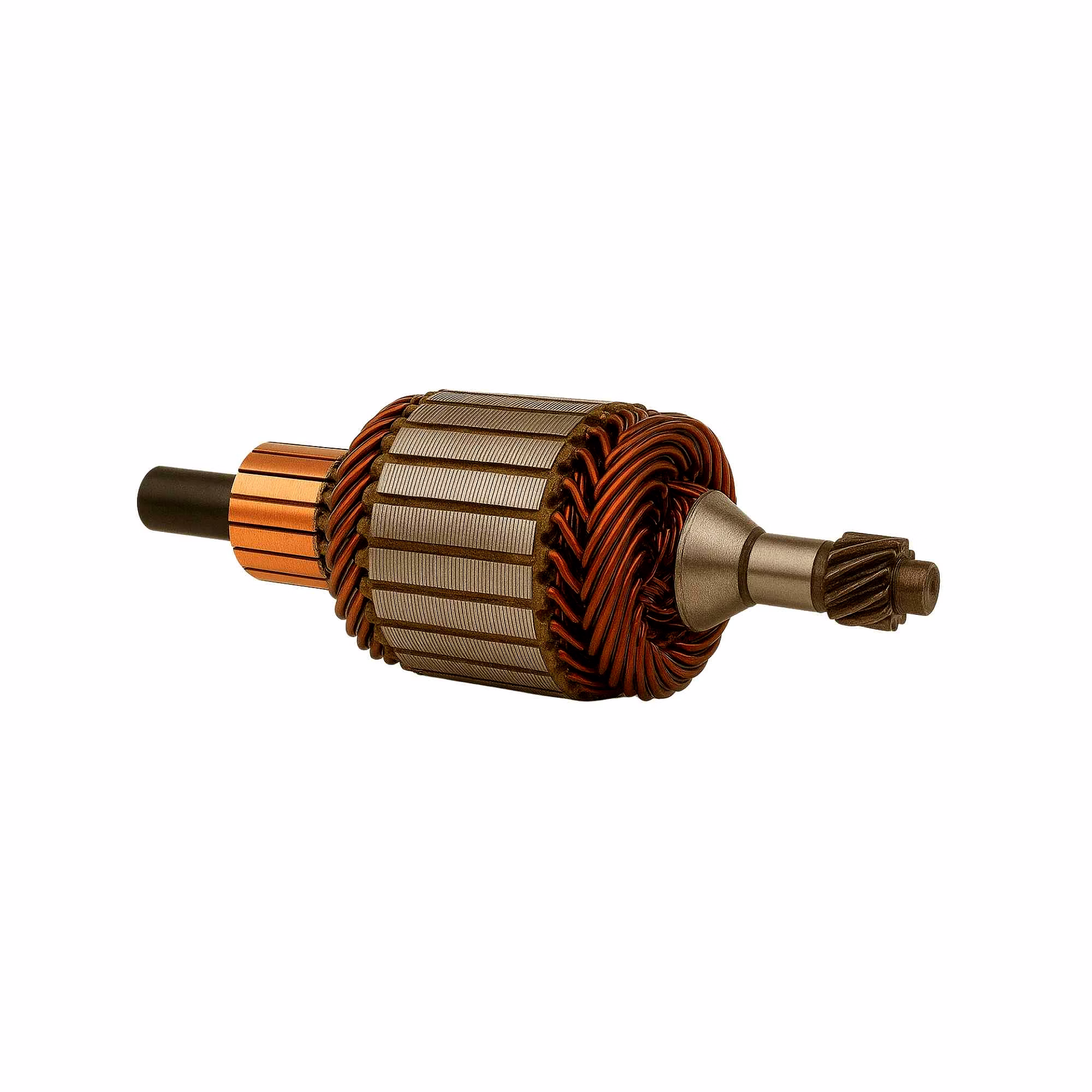

The Armature Assembly is a critical component designed specifically for starter motors, integral to the process of converting electrical energy into mechanical rotation to initiate engine cranking. This assembly features a laminated iron core that minimizes eddy current losses, ensuring efficient energy conversion. Copper windings are precisely wound to optimize conductivity and electromagnetic performance. At its core, the commutator ensures continuous electrical contact during rotation, while the precision-engineered shaft with an integrated pinion gear engages seamlessly with the engine's flywheel. Built for high durability, the armature assembly can withstand rigorous high torque conditions, ensuring reliable and efficient starting performance across various engine applications. Compatible with starter motors from leading manufacturers including Bosch, Lucas-TVS, Denso, Sona Comstar, and Valeo, this armature assembly supports robust and consistent engine start-up cycles in automotive and industrial applications.
Key Features
| Features | Description |
|---|---|
| Core Type | Laminated Iron Core |
| Windings | High Conductivity Copper Wire |
| Commutator | Durable and Precise Electrical Contact Surface |
| Shaft | Precision Engineered with Pinion Gear |
| Application | Starter Motors for Engine Cranking |
| Torque Handling | Designed for High Torque Conditions |
| Compatibility | Fits Bosch, Lucas-TVS, Denso, Sona Comstar, Valeo Starter Motors |
| Durability | Engineered for Long Service Life under Harsh Conditions |
| Energy Efficiency | Optimized for Minimal Electrical Loss |
| Attributes | Description |
|---|---|
| Core Material | Laminated Iron |
| Winding Material | Copper |
| Commutator Material | Copper/Carbon Composite |
| Shaft Diameter | Precision Sized per Starter Motor Model |
| Pinion Gear Type | Helical or Spur Gear depending on Model |
| Operating Voltage | Standard Vehicle Electrical Systems (12V/24V) |
| Product Weight | Varies by Model |
| Manufacturer Compatibility | Bosch, Lucas-TVS, Denso, Sona Comstar, Valeo |
| Application Type | Automotive and Industrial Starter Motors |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the armature assembly is engineered to withstand high torque conditions typical in heavy-duty and high performance starter motors.
While designed to fit both Bosch and Denso starter motors, compatibility depends on specific starter motor models; verify model numbers before purchase.
The commutator is manufactured using a copper and carbon composite material ensuring durability and efficient electrical contact.
The laminated iron core reduces eddy current losses within the armature, enhancing efficiency and reducing heat generation during operation.
The pinion gear can vary between helical or spur types depending on the specific starter motor design and manufacturer requirements.
Armature assembly used in starter motors, featuring a laminated iron core, copper windings, commutator, and precision shaft with pinion gear. It converts electrical energy into mechanical rotation, enabling engine cranking. Built for durability and efficient performance under high torque conditions.
Companies Available:
Bosch, Lucas-TVS, Denso, Sona Comstar, Valeo
