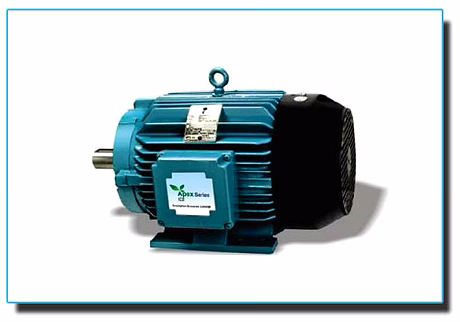

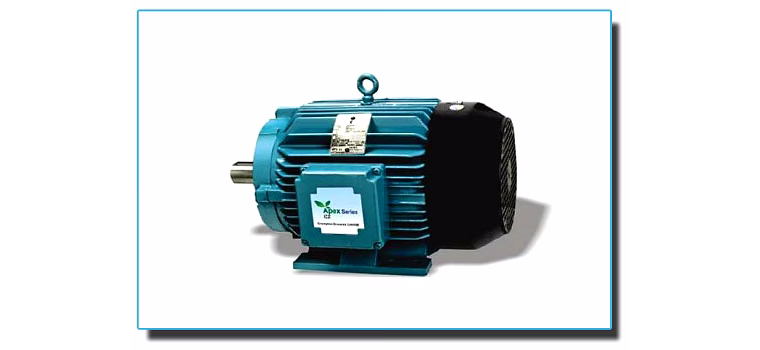

The Apex Series IE2 Motors from CG represent a cutting-edge green solution for industrial applications, fully compliant with the latest Indian standards and international IEC specifications. The first of its kind in India, the IE2 series features a comprehensive range designed for both safe areas and flameproof environments. With a power output ranging from 0.37 kW to 250 kW, these motors deliver exceptional performance for various applications including pumps, fans, and conveyors. The robust construction, coupled with energy-saving capabilities, ensures reliability and efficiency, significantly contributing to lower operational costs. Following the guidelines of IS 12615:2004, now updated to align with IEC 60034-30:2011, Apex Series Motors not only meet efficiency standards but also include additional parameters like breakaway torque, current, and full load specifications. With a frame size designation from IEC71 to IEC355LX and operational capabilities at voltage levels of 415V +/- 10% and frequency of 50Hz +/- 10%, these motors are customizable, with both stock and made-to-order options available within a flexible delivery period. At CG, we pride ourselves on competitive pricing and have established partnerships with major corporates and MNCs, alongside partnerships with renowned brands like Oxford, Marathon Electric, and more.
Key Features
| Features | Description |
|---|---|
| Energy Efficiency | IE2 Efficiency Class, compliant with IEC 60034-30 and IS 12615:2011 |
| Power Range | Available from 0.37 kW to 250 kW |
| Frame Size | Frame sizes range from IEC71 to IEC355LX |
| Applications | Ideal for pumps, fans, and conveyors |
| Construction Type | Available in both safe area and flameproof designs |
| Voltage Range | 415V +/- 10% |
| Frequency Range | 50 Hz +/- 10% |
| Testing Method | Efficiency values determined according to IEC 60034-2-1 via indirect method |
| Attributes | Description |
|---|---|
| Efficiency Class | IE2 |
| Breakaway Torque | Specified per application requirements |
| Breakaway Current | Specified per application requirements |
| Full Load Speed | As per motor specifications |
| Full Load Current | Specified per horsepower rating |
| Pole Options | 2, 4, and 6 pole configurations |
| Delivery Terms | Regular stock available and custom orders with flexible delivery |
| Vendor Relationships | On vendor lists of major corporate houses and MNCs |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Apex Series IE2 Motors are ideal for various industrial applications, including pumps, fans, and conveyors.
The motors are classified as IE2, in accordance with the latest IEC 60034-30 and IS 12615:2011 standards.
Yes, we offer both stock and custom configurations based on customer requirements with a flexible delivery period.
CG determines efficiency values according to clause 8.2.2.5.1 of IEC 60034-2-1 utilizing the indirect method with low uncertainty.
The Apex Series IE2 Motors can operate within a voltage range of 415V +/- 10% and a frequency of 50 Hz +/- 10%.
Country Of Origin: India
CG has developed IE2 range of motors. We are the first in India to have an entire range of IE2 motors in safe area and flameproof construction. Subsequently, IS 12615:2004 also got revised and now its 2011 edition is inline with IEC60034-30
As per new requirements of IEC60034-30 and IS12615:2011.
Testing Method: CG Determines efficiency values according to clause 8.2.2.5.1 of IEC 60034-2-1 using the indirect method (low uncertainty), with additional load losses(PLL) determined by measurement
