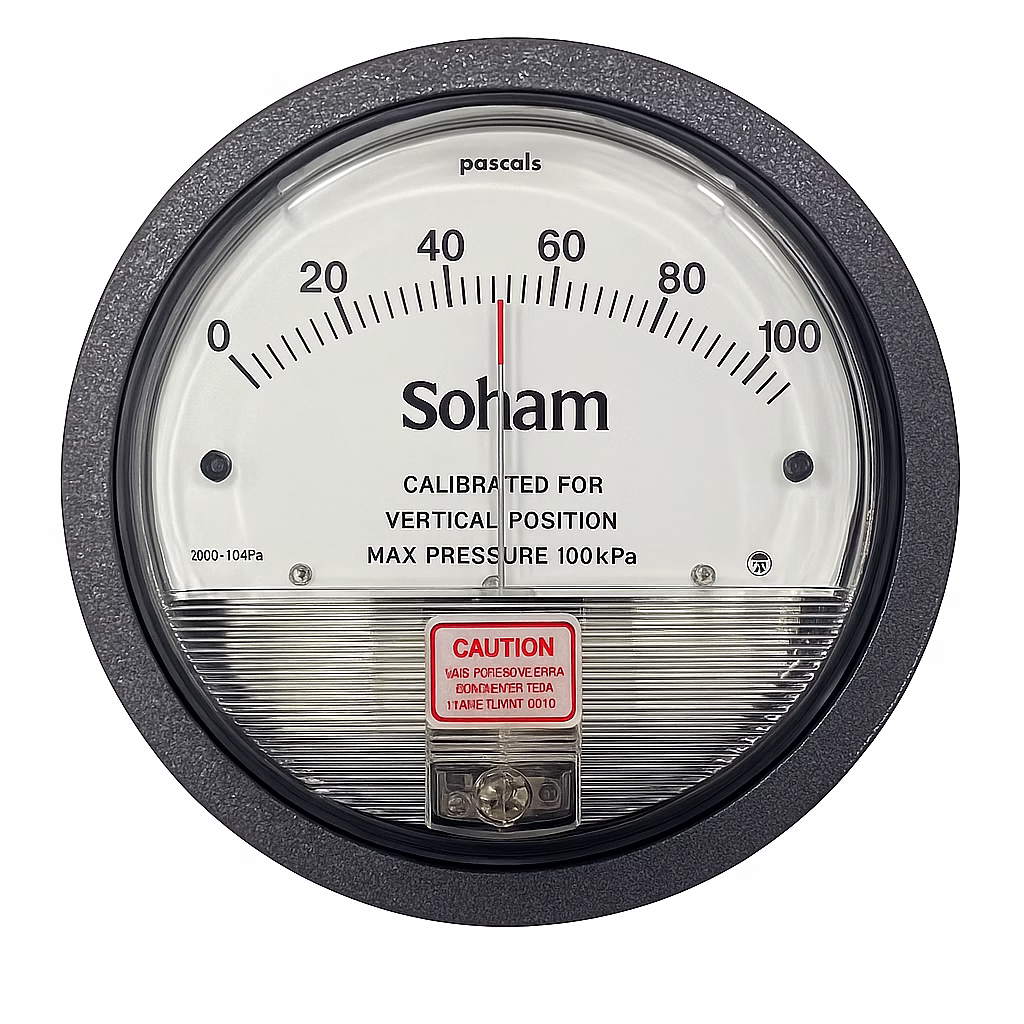

The Analog Magnahelic Gauge is a rugged and maintenance-free pressure gauge specifically engineered for precise monitoring of low differential pressures across filters, clean rooms, and air handling units. Featuring an easy-to-read analog dial, this gauge operates without the need for external power, making it highly reliable and efficient for continuous use in industrial environments. The gauge offers a versatile range from 0–50 Pa up to 0–1500 mmWC/mbar, with accuracy rated at ±2% of full scale, ensuring exact pressure measurements crucial for maintaining optimal conditions in HVAC systems, laboratories, and cleanroom facilities. Its durable die-cast aluminum body with an acrylic cover guarantees longevity and protection against harsh conditions. With flexible mounting options including surface, flush, and panel mounting, and standard 1/8” NPT/BSP connections, the Analog Magnahelic Gauge is compatible with various system configurations and easy to install.
Key Features
| Features | Description |
|---|---|
| Measurement Range | 0–50 Pa up to 0–1500 mmWC / mbar |
| Accuracy | ±2% of full scale |
| Mounting Options | Surface, Flush, Panel |
| Connection Type | 1/8” NPT / BSP |
| Material | Die-cast Aluminum body with Acrylic Cover |
| Power Requirement | None (Analog, no power needed) |
| Applications | HVAC systems, Cleanrooms, Filter Monitoring, Laboratories |
| Durability | Rugged construction, maintenance-free |
| Display Type | Easy-to-read analog dial |
| Attributes | Description |
|---|---|
| Pressure Range | 0–50 Pa to 0–1500 mmWC / mbar |
| Accuracy | ±2% full scale |
| Mounting Type | Surface, Flush, Panel Mounting |
| Connection Size | 1/8” NPT or BSP thread |
| Material Construction | Die-cast Aluminum with Acrylic Cover |
| Display | Analog dial, no power needed |
| Application Areas | HVAC, Cleanrooms, Air Handling Units, Laboratories |
| Maintenance | Maintenance-free design |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The gauge supports a maximum pressure range of up to 0–1500 mmWC / mbar.
Yes, the gauge offers flexible mounting options including surface, flush, and panel mounting to suit different installation requirements.
No, it operates on an easy-to-read analog dial and does not require any external power source.
It is constructed with a durable die-cast aluminum body and features an acrylic cover for clear visibility and protection.
Yes, it is designed specifically for applications such as cleanrooms, HVAC units, filter monitoring, and laboratory environments.
Country Of Origin: India
Visual. Rugged. Maintenance-Free.
Designed for monitoring low differential pressure across filters, clean rooms, or air handling units. Easy-to-read analog dial with no power required.
• Range: 0–50 Pa up to 0–1500 mmWC / mbar
• Accuracy: ±2% of full scale
• Mounting: Surface / Flush / Panel
• Connection: 1/8” NPT / BSP
• Material: Die-cast Aluminum with Acrylic Cover
• Applications: HVAC, Cleanrooms, Filter Monitoring, Labs
