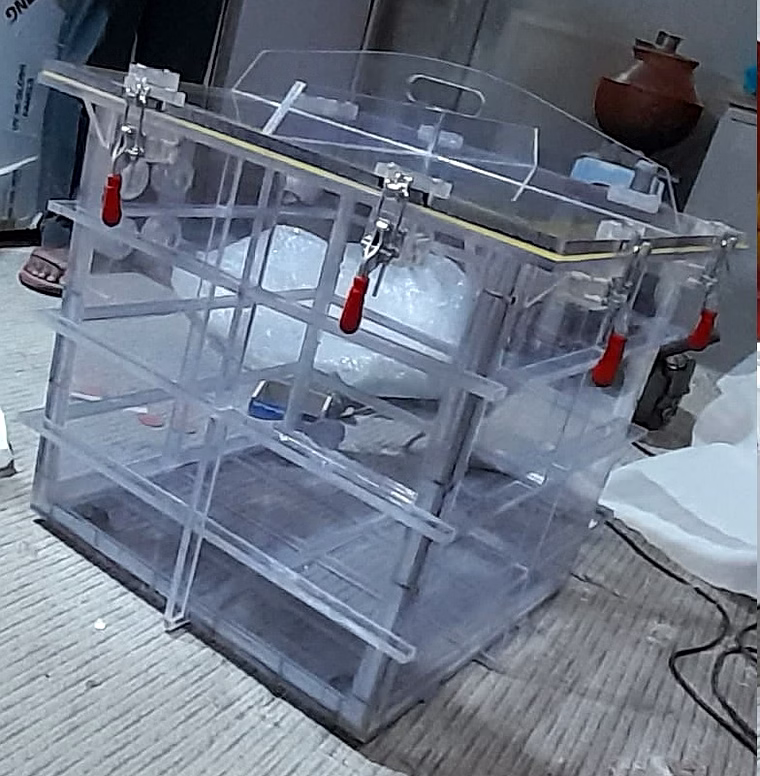

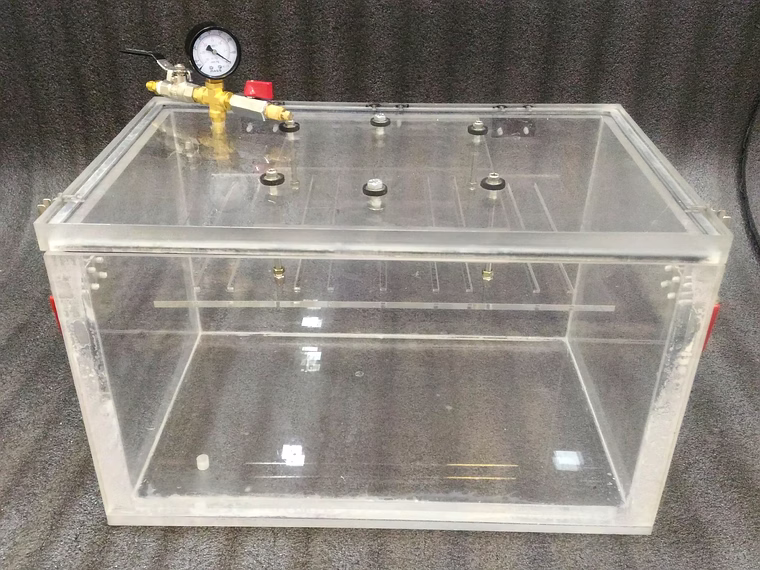

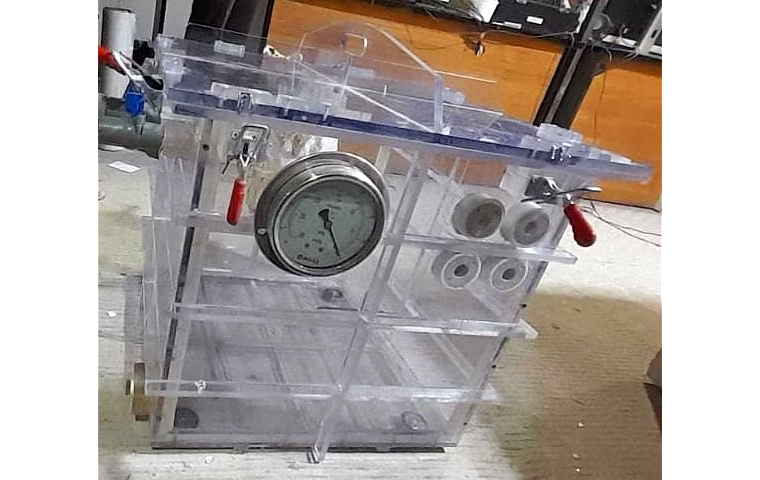

The Acrylic Vacuum Chamber is designed for advanced product testing applications requiring maximum visibility and reliability. Constructed from clear cast acrylic and reinforced with stainless steel 304 grade structure, this vacuum chamber offers a robust solution for degassing, vacuum encapsulation, and other essential laboratory experiments. The top-loading design features a hinged lid, providing ease of access while maintaining a sealed, controlled environment. With an approximate capacity of 520.32 liters and inside dimensions of 42 in x 42 in x 18 in, this vacuum chamber can accommodate various materials, ensuring they remain free from moisture and contamination during experiments. The powerful pump, capable of achieving an ultimate vacuum of 0.001mm of Hg, supports the chamber’s functionality, making it ideal for biological tests, material testing, and sensitive operations that demand sustained low and intermediate vacuums. Completely customizable to meet specific requirements, this chamber is an invaluable tool for any laboratory seeking efficiency and precision in their experiments.
Key Features
| Features | Description |
|---|---|
| Material | Clear Cast Acrylic 50 mm Thick |
| Lid Configuration | Top Loading, Hinged with Pistons |
| Reinforcement Material | Stainless Steel 304 |
| Seal Type | O-Ring Seal |
| Volume Capacity | 520.32 Liters |
| Inside Dimensions (inch) | 42 Length x 42 Width x 18 Height |
| Ultimate Vacuum | 0.001mm of Hg (at suction port by McLeod Gauge) |
| Pump Speed | 7500 LPM |
| Motor Power | 12.5 H.P 3 Phase Motor |
| Customization | Chambers can be fully customized as per specifications. |
| Attributes | Description |
|---|---|
| Chamber Condition | New |
| Shipping Dimension (inch) | 60 Length x 60 Width x 24 Depth |
| Pump RPM | 525 RPM |
| Chamber Product Dimensions (inch) | 46 Length x 46 Width x 24 Height |
| Pump Product Dimensions (inch) | 48 Length x 48 Width x 16.5 Depth |
| Availability | Usually ships 2-3 weeks from order date. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The maximum capacity of the Acrylic Vacuum Chamber is approximately 520.32 liters.
The chamber and lid are constructed from clear cast acrylic, both 50 mm thick, providing durability and transparency.
Yes, the Acrylic Vacuum Chamber can be fully customized to match specific application requirements.
This vacuum chamber is ideal for handling moisture- and particle-sensitive materials, making it suitable for degassing, vacuum encapsulation, and other laboratory experiments.
It is recommended to consult your country’s electrical engineer for proper power supply specifications for the pump.
Chamber Specifications :
Pump Specifications :
Capacity : 7500 LPM
Ultimate Vacuum : 0.001mm of Hg( at suction port by McLeod Gauge
Pump RPM : 525 HP
Pump Speed: 7500 LPM
Motor H.P: 12.5 H.P 3 Phase
Motor : 1440 RPM
Product Dimensions (inch): 48 Length X 48 Width X 16.5 Depth
Shipping Dimension: (inch): 60 Length X 60 Width X 24 Depth
Key Features:
These vacuum chambers provide a safe, reliable means for transporting contamination- and moisture-sensitive parts. They are also ideal for degassing operations, biological tests, material testing and other processes requiring sustained low and intermediate vacuum.
* Consult your country electrical engineer for power supply.
*All the given Price are based on Ex works. Fright, Insurance, Duties and Forwarding are not included.
