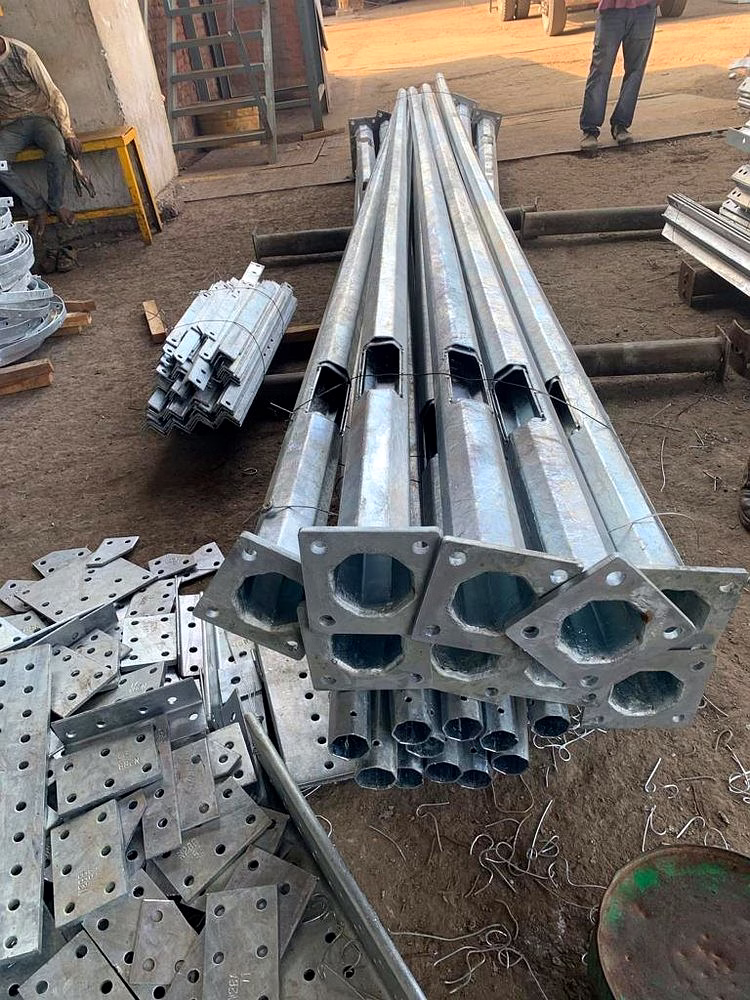

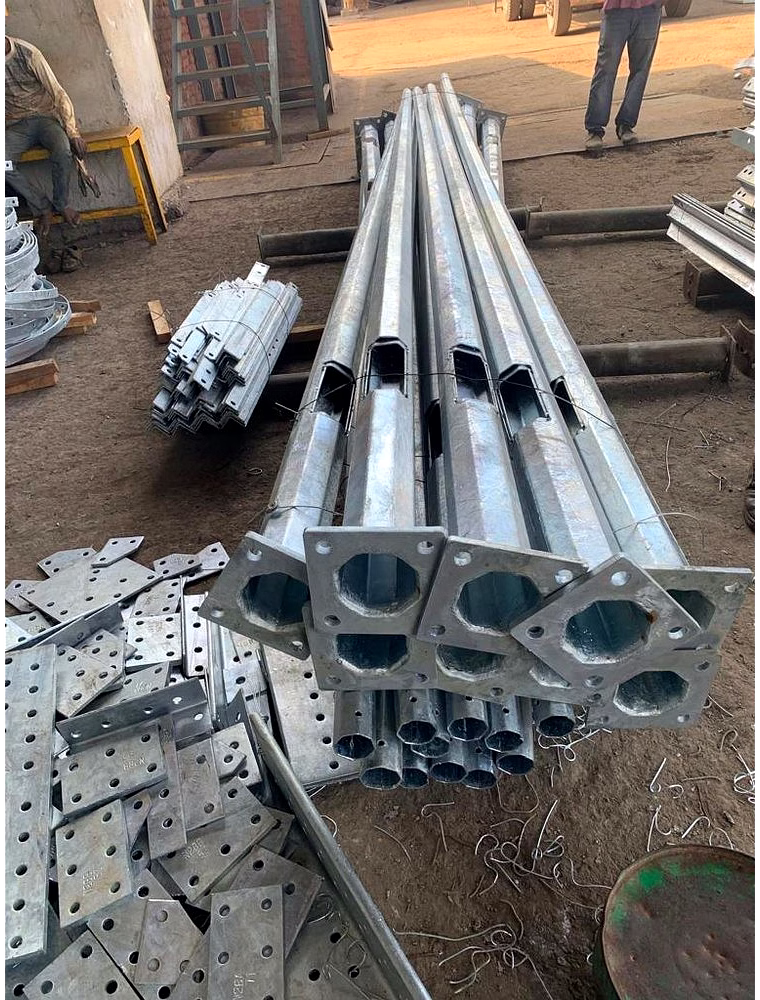

The 9 Mtr Octagonal Pole from VAIRAVA EXIM is a precision-engineered street lighting pole designed for dependable performance in public infrastructure, commercial campuses, industrial estates, highways, parking zones, and urban lighting projects. Built from high-quality mild steel conforming to IS standards, this 9-meter octagonal lighting pole offers the structural strength and durability required for long-term outdoor use. Its octagonal cross-section is specifically chosen to deliver excellent load-bearing capacity, enhanced wind resistance, and improved stability compared to conventional round poles. The pole is fabricated using IS 2062 Grade A mild steel or equivalent, making it suitable for demanding lighting installations where safety, rigidity, and consistency are critical. This octagonal street light pole is hot-dip galvanized with a minimum coating thickness of 65 microns, providing strong resistance against rust, moisture, and environmental corrosion. The galvanizing process helps extend service life and reduces maintenance needs, making it a cost-effective choice for bulk procurement and large-scale lighting projects. The pole is manufactured with automatic submerged arc welding for uniform seam strength and a clean, consistent finish. It comes with a bottom flange mounted base plate measuring 200 mm x 200 mm x 12 mm thick, complete with slotted holes for foundation bolt installation. This allows secure anchoring and reliable installation on standard foundations. With a top diameter of approximately 70 mm and a bottom diameter of approximately 130 mm, the pole is engineered to support single-arm or double-arm bracket configurations, making it versatile for different lighting layouts. The 3 mm / 3.15 mm thickness design further contributes to structural performance based on application requirements. For B2B buyers, contractors, municipal suppliers, EPC companies, and lighting project developers, the 9 Mtr Octagonal Pole is an export-ready, factory-direct solution ideal for street lighting pole supply, outdoor illumination projects, and infrastructure development. It is available in numbers with a MOQ of 1, ensuring flexibility for project-specific ordering.
Key Features
| Features | Description |
|---|---|
| Pole Type | Octagonal street lighting pole |
| Height | 9 meters above ground level |
| Material | Mild steel as per IS 2062 Grade A or equivalent |
| Corrosion Protection | Hot-dip galvanized with minimum 65 microns coating thickness |
| Manufacturing Process | Automatic submerged arc welded longitudinal seam |
| Mounting Style | Bottom flange mounted with base plate and foundation bolts |
| Bracket Support | Suitable for single or double arm bracket installation |
| Attributes | Description |
|---|---|
| Product Title | 9 Mtr Octagonal Poles |
| Store Name | VAIRAVA EXIM |
| MOQ | 1 |
| DOM Unit | Numbers |
| Type | Octagonal Street Lighting Pole |
| Height | 9 Meters |
| Material | Mild Steel |
| Material Standard | IS 2062 Grade A or equivalent |
| Shape | Octagonal |
| Top Diameter | 70 ± 2 mm (approx.) |
| Bottom Diameter | 130 ± 2 mm (approx.) |
| Base Plate Size | 200 mm × 200 mm × 12 mm thick |
| Thickness | 3 mm / 3.15 mm |
| Finish | Hot-Dip Galvanized |
| Galvanizing Thickness | Minimum 65 microns |
| Welding | Longitudinal seam welded by automatic submerged arc welding process |
| Mounting Type | Bottom flange mounted |
| Foundation Fixing | Slotted holes for foundation bolts |
| Bracket Provision | Suitable for single/double arm bracket installation |
| Application | Street, commercial, and industrial lighting |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The octagonal cross-section provides improved structural rigidity, better wind resistance, and enhanced stability, making it well-suited for street and industrial lighting applications.
Yes, the pole includes bracket provision suitable for both single-arm and double-arm bracket installations, depending on the project requirement.
The pole is hot-dip galvanized with a minimum 65-micron coating thickness, which helps protect it from rust, moisture, and harsh weather exposure.
The pole is bottom flange mounted and includes a 200 mm × 200 mm × 12 mm base plate with slotted holes for secure foundation bolt installation.
The pole is fabricated from mild steel conforming to IS 2062 Grade A or an equivalent standard.
The longitudinal seam is welded using an automatic submerged arc welding process to ensure consistent weld quality and strength.
