5 kW off Grid Solar Energy Power System(Rooftop);

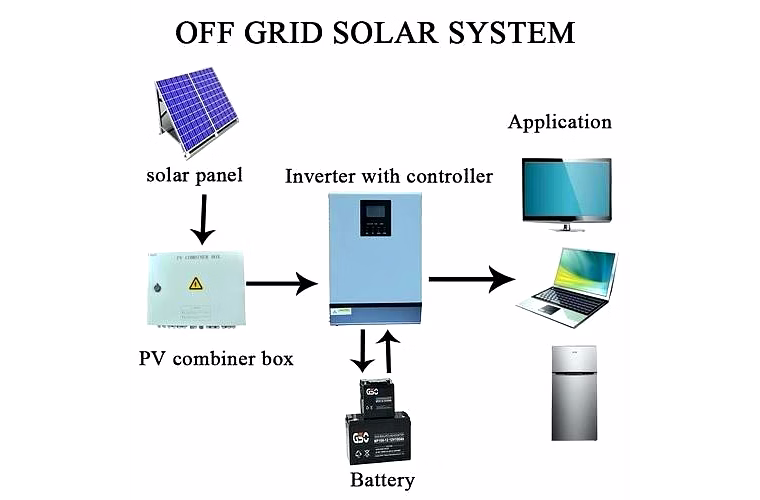

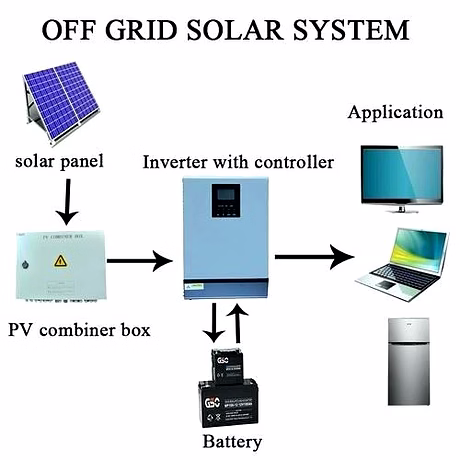

Off-Grid Power Solutions – Forget the power failure worries, these systems store the charge into battery by solar panels and  produces electricity by conversion in batteries and utilize the stored energy by converting it back to AC as and when required.

This Stand-alone Solar Photovoltaic System will have following ranges:

             Items        :         Capacity /Qty

Total plant power    :         5 kW

Module power          :        280 watt

No. of modules.        :       18 Nos.

Hybrid PCU.               :            5 KW

Solar Batteries          :         8×150Ah, 12V

Space required.        :         360 sqft.

Solar Structure         :         GI Chanel

280W solar Module’s Specifications:

STC Rating    :                    280.0 Watts,

PTC Rating    :                    251.2,

Open Circuit Voltage(Voc):   39.5 Volts,

Short Circuit Current (Isc):  9.71 Amps,

Frame:      Aluminum, tampered glass,

Power Tolerance:       0/+5%,

Module Efficiency :    16.7 %,

Required Area       :   18.06 ft²,

Weight.            :           46.7 lbs,

Length.            :           65.94 in,

Width              :            39.41 in,

Height             :            1.22 in,

Why Aktade Solar?

• Highest delivery rate of quality product's supply,
• Reliable & safe delivery schedules,
• Local warranty and quick product support,
• Free Consultation & Support in Real time,
• Meets and exceeds requirements
• Avoids environmental costs of overseas shipping.

Aktade Solar online store for Place online order at:
*****

5 kW off Grid Solar Energy Power system.

• The rising cost of other power sources and the increasing demand of electricity, especially in high power cut or no grid areas, has resulted in increased demand for such systems. The reduction in battery prices over the years has further brought the system cost down.
• The off-grid system need a controller that haldle the output current of solar panel and charge the battery  battery bank connected in off-grid system.
• The work of inverter is to converts the DC charge stored in the battery into 240 V AC electricity, which can then be used for run household appliances.
• The 5KW Solar off-grid rooftop power system can produce up to 20KWH/20 Unit in a day, which are sufficiently run the house loads and charge the batteries for long time backup /autonomy days.
