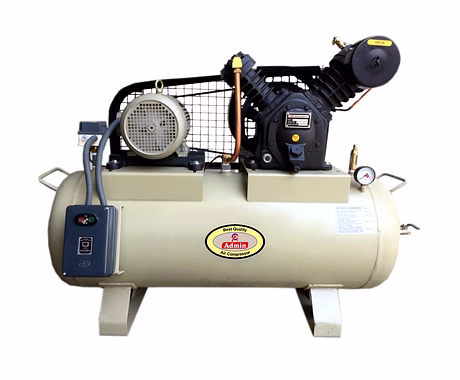

The 5 HP Two Stage Air Compressor SD - 42 TS is a robust and efficient industrial-grade compressor designed for high-performance applications requiring consistent air supply at higher pressures. Featuring two pistons for the two-stage compression process, it maximizes air compression efficiency while reducing energy consumption. The low-pressure (LP) piston measures 4 inches, and the high-pressure (HP) piston is 2.5 inches, with a bore and stroke of 4" x 2.50" for the LP stage and 2.75" stroke for the HP stage. Equipped with a substantial 200-liter tank made of 4mm thick metal (18"x48" dimensions) capable of withstanding pressures up to 450 pounds, the compressor delivers a high airflow of 17 CFM and a maximum pressure of 12 kg/cm², making it ideal for industrial operations that demand reliable and pressure-intensive air supply. Options for motor and starter integration are available upon request. Note that transport, packing, and forwarding costs are separate and borne by the customer. Payment terms require 50% advance upon purchase order and 50% before delivery.
Key Features
| Features | Description |
|---|---|
| Horsepower | 5 HP |
| Number of Pistons | 2 (Two Stage) |
| Low Pressure Piston Size | 4 inches |
| High Pressure Piston Size | 2.5 inches |
| Bore & Stroke (LP Stage) | 4" x 2.50" |
| Bore & Stroke (HP Stage) | 2.75" stroke |
| Tank Capacity | 200 Liters |
| Tank Dimensions | 18" x 48" |
| Tank Thickness | 4 mm |
| Maximum Pressure | 12 kg/cm² |
| Airflow Capacity | 17 CFM |
| Motor & Starter | Available on request |
| Payment Terms | 50% on P.O., 50% before delivery |
| Transport | Customer to arrange |
| Packing & Forwarding | Extra charge |
| Attributes | Description |
|---|---|
| Model | SD - 42 TS |
| Type | Two Stage Piston Air Compressor |
| Power Source | Electric Motor (Optional) |
| Tank Material Thickness | 4 mm, heavy-duty steel |
| Tank Capacity | 200 Liters |
| Tank Dimensions | Diameter 18 inches, Height 48 inches |
| Maximum Operating Pressure | 12 kg/cm² |
| Air Delivery Rate | 17 Cubic Feet per Minute (CFM) |
| Piston Configuration | Dual piston two-stage compression |
| LP Piston Size | 4 inches |
| HP Piston Size | 2.5 inches |
| Bore and Stroke (LP) | 4" x 2.50" |
| Stroke (HP) | 2.75" |
| Motor & Starter Availability | Optional accessory |
| Payment Terms | 50% advance; 50% before delivery |
| Transport & Packaging | Customer responsibility; additional charges applicable |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The motor and starter are not included by default but are available as optional accessories upon request.
Transport and packing & forwarding charges are separate and the responsibility of the customer.
The compressor can deliver a maximum pressure of 12 kg/cm².
It has a low-pressure piston size of 4 inches and a high-pressure piston size of 2.5 inches.
It delivers 17 cubic feet per minute (CFM) of compressed air.
The air tank has a capacity of 200 liters with a thickness of 4 mm.
Country Of Origin: India
5 HP SD - 42 TS
No. Of Piston - 2
LP piston Size - 4"
HP PISTON SIZE - 2.5"
Bore & stroke
4"x 2.50" & 2.75"
Tank - 200 Liter (450 pound 18"x48" Thickness 4 mm)
CFM - 17
Max. Pressure-12 kg
Available With Motor & Stater If Required
Transport in Customer Scope
Packing & Forwarding Extra
Payment terms:- 50% Against P.O. & 50% Before Delivery.
Inclusive of all taxes
