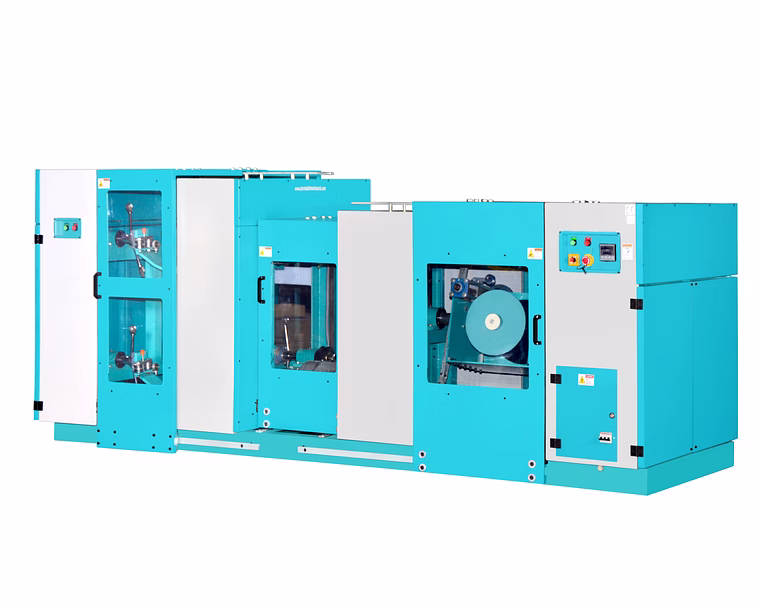

The 2mm to 6mm Rope Making Machine is a state-of-the-art solution designed for industries that require the consistent creation of high-quality rope. Capable of handling strand sizes from 2 mm to 6 mm, this machine boasts advanced features such as adjustable twists and maximum RPM efficiencies that make it ideal for a variety of applications including agricultural, fishing, and construction sectors. With a robust design and automated functions like the digital length counter and auto-stop mechanism, manufacturers can expect optimized production rates with minimal material waste. Whether producing three-ply or four-ply ropes, this machine offers flexibility in production with pay-off capacities that cater to different needs, ensuring that your business can meet customer demands rapidly and reliably.
Key Features
| Features | Description |
|---|---|
| Rope Range | 2 mm to 6 mm |
| Strand Flyer RPM | Max. 1800 RPM |
| Rope Flyer RPM | Max. 1000 RPM |
| Rope Lay | S & Z Twist |
| Adjustable Twist Range | 25 to 90 TPM |
| Pay-Off Package Size | 350 mm dia. x 300 mm Tra. |
| Takeup Capacity | 12 Kg (Approx.) |
| Power Transmission | Timing Belt |
| Motor Capacity | 5 HP / 10 HP |
| Automatic Functions | Digital Length Counter, Door Sensor, Auto Stop on Yarn Break |
| Attributes | Description |
|---|---|
| Models | SSMT-3 / SSMT-6 / SSMF-4 / SSMF-8 |
| Number of Strands (Ply) | 3 Ply / 4 Ply |
| Number of Pay-Off Packages | 1 x 3= 3 / 2 x 3 = 6 / 1 x 4 = 4 / 2 x 4 = 8 |
| Coiling System | Direct Coiling |
| AC Frequency Drive | Included |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This machine can produce ropes ranging from 2 mm to 6 mm in diameter, suited for diverse applications.
The strand flyer can operate at a maximum speed of 1800 RPM and the rope flyer at 1000 RPM.
The 2mm to 6mm Rope Making Machine includes a door sensor and an automatic stop feature that activates when the yarn breaks, ensuring safe operation.
Yes, with a take-up capacity of approximately 12 kg and multiple pay-off package configurations, the machine is suitable for large-scale production.
The machine features a digital length counter for precision, adjustable twist settings, and options for final products on M.S. bobbins.
Brand: shiv shakti mechanical
Country Of Origin: India
Our Rope Making Machine is engineered for producing 2 mm to 6 mm ropes with adjustable twist (25–90 TPM) and dual lay capability (S & Z). Available in 3 or 4 ply models, it supports high-speed strand and rope flyer RPMs up to 1800 and 1000 respectively. Equipped with digital counter, auto-stop system, and timing belt transmission, it ensures efficient and safe production for industrial-grade rope manufacturing.
