The GV-106-2VMT Two Valve ‘T’ Type Manifold is specifically designed for seamless operation in pressure instruments combining both pipe and flange connections. This manifold is engineered for critical applications involving differential pressure, level control, and process transmitters. Featuring a robust construction capable of withstanding maximum working pressures of up to 6000 psi (414 bar) at temperatures ranging from -65°F to 464°F, this manifold ensures reliability and safety across diverse industrial environments. The valve's unique diversity in configuration is ideal for quick installation and provides a compact solution for managing pressure system interfaces. Crafted from industry-grade materials such as A479 304 and A479 316 stainless steels, the GV-106-2VMT is not only durable but also features color-coded caps that facilitate easy identification of valve functionality. Every unit undergoes 100% factory testing, guaranteeing quality and performance with heat code traceability included.
Key Features
| Features | Description |
|---|---|
| Maximum Working Pressure | 6000 psi (414 bar) at 100°F (38°C) |
| Working Temperature Range | -65°F (-54°C) to 464°F (240°C) |
| Material Composition | A479 304, A479 316, A182 GRF 316 |
| Configuration Diversity | Suitable for differential pressure, level, and transmitters applications |
| 100% Factory Tested | All units undergo rigorous testing for reliability |
| Color-Coded Valve Function Caps | Easy identification of valve function |
| Optional Gland Packing Material | P.T.F.E or graphite (for high temperature up to 450°F) |
| Attributes | Description |
|---|---|
| Body Material | SS 316 |
| Gland Body Material | SS 316 |
| Gland Retainer Material | SS 304 |
| Check Nut Material | SS 304 |
| Spindle Material | SS 316 |
| Gland Packing | P.T.F.E |
| Gland Ring Material | SS 304 |
| Gland Washer Material | SS 304 |
| Trim Material | SS 316 |
| Dust Cap Material | Rubber |
| Handle Material | SS 304 |
| Grub Screw Material | SS |
| Lock Pin Material | SS 304 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The GV-106-2VMT manifold is suitable for applications involving differential pressure, level control, and process transmitters.
The maximum working pressure is 6000 psi (414 bar) at 100°F (38°C).
Yes, it can operate within a temperature range of -65°F (-54°C) to 464°F (240°C).
It is constructed from A479 304 and A479 316 stainless steel, ensuring durability and resistance to corrosion.
Yes, each unit includes heat code traceability for assurance of material integrity.

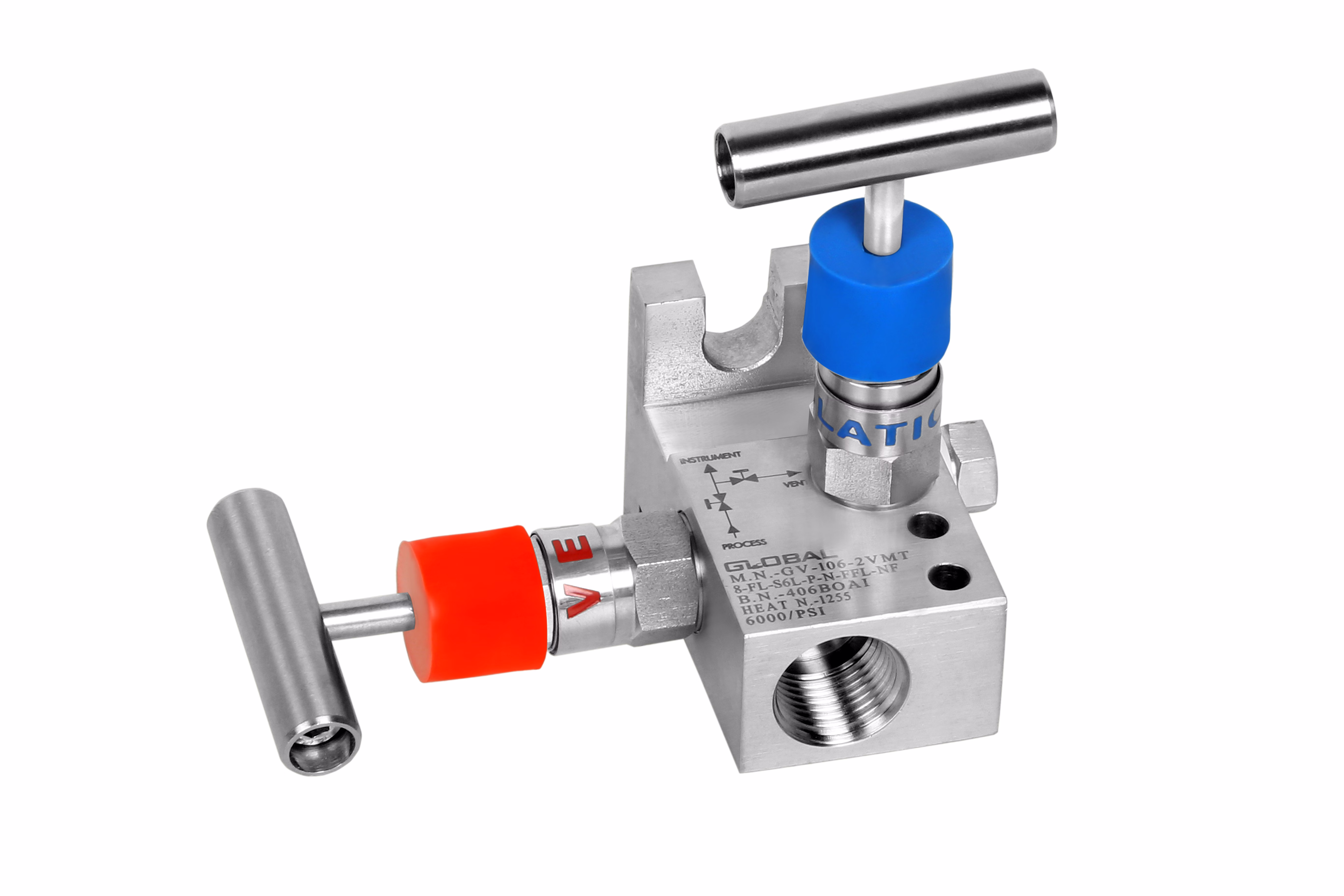

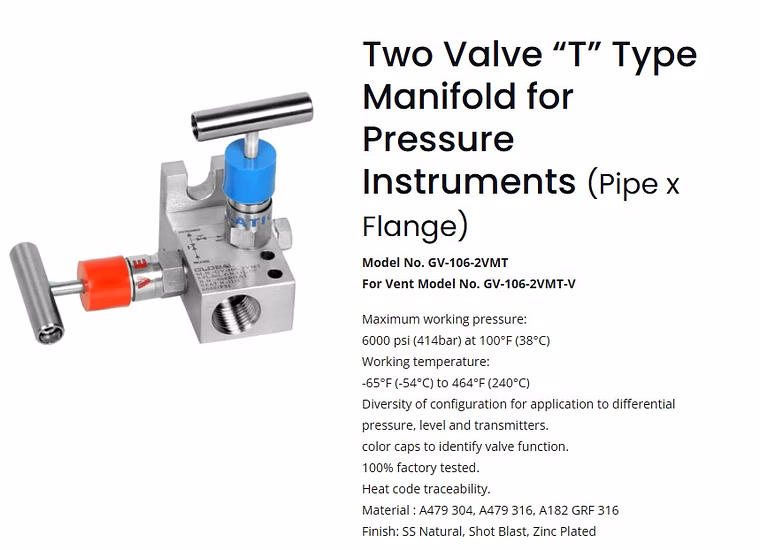

Two Valve “T” Type Manifold for Pressure Instruments (Pipe x Flange)
Model No. GV-106-2VMT
For Vent Model No. GV-106-2VMT-V
Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
Working temperature:
-65°F (-54°C) to 464°F (240°C)
Diversity of configuration for application to differential
pressure, level and transmitters.
color caps to identify valve function.
100% factory tested.
Heat code traceability.
Material : A479 304, A479 316, A182 GRF 316
Finish: SS Natural, Shot Blast

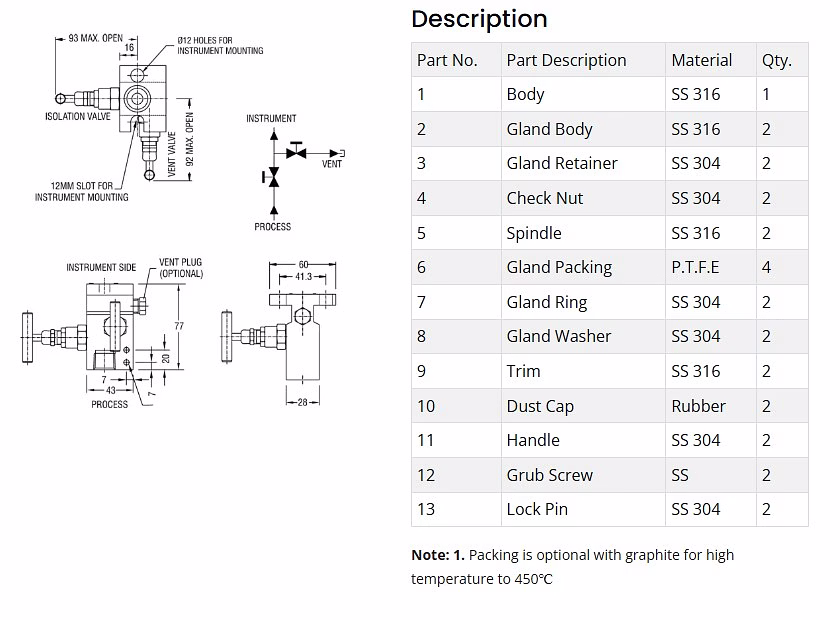

Description
Part No. Part Description Material Qty.
1 Body SS 316 1
2 Gland Body SS 316 2
3 Gland Retainer SS 304 2
4 Check Nut SS 304 2
5 Spindle SS 316 2
6 Gland Packing P.T.F.E 4
7 Gland Ring SS 304 2
8 Gland Washer SS 304 2
9 Trim SS 316 2
10 Dust Cap Rubber 2
11 Handle SS 304 2
12 Grub Screw SS 2
13 Lock Pin SS 304 2
Note: 1. Packing is optional with graphite for high temperature to 450℃
