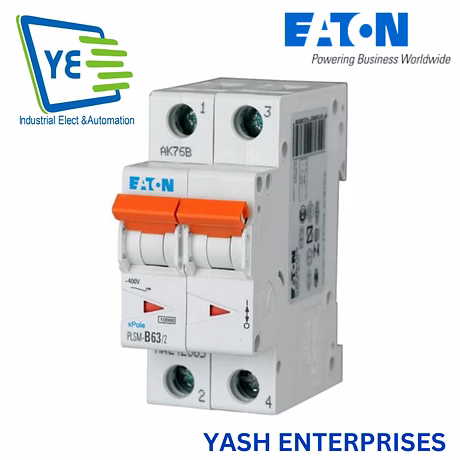

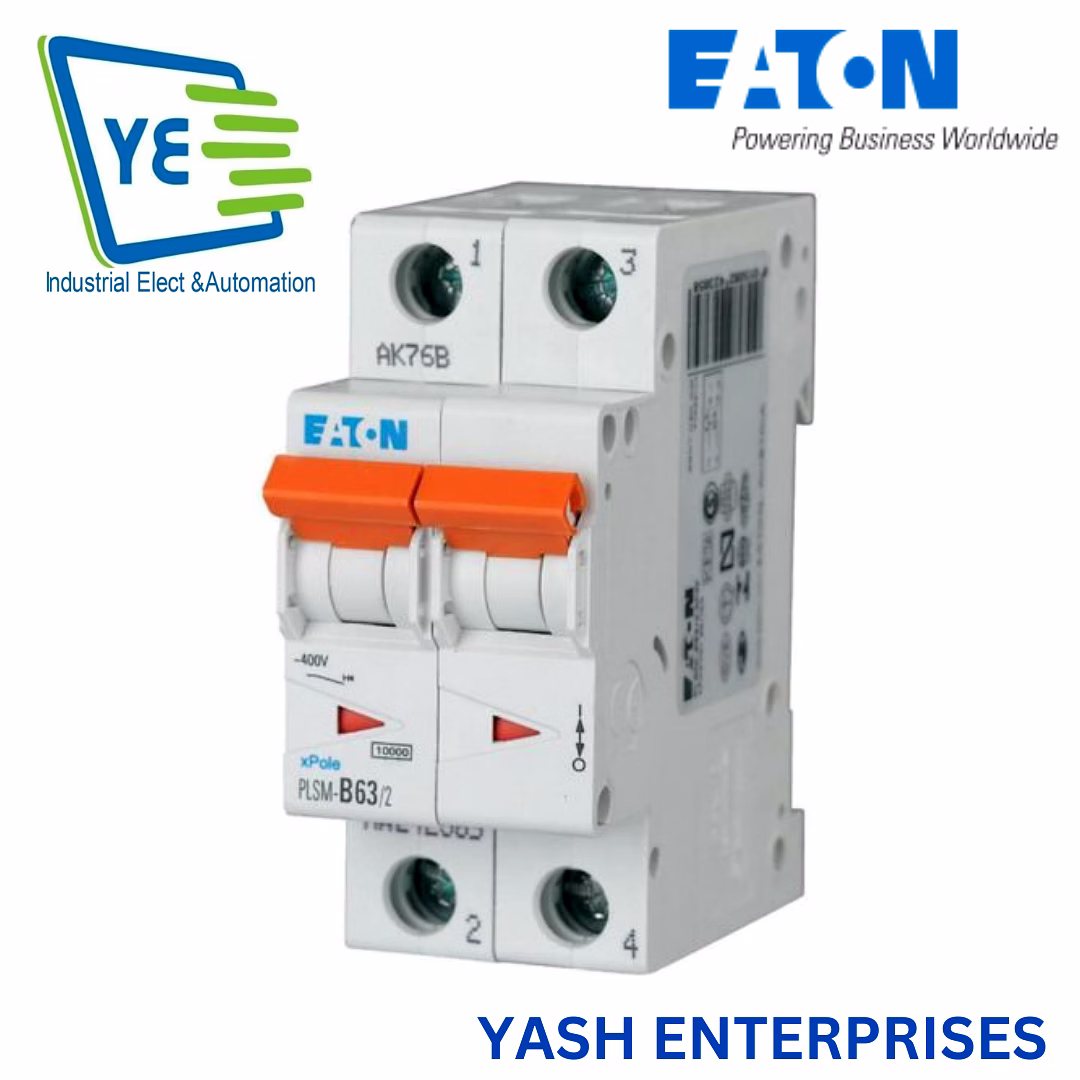

The 2-63A DP MC 4P manufactured by Eaton is a high-quality, 4-pole double-pole miniature circuit breaker designed for reliable protection of electrical circuits in commercial and industrial applications. With a rated current range of 2 to 63 amps, this device effectively safeguards electrical installations against overload and short circuits. Eaton’s 4P DP MC circuit breaker features a compact modular design enabling easy installation within distribution boards, facilitating efficient space management. Engineered for durability and consistent performance, it is suitable for various loads and provides enhanced safety and compliance with international electrical standards. This breaker is ideal for protecting three-phase circuits in complex electrical systems, ensuring operational continuity and security of electrical equipment.
Key Features
| Features | Description |
|---|---|
| Rated Current Range | 2 to 63 Amperes |
| Pole Configuration | 4 Pole (4P) |
| Type | Double Pole Miniature Circuit Breaker (DP MC) |
| Manufacturer | Eaton |
| Application | Protection of three-phase electrical circuits |
| Mounting | DIN rail mounting for modular installation |
| Protection Features | Overload and short-circuit protection |
| Compliance Standards | Meets IEC/EN standards for circuit breakers |
| Durability | High-performance lifespan with robust construction |
| Attributes | Description |
|---|---|
| Rated Voltage | 230/400 V AC |
| Breaking Capacity | Defined as per Eaton specifications, typically 10 kA or higher |
| Trip Characteristic | Thermal-magnetic trip unit |
| Standards Compliance | IEC 60898, EN 60898 |
| Operating Temperature | -5°C to +40°C |
| Mounting Type | DIN rail 35mm |
| Dimensions | Compact size suitable for modular switchboards |
| Connection Type | Screw terminal connections |
| Color | Standard Eaton black/grey casing |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The maximum current rating for this model is 63 Amperes, suitable for various industrial load requirements.
Yes, the 4-pole configuration makes it ideal for protecting three-phase circuits.
Yes, it is designed for easy installation on a 35mm DIN rail commonly used in distribution boards.
It provides both overload and short circuit protection through a thermal-magnetic trip unit.
Yes, it complies with IEC 60898 and EN 60898 standards for miniature circuit breakers.
