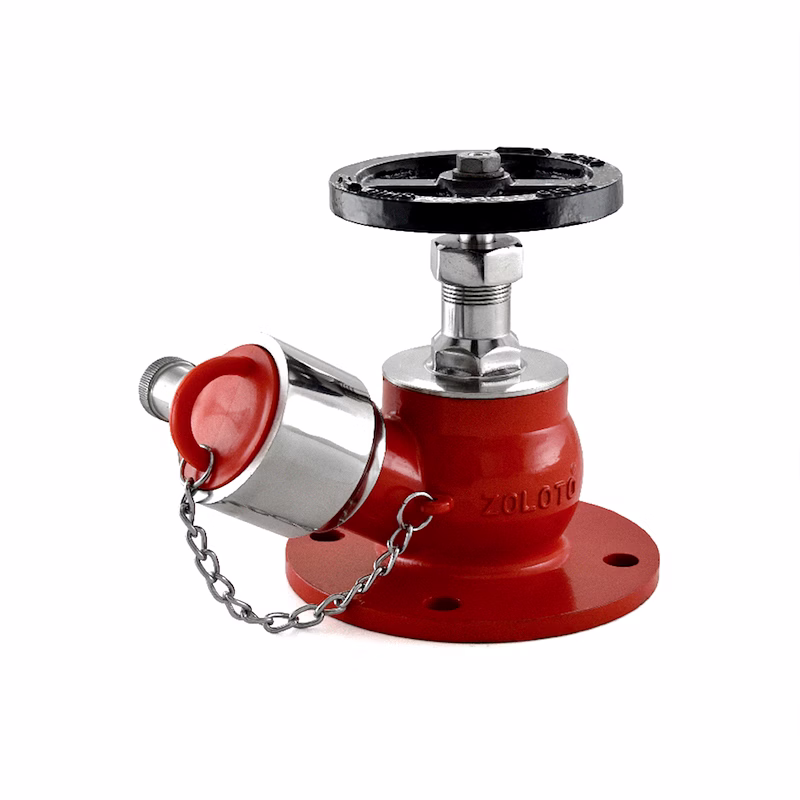

Salient Features
*Design Standard IS 5290.
*Confirming to Type A specification.
*Screwed in Bonnet having instantaneous coupling with single outlet.
*PTFE Gland Packing for longer life and smooth operation of stem.
*Large flow way area to get full flow of water.
*Leakage proof by virtue of elastomer seat.
*Smooth operation of blank cap for quick mounting of water pipe.
*Life long rust free service.
Test Pressure (Hydrostatic) :
Shell : 21 kg/cm²g (300 psig)
Seat : 14 kg/cm²g (200 psig)
Maximum Working Temperature : 110°C
Water
Materials
| P.No | Name of Part | Material of Construction | Specification | Qty. |
| 1 | Body | Stainless Steel | IS 3444 Gr. 1 | 1 |
| 2 | Chain | Carbon Steel | – – – | 1 |
| 3 | Disc Nylock Nut | Carbon Steel | – – – | 1 |
| 4 | Washer | Stainless Steel | IS 6603 Gr. X04Cr19Ni9 | 1 |
| 5 | Disc Washer | Rubber | IS 937 | 1 |
| 6 | Disc Holder | Stainless Steel | IS 3444 Gr. 1 | 1 |
| 7 | Check Nut | Stainless Steel | IS 3444 Gr. 1 | 1 |
| 8 | Stem | Stainless Steel | IS 6603 Gr. X04Cr19Ni9 | 1 |
| 9 | Bonnet | Stainless Steel | IS 3444 Gr. 1 | 1 |
| 10 | Gland Packing | Asbestos Thread | – – – | _ |
Sizes / Dimensions
| Size (Inches) | Size (mm) | ØA | ØB | C +3 | D ~ | ØE ~ |
| 3 | 80 | 75 | 200 | 12 | 230 | 150 |
