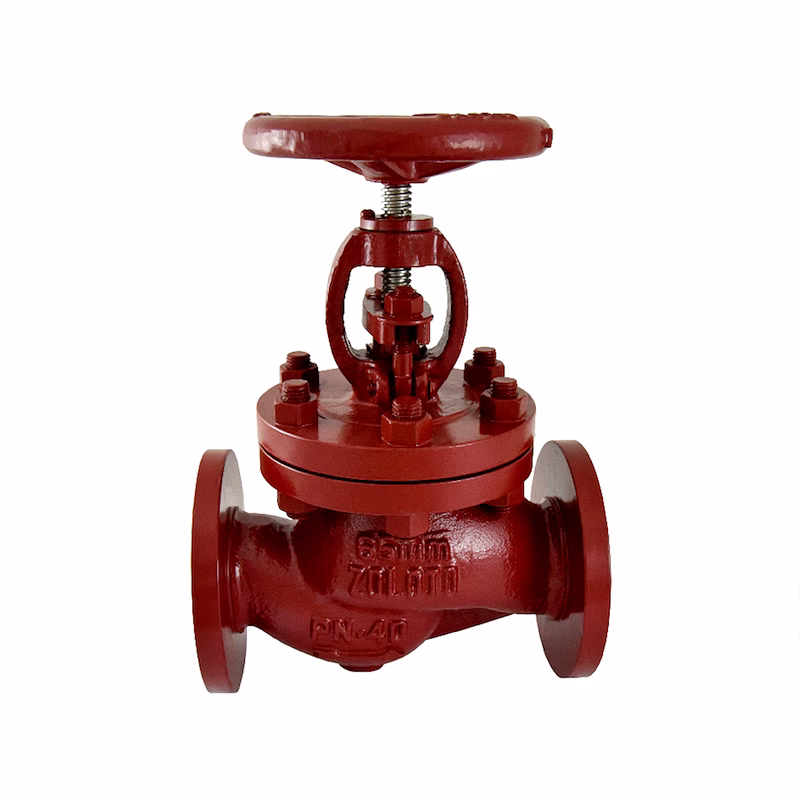

1071 Cast Steel Globe Steam Stop Valve (Flanged)

Inclusive of all taxes

Add to Cart
-
+
Continue to checkout
Send Inquiry

Salient Features

  *Flanged Ends to DIN 2545 PN 40.

  *Straight Pattern, Outside Screw, Yoke Type, Rising Stem, Bolted Bonnet.

  *Renewable 13% Cr. Stainless Steel (S.S 410) working parts.

  *Minimum pressure drop inside the body due to streamlined body design.

  *Handwheel Operated.

  *Provision for re-packing under pressure.

  *Suitable for thermic fluid application also.


Test Pressure (Hydrostatic) :

Shell : 60 bar (870 psig)

Maximum Working Pressure : 40 bar (580 psig)

Maximum Working Temperature : 425°C


Suitable For

Steam, Water, Oil



Materials

P.No. Name of Part Material of Construction Specification Qty.
1 Nut Carbon Steel – – – 1
2 Washer Carbon Steel – – – 1
3 Handwheel S.G Iron IS 1865 Gr. 400 / 15 1
4 Stem Stainless Steel ASTM A 276 Type 410 1
5 Yoke Bush Aluminium Bronze  BS EN 1982 AB – 1 1
6 Locking Screw Carbon Steel IS 1367 1
7 Gland Flange Cast Steel IBR 73-80 Gr. B 1
8 Gland Stainless Steel ASTM A 276 Type 410 1
9 Bonnet Cast Steel IBR 73-80 Gr. B 1
10 Gland Packing Braided Graphite – – – _
11 Gasket Spiral Wound S.S (Type 316)
Graphite Filled		 – – – 1
12 Back Seat Bush Aluminium Bronze BS EN 1982 AB – 1  1
13 Stem Nut Stainless Steel ASTM A 276 Type 410 1


Sizes / Dimensions

Size (Inches) Size (mm) A ±1.5 B ~ ØC ~
1/2 15 130 190 120
3/4 20 150 190 120
1 25 160 215 150
1 1/4 32 180 230 150
1 1/2 40 200 259 180
