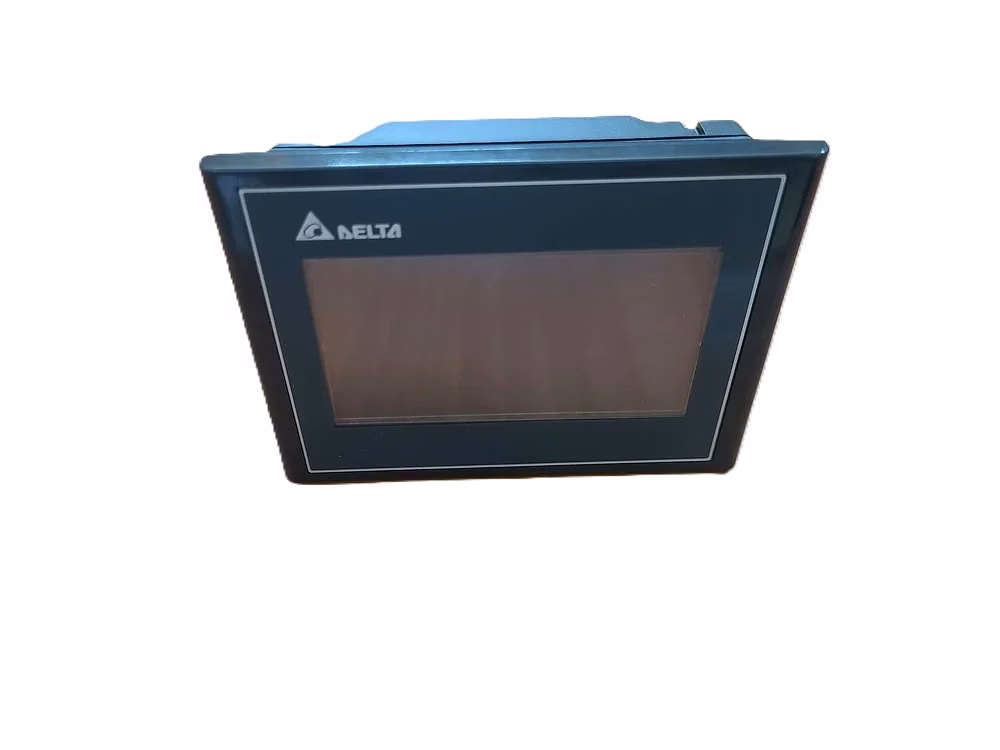

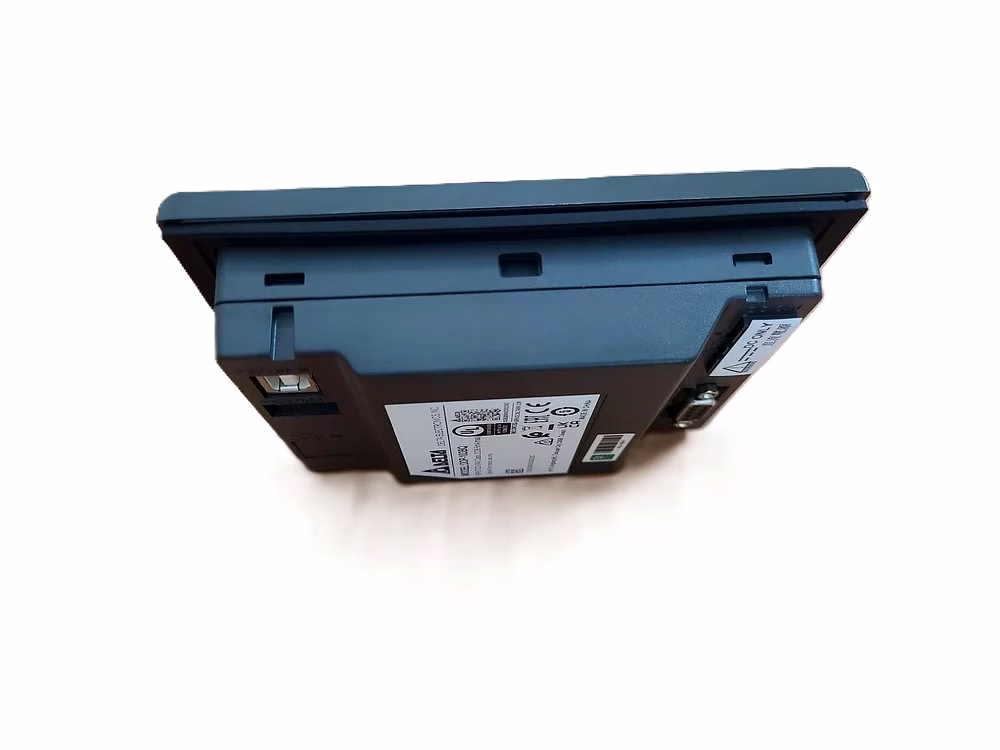

The Delta DOP-103BQ HMI is a compact and versatile industrial touchscreen human-machine interface designed for effective automation control in factory settings. Featuring a 4.3-inch TFT display with resistive touch technology, this HMI panel offers reliable, user-friendly operation for machine control and monitoring. It supports multiple connectivity options including Serial, USB (Host and Slave), and Ethernet, enabling seamless communication with PLCs, inverters (VFDs), servo drives, sensors, and other automation components. The Delta DOP-103BQ boasts an IP65-rated front panel, ensuring dust and splash resistance suitable for industrial environments. Powered by a +24 V DC supply and housed in a compact 137×103×37 mm enclosure weighing approximately 280 grams, it integrates easily into existing control systems. Programming is achieved through Delta's proprietary DOPSoft software, providing intuitive interface design and efficient project management. USB connectivity enables convenient data logging and firmware updates, making the DOP-103BQ an ideal choice for dynamic factory automation applications.
Key Features
| Features | Description |
|---|---|
| Display Type | 4.3-inch TFT resistive touchscreen |
| Connectivity Options | Serial, USB Host, USB Slave, Ethernet |
| IP Rating | IP65 front panel protection |
| Power Supply | +24 V DC |
| Dimensions | 137×103×37 mm |
| Weight | ~280 g |
| Programming Software | Delta DOPSoft |
| Compatibility | PLCs, inverters (VFDs), servo drives, sensors |
| USB Host Function | Supports USB flash drives for data logging and program updates |
| USB Slave Function | Connects to PC for program upload/download |
| Attributes | Description |
|---|---|

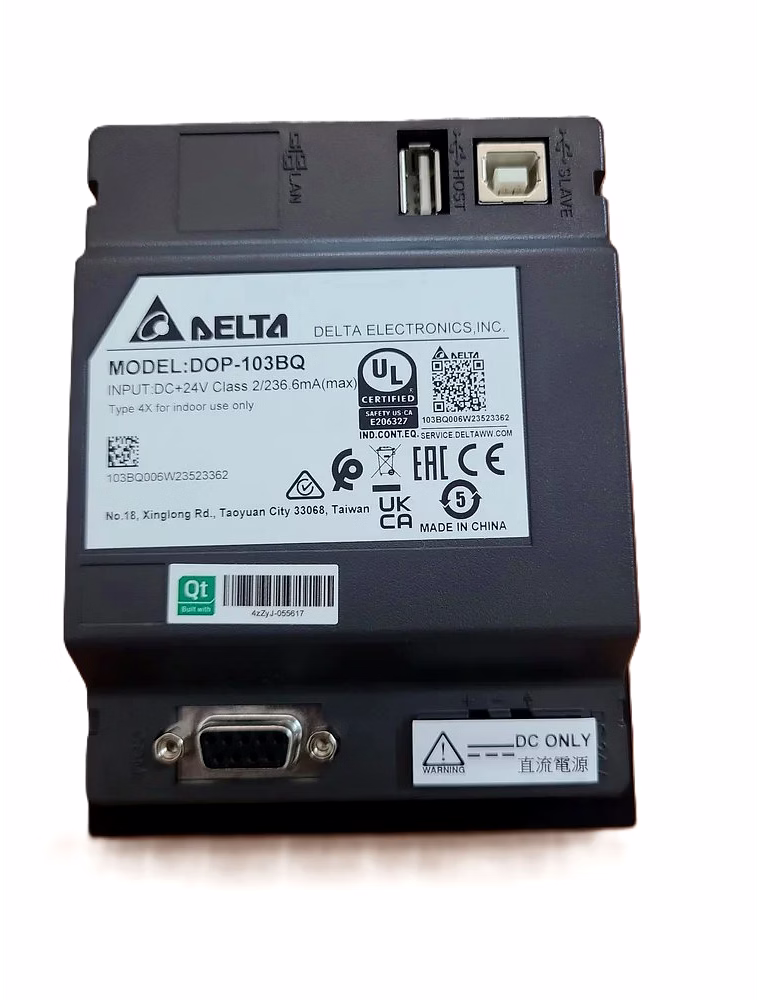

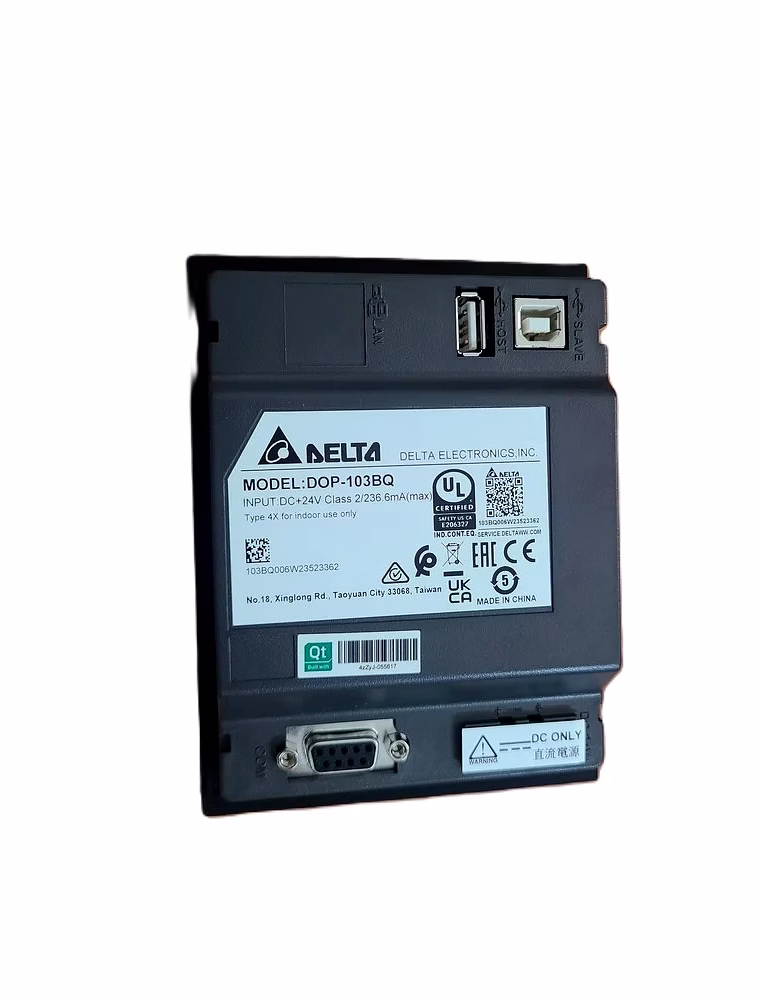

| Model | DOP-103BQ |
| Display Size | 4.3 inches |
| Display Resolution | 480 x 272 pixels |
| Touch Type | Resistive Touch |
| Communication Ports | Serial (RS232/RS485), USB (Host & Slave), Ethernet |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 60°C |
| Material | Industrial-grade plastic enclosure |
| Mounting Type | Panel mount |
| Compliance | CE, UL certified |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, it has a USB Host port that allows connection of USB flash drives for data logging purposes.
No, the Delta DOP-103BQ is programmed specifically using Delta's proprietary DOPSoft software.
The front panel has an IP65 rating protecting against dust and water splashes, making it suitable for harsh indoor and semi-outdoor environments.
It supports Serial (RS232/RS485), USB Host and Slave, and Ethernet interfaces for connectivity with various automation devices.
Yes, it is compatible with servo drives and can control and monitor them when connected through supported communication protocols.
Country Of Origin: India
Delta DOP‑103BQ HMI Panel is a compact industrial touchscreen HMI for automation control with:
4.3″ TFT display, resistive touch
Serial/USB/Ethernet connectivity
IP65 front rating
Dimensions ~137×103×37 mm, ~280 g
Powered by +24 V DC
Programmed via Delta DOPSoft
Used with PLCs / drives in factory automation

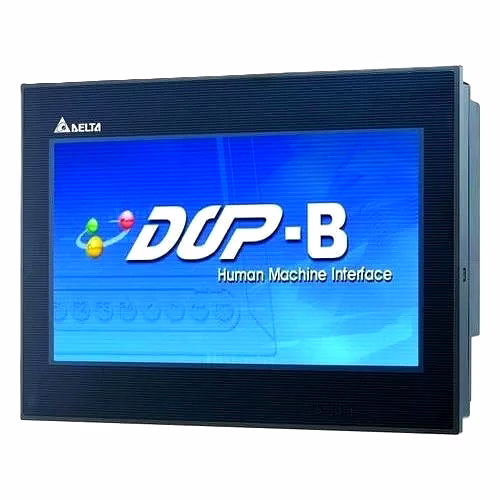

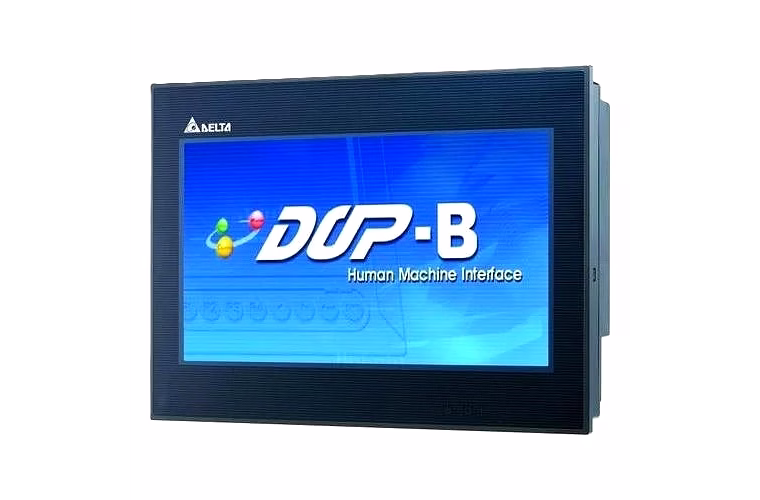

Product: Delta DOP-103 series Human-Machine Interface (HMI)
Typical Model: DOP-103BQ / DOP-103WQ (4.3″)
Brand: Delta Electronics (automation product lineup)
Type: Touchscreen panel for machine control & monitoring
Works with PLCs, inverters (VFDs), servo drives, sensors, and other automation devices.
USB Host lets you connect USB flash drives for data logging or update programs.
USB Slave used for connecting to a PC for program upload/download.
