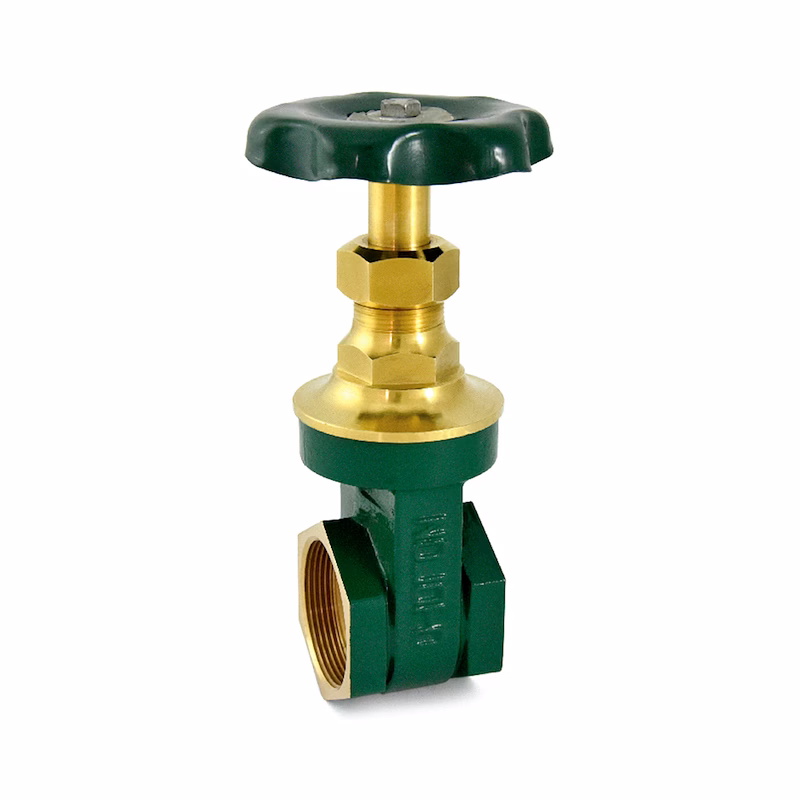

1006 Bronze Gate Valve (Hex. Type) (Screwed)

Inclusive of all taxes

Add to Cart
-
+
Continue to checkout
Send Inquiry

Salient Features

   *Screwed Female Ends to IS 554 / BS 21 / ISO 7.

   *Screwed in Bonnet, Inside Screw, Non-Rising Stem, Integral Seat.

   *Forged Brass Bonnet, Wedge, Stem and Gland Nut.

   *Body designed for convenient fitting where space constraint is the factor.

   *Designed sheet metal handwheel for a firm grip and convenient operation.

   *Premium Quality PTFE Gland Packing.


Test Pressure (Hydrostatic) :

Shell : 24 kg/cm²g (340 psig)

Seat : 16 kg/cm²g (225 psig)

Maximum Working Temperature : 225°C


Suitable For

Water, Oi



Materials

P.No.  Name of Part Material of Construction Specification  Quantity
1 Screw / Bolt Carbon Steel (Zinc Plated) – – – 1
2 Washer Carbon Steel (Zinc Plated) – – – 1
3 Hand wheel Sheet Metal (Powder Coated)  – – – 1
4 Stem  Forged Brass / Bronze S 6912 Gr. FLB / IS 318 Gr. LTB 2*  1
5 Gland Nut Forged Brass IS 6912 Gr. FLB 1
6 Gland Forged Brass IS 6912 Gr. FLB 1
7 Gland Packing PTFE – – –  _
8 Bonnet Forged Brass / Bronze IS 6912 Gr. FLB / IS 318 Gr. LTB 2* 1
9 Check Nut Forged Brass IS 6912 Gr. FLB 1
10 Body Bronze IS 318 Gr. LTB 2 1
11 Wedge Forged Brass IS 6912 Gr. FLB 1
12 Name Plate Aluminum – – – 1


Sizes / Dimensions

Size (Inches) Size (mm) A ±1.5 B ~   ØC ~ D
1/4* 8* 35 92 60 1/4"
3/8* 10* 38 96 60 3/8"
1/2 15 41 103 60 1/2"
3/4 20 45 122 65 3/4"
1 25 50 137 70 1"
1 1/4 32 54 150 90 1 1/4"
1 1/2 40 60 166 90 1 1/2"
2 50 65 200 110 2"
2 1/2* 65* 76 250 120 2 1/2"
3* 80* 92 292 138 3"
4 100* 105 365 160 4"
