GO SOLAR  SAVE ENERGY!

Stay cool, feel comfort, & breath carbon-less

SOLAR AC is such designed that it takes very low wattage. “Solar air conditioner” has three options — 1st Solar power, 2nd Battery bank, & 3rd Electricity grid. Solar AC the MGM Technology (Compressor) works like an accelerator in a car. When compressor needs more power, it gives it more power.

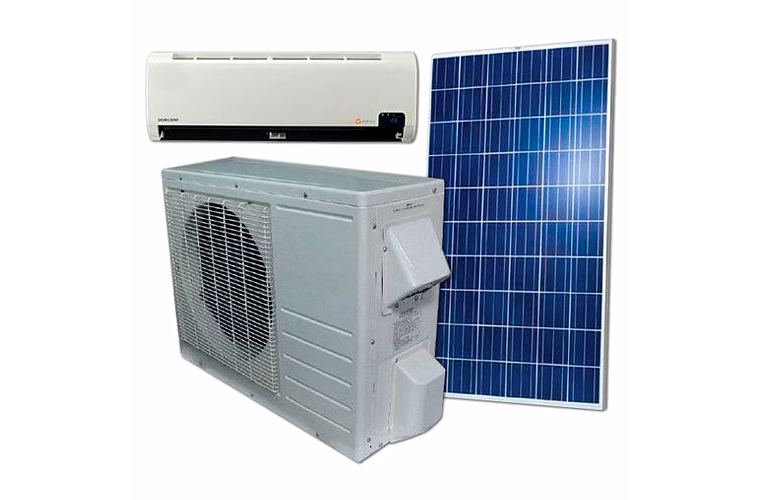

1.5 ton Solar air conditioner

Stay cool, feel comfort, & breath carbon-less

When it needs less power, it gives less power. With this technology, the compressor is always on, but draws less power or more power depending on the temperature of the incoming air and the level set in the thermostat. The speed and power of the compressor is adjusted appropriately. This technology is currently available only in split air conditioner.

Specifications of 1.5 ton solar air conditioner;

Wattage:   9OO watt

Starting Load: 100 watt

Running Amp: 2 to 4.5 Amp

Electric saving: Up to 80%

Jerking:   No Jerk,

Compressor:  BLDCMGM,

Run on Direct Solar:  240 VOC,

Compatible Solar Compatibility: Direct Solar Panel Compatible with 2500 VA Plant with Inverter,

Unit Consumption on Electricity (per 10 Hrs):   5 to 7 Units,

*This solar air conditioner is tested by electronics and quality development center (Govt. of India) Regular Air Conditioner Solar Air Conditioner.

MORE TECHNICAL DATA;

S.No| Specifications| Model SWAY 1.5 ton

01.  Capacity(Ton) : 1.5 Ton,

02.  Cooling Capacity : BTU 13500 to 17000,

03.  Starting Current Amp: 0.5Amp-0.8Amp,

04.  Running Current Amp: Min 0.8,Max 4.5,

05.  Air Flow : 424/750,

06.  Refrigerant : R410/R32,

07. Per Hour Unit Consumption: 0.5-0.8 U/h

08. Compressor : Magnetic/vibratic

09. Air Filter:  3 Stage antibacterial

10. Electricity Saving Comparison to Other AC : Up to 80%

11. Power Input : 190V-250V AC

12.  Sound Level (H/M/L) : 38/34/31(Natural sound),

13. Noise level : 33Dba

14. indoor Unit Dimensions: 895x360x295 mm, net Weight: 10.9 Kgs,

15. Outdoor unit Dimensions: 915x600x350 mm, Net Weight : 33 Kgs,

16. Power source Rating : 6Amp MCB

17. Power supply to Indoor with max Piping Length 15 ft.
