UY TRIENVIRO PRIVATE LIMITED

The Membrane Bio Reactor (MBR) is the technology of membrane separation

combining with traditional sewage biology treatment tech. MBR holds the

activated sludge and big molecule organics in aeration tank, increases the sludge

concentration.

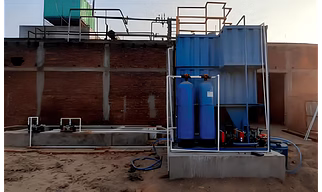

UY Trienviro designs, fabricates, installs and commissions different capacities of packaged sewage treatment plants as per the customer's requirements. These are suitable for rural areas, highway rest stops, hotels, restaurants and

hospitals mainly where population is small or space is less or required plant capacity is small.

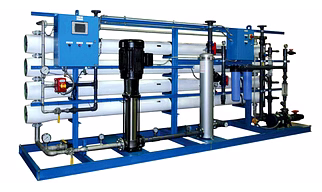

Reverse Osmosis is a completely self-contained unit provided with all internal

and external water connections by means of plastic piping for feed water to be

connected to the source of water, product water and reject water which is

suitable for high pressure operation and for drinking water use.

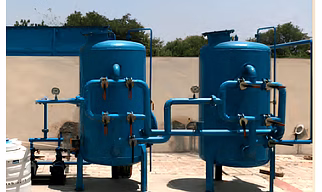

Activated Carbon Filter (ACF) works on the principle of adsorption. The filter media adsorbs or reacts with pollutant

molecules, and then filtered water is drained out.Activated carbon which is used as a medium to remove contaminants is a

natural material derived from coconut shells, lignite, bituminous coal, etc.

Softner is used to remove the hardness of wastewater using the Ion Exchange process. The hard water flows through the bed of cation resin which causes the calcium and magnesium ions in the hard water to be exchanged for sodium ions. UY Trienviro manufactures softeners in MSEP, SS, and FRP tanks using high-grade resin pressure gauges and valves. We also provide customized solutions.

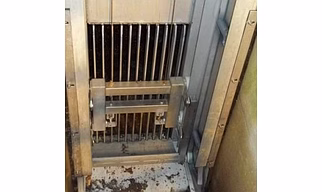

Bar screens are used in the primary treatment of effluent/sewage to segregate larger impurities from the wastewater. The main purpose is to remove larger debris from the effluent so that it doesn’t harm the electro-mechanical equipment in the plant. We can provide it in MOC such as MS, SS, FRP, MSEP depending upon the effluent and requirement. The porosity ranges from 2 mm to 20 mm.

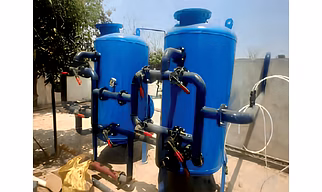

In Multi Grade Filter or Pressure Sand Filter, water is passed through multiple layers of filter media consisting of graded sand,

pebbles and gravels layers. This arrangement captures contaminants in the media bed and filtered water passes into the

discharge manifold at the bottom of the tanks.

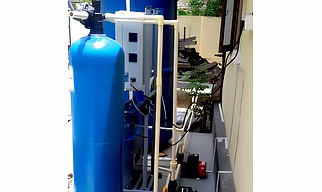

UYT JAL YU is a compact wastewater treatment plant having excellent capabilities to treat tough effluents of industries such as dairy, tannery, hospitals etc. It works on a plug – n – play model and takes very less footprint

and energy. It uses advanced oxidation technology to oxidize various organic impurities and to treat the effluent up to the required parameters.

Advantages :-

. Low Maintanance

. Low Footprint

. Non Conventional

. Long Life

. Plug-n-Play

Glass-Fused-to-Steel (GFS) tanks, also known as Glass-Lined-Steel (GLS) tanks are typically made using a process called enameling, which involves fusing two materials enamel frit and raw steel together at a high temperature ranging between 850-940 Deg C in the tunnel oven to achieve the best properties of both – the strength and flexibility of steel combined with the corrosion resistance of glass.

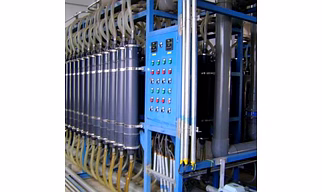

Ultra-Filtration (UF) is an important technology used for the production of high-purity water in many industries. When strategically combined with other purification technologies in a complete water & waste water system, UF membranes can remove high molecular-weight substances, colloidal materials, silt turbidity, organic/inorganic polymeric molecules, algae, particulate matters, suspended solids and all microorganisms from water & waste water.

UY Trienviro designs UF plants for a variety of industries & commercial applications that require high quality equipment with a fast delivery and competitive pricing.

UY Trienviro is offering revolutionary technology for aeration. UYT Aerator is the second-generation-aeration system, which maintains traditional aerator advantage and improves the installation and O&M experience of the wastwater treatment plant. UY Trienviro Aerators have a specially designed bubble-cutting mode. The bubble is smaller and the oxygen utilization rate is higher. DO value in the pool is maintained. The airflow is ejected from the nozzle at high speed, forming a strong negative pressure at the bottom of the aerator, and the sewage and activated sludge at the bottom of the aerator are sucked into the aerator to achieve the first efficient cutting.

Tube Settlers are used in solid and liquid separation. It separates solid sludge from the wastewater. This process is purely based on gravitational. Media used in tubes settler increases the settling capacity. Multiple tubular channels are sloped

at an angle of 60° and are adjacent to each other, which combine to form an increased effective settling area. pumped at a uniform rate to the plant.

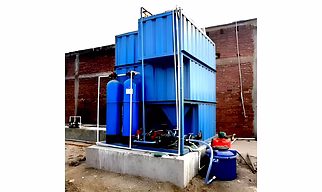

UY Trienviro designs, fabricates, installs and commissions different capacities of packaged effluent treatment plants as per the customer's requirements. These are suitable for small factories, temporary work stations or sites, mines. The

treatment scheme starts from bar screen, oil & grease trap, that flows to equalization tank which allows the flows coming to the plant to be held and pumped at a uniform rate to the plant.
