NOVA INSTRUMENTS PVT. LTD.

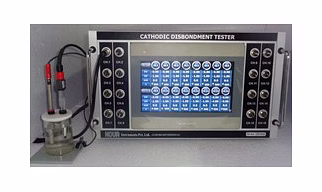

“NOVA” CATHODIC DISBONDMENT TESTER – HMI TOUCH SCREEN MODEL

Cathodic Disbondment is the loss of adhesion between a Cathodic coating and its metal substrate due to the Products of cathodic reaction (corrosion reaction) that take place in the interface of coatings.

FEATURES:

• Use for inspection of Coating quality as per ISO 21809-1, DIN 30670, CAN/CSA Z245.20, [ASTM A775 / A775M-16 TEST METHOD ASTM G-8, ASTM G-95, ASTM G-80, ASTM G-42, EN 10290 ANNEX E, ISO 15711 (E), NF A 49-711 Standard.]………………………..

            Note : With required additional accessories as per different standard – Quoted separately OR will be quoted as per

                        requirement.

• Algorithm developed to maintain constant Voltage throughout the test.
• As per the standard – 8 hour test to 30 day test can be performed.
• Programmable timer built in for continuous process.
• All channels can run simultaneously as well as individually.
• Individual display and control
• Compact Electronic design
• Compatible with “NOVA” specially designed Sand Bath. [Available Optional]

“NOVA” GEL PLATE FOR RESIN TEST-PID CONTROL

• COMPACT MODEL-STANDARD MODEL- (AS PER CANADIAN STANDARD)


TECHNICAL SPECIFICATION:

=======================

SIZE OF HOT PLATE : 150 x 150mm approx.

THICKNESS OF TOP PLATE : 25mm approx.

TEMPERATURE RANGE : R.T.+ 15° C above ambient to 250°C surface Temp.

RESOLUTION : 0.1° C

CONTROL ACCURACY : ± 3°C or better

SURFACE TEMPERATURE UNIFORMITY : Within ± 1% FSD or ± 3°C or better within

                                                          120mm x 120mm surface area from center.

Complete with

- Battery operated digital timer (Timing Device)

- Draw Down Tool

- Utility Knife

“NOVA” FIXED RADIUS MANDREL BEND TESTER - AUTOMATIC WITH PLC CONTROL – TOUCH SCREEN MODEL

The instrument is designed for Fixed Radius Bending suitable for  bending of sample of size 210mm x 25mm x 20mm (including 6mm coating ) [L x B x T] suitable for 6.4 to 20 mm thick sample within 7 to 10 sec Max.

FEATURES:

Design as per CANADIAN STANDARD Z245 20 02.

FLEXIBILITY OF COATING.

Automatic with PLC Control model

Touch Screen Display

Hydraulic System.

Castor Wheel for Movability.

Heavy Duty Pipe Framework body.

High & Low Level Limit cut off system.

1 phase/3 Phase Motor With Gear Pump Built-in for Hydraulic Pressure Generation.

Pressure Setting Valve, Factory Set Built In.

Provided with shock Absorbers Pad.

SAFETY FEATURES :

Built in pressure transmitter with PLC to cut off overload pressure [Factory Set].

Low level limit cut off.

High level limit cut off.

Shock Absorbers Pad.

OPTIONAL ACCESSORIES FOR ABOVE:

Mandrels made from 4140 or equivalent Alloy 1” (25mm) thick approx.:

[A] 110, 120, 125, 130, 135, 140, 145, 150, 155, 160, 170, 180, 190, 200

[B] 225, 250, 300, 350, 400, 450, 500, 600, 700, 800, 950, 1000mm.

"NOVA" Sample preparation using dipping-coating unit (Single and Double) is designed to keep operator involvement as minimum as possible by automizing process. Speed, duration are regulated accurately by microprocessor control.

SALIENT FEATURES

• Precise control dipping- Coating
• Equal layer coating on sample surface
• Pneumatic guided & microprocessor control.
• Effective & fast coating
• Sturdy & robust instrument suitable for industrial environment
• Detail instructions on instrument for Non-Skilled Operator
• Sample holding arm designed for quick operation
• Simplest process for coating.
• Plug and ready to use

SUITABLE FOR SAMPLE SIZE

• 25mm x 200mm x 6.4mm (W X LX T)

• 100mm x 100mm x 6.4mm (W X Lx T)

[FOR OTHER SIZE PLEASE CONTACT US]

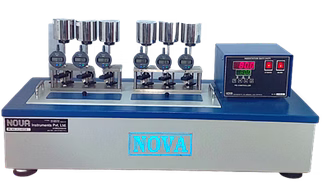

CAPACITY : 6 Nos.

INDENTER : 1.8mm FLAT TIP 6 Nos.

WEIGHT : [A] 250g ± 1% - 6 Nos. made of Stainless Steel.

[B] Additional Weight : 2.25 kg. ± 1% made of Stainless Steel –6 Nos.

Complete with 6 Nos. Analog Dial Gauge duly calibrated with NABL Traceability.
