Power (hp Range) 44.1 kW (63 hp range)

Cylinders 3

Cubic Capacity 2590 cc

Fuel Injection Pump Common Rail Injection System

Clutch Type Split Torque Clutch

Transmission Type Partial Synchro Mesh

Number of Speeds 12 Forward + 4 Reverse

Tyre Dimensions 9.5 x 24 (24.13 cm x 60.96 cm) Front

16.9 x 28 (42.93 cm x 71.12 cm) Rear

Forward Speed @ Rated RPM 31.3 km/h @ 2200

PTO Type IPTO PTO, Six-splined shaft

PTO Speed 540 RPM @ 1789 ERPM

Hydraulics Lifting Capacity 2500 kgf

Brake Type Oil Immersed Brake

Steering Type Power Steering

Overall Length 3890 mm

Overall Width 1830 mm

Wheelbase 1972 mm

Total Weight 2810 kgs

Fuel Tank Capacity 65 L

Additional Features SMART key, SMART cluster, Mat foot step, Glass heat deflectors, Auxiliary pump, Front weights (4 nos) , spool valve, Hitch rail, Rear wheel weight - 35 kgs (each side)

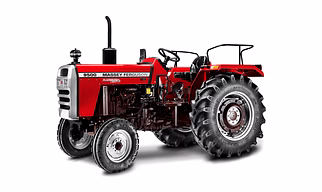

Power Range (hp Range) 50 HP (36.76 kW)

Engine SIMPSONS SJ327.1 TIII A

Cylinders 3

Cubic Capacity 2700 cc (2.70L)

Fuel Injection Pump Inline

Clutch Type Dual

Transmission Type Comfimesh

Number of Speeds 8 Forward + 2 Reverse

Tyre Dimensions 7.5 x 16 (19.05 cm x 40.64 cm) Front

14.9 x 28 (37.85 cm x 71.12 cm) Rear

Option: 7.5 x 16 (19.05 cm x 40.64 cm) Front

16.9 x 28 (42.93 cm x 71.12 cm) Rear

Forward Speed @ rated RPM 35.8 kmph

PTO Type Qudra PTO

PTO Speed 540 RPM @ 1790 ERPM

Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 2050 kgf

Three-point Linkage and Controls Draft, position and response control.

Links fitted with CAT-1 and CAT-2 balls (Combi Ball)

Brake Type Oil immersed brakes

Steering Type Power steering

Electricals 12 V 88 Ah Battery, 12 V 35 A Alternator

Overall Length 3750 mm

Overall Width 1878 mm

Overall Height 2280 mm

Wheelbase 1970 mm

Total Weight 2310 kg

Fuel Tank Capacity 60 L

Features Asli side shift, auxilary pump with spool valve, glass heat deflectors, company fitted hitch
