Application:

A tractor mounted Road Broomer is a cleaning machine towed behind tractor having hydraulic mechanism (Minimum 35 HP). This primary application of the machine is to clean the wet mix surface before paving asphalt on roads but now it's widely used for cleaning commercial, public and private places at a large. The rotating wire bristles served as brooms which sweeps and collect the dirt, debris, trash on Highway, Parking Lots, Factory and other paved and unpaved surfaces.

The side brush makes efficient cleaning of the corners, medians, road flakes, edges. Easy replacement of the brush makes it versatile for application on difference surfaces.

Components:

The main components of Road Broomer are dust collector, hydraulic motor, wire bristles, water sprinkling pump (Optional), water spraying nozzles (Optional), water tank (Optional), side broom (Optional).

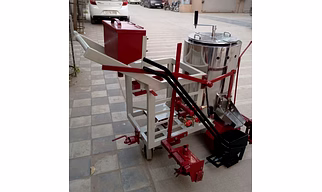

The road marking machine is an equipment used to delineate diverse traffic lines on bituminous and concrete road surface in order to provide guidance and information to motorists and pedestrians.

1. ROAD MARKING MACHINE, MODEL LRMM – 300 : TECHNICAL SPECIFICATION

• Stainless Steel of 100 kg with manual agitator.

• Marking screed box of 10 cm &15 cm each

• Thickness adjustment with rotating knob.

• Glass bead spraying mechanism of 10 cm & 15 cm each

• 10 kg. glass bead storage container with indicator

• Bimetal paint temperature gauge

• Straight & fine alignment of markings through rear wheel auto lock

• LPG burners, torch, valves, adaptors etc. attached are of reputed and reliable make

• Operator propelled
