AARSON SCIENTIFIC WORKS

School student compound Microscope  ( RS-5)

An intermediate level microscope. Its performance for most advanced work in schools.
Magnifications    :     20X, 40X, 50X, 100X, 200X, 400X or 450X.
Stand    :    Robust stand inclinable through 90°. Coarse and fine focus with variable stop.         Plano-concave mirror and gimble. 300 mm high.
Stage    :    Fixed square stage size 100 x 100mm with stage clips
Optics
  Eye pieces     :     5X HY, 10X WF or (15X optional)
Objectives     :    Achromatic 4X, 10X, 40X, 45X (Standard) 40X is spring loaded.

(RS-5A)     A five aperture disc diaphragm is fitted to control illumination    2600-00
(RS-5B)     Fixed double lens condenser with Iris Diaphragm         2800-00
(RS-5C)     Moveable double lens condenser with Iris Diaphragm    3200-00
(RS-5D)     Same as RS-5, but with inclined eyepiece tube         3800-00
     for comfortable & convenient observation.
(RS-5E)     Junior Medical Microscope : same as above but with Graduated slow motion

Binocular Research Microscope

High quality Binocular Microscope for schools, colleges and research. Square sturdy base, streamlined design.
bINOCULAR Head
 It is rotatable through 360° with inter pupillary distance 55 mm to 75mm and with a straight replaceable micro photographic tube.
Stage and Condenser
Rectangular 115 x 125 mm with co-axial mechanical stage. Sub stage movable by rack and pinion Abbe Condenser of 1.25 N.A. with iris diaphragm and filter.
Coarse and fine focusing
Coarse focusing by rack and pinion for stage movement, built in locking device to avoid breakage to Slide. Fine focusing by graduated drum type helical screw graduated to 0.002 mm. Quadruple revolving nose piece with ball bearing movement. Supplied in wooden box having lock and key.
Optics
    Eye piece                               15x Huygenian in pair, 10x WF in pair
    Objectives Achromatic        4x, 10x, 40 or 45x and 100x Oil Immersion spring loaded.

Horizontal Electrophoresis app

Dimensions: 310x150x90mm

Buffer Volume: 650ml

Number of samples: 50

Small gel tray:60x60mm (2 Nos)

Medium gel tray:120x60mm (1 No)

Large gel tray:120x120cm (1 No)

25/11 wells 1mm thick comb (2 Nos)

18/8 wells 1.5mm thick comb (1 No)

13/6 wells 1.5mm thick comb (1 No)

3/2 wells 2mm thick comb (1 No)

Buffer chamber with safety lid

Positive and negative platinum electrodes

Gel casting stand(138x138x36mm): 1 No

Connecting cord: Red and Black

Instruction Manual & Warranty Card

Semi Automatic Microtome

Exclusive outstanding advancement in microtome designed on latest A. O. SPENCER 80 model for precision, dependability and over all superiority of performance.
Salient features :
    Sturdy streamlined rigid construction.
Cuts section from one microns to 50 microns in steps of one micron.
Total feed excursion 28 mm.
    Ball and flange type object lamp accommodate specimen up to 32 × 27 mm.
    Independent feed mechanism with automatic feed release safety device.
    Counter balanced drive wheel with looking device,
    Knife manufactured from highest quality fine grained carbon steel.
Accessories
(a)    Object holders                 3 No.           (c)    Knife 120 mm with Back and handle.    1 No.
(b)    Large hone for honing.   1 No.            (d)   Leather strap for sharp edge honing.           1 No

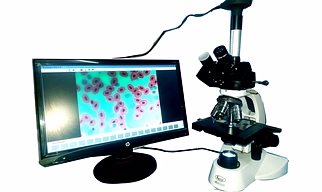

Research Microscope Trinocular with camera
High quality Binocular Microscope for schools, colleges and research. Square sturdy base, streamlined design.
Trinocular Head
 It is rotatable through 360° with inter pupillary distance 55 mm to 75mm and with a straight replaceable micro photographic tube.
Stage and Condenser
Rectangular 115 x 125 mm with co-axial mechanical stage. Sub stage movable by rack and pinion Abbe Condenser of 1.25 N.A. with iris diaphragm and filter.
Coarse and fine focusing
Coarse focusing by rack and pinion for stage movement, built in locking device to avoid breakage to Slide. Fine focusing by graduated drum type helical screw graduated to 0.002 mm. Quadruple revolving nose piece with ball bearing movement. Supplied in wooden box having lock and key.
Optics
    Eye piece                               15x Huygenian in pair, 10x WF in pair
    Objectives Achromatic        4x, 10x, 40 or 45x and 100x Oil Immersion spring loaded
