Our Products
Showing 1-5 of 5 products
POWER TRANSFORMER
Ratings : Three Phase CRGO – Upto 15000 kVa
Applicable Standards : IS, IEC, ANSI, JIS, DIN, BS Etc.
Cooling : ONAN, ONAF
Insulating : Fluid Ester Oil to specification
Frequency : 50 Hz, 60 Hz
Primary voltage : Upto 33000 V
Secondary Voltage : 22000, 11000 , 6600, 3300 V (Other Voltages as required)
Winding material : Copper
Taping range : Off circuit and On load tap changers as per customer specification

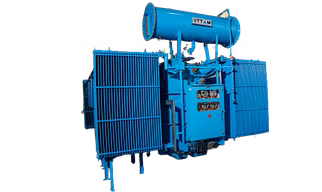

INVERTER DUTY TRANSFORMER
» Available in Stack core
» Modern manufacturing techniques ensuring quality of product
» Robust build designed to withstand electric impulses, thermal and dynamic stress
» Designs through Computer Aided Design (CAD) Software System
» Trouble free performance
» Customised design and specification demands
» After sales maintenance and spare parts services
» These Transformers have been TYPE TESTED at ERDA/CPRI
FURNANCE TRANSFORMER
» Induction Furnace Duty Transformers – upto 24 Pulse
» Transformers with Dual Outputs (Three Winding Transformers)
» Step-up Transformers for Solar/Wind Turbine application
» Transformers suitable for Dual Input Voltages (eg 11 & 33kVA, 22 & 11kVA, 11 & 6.6kVA, etc.)
» Hermetically Sealed type Transformers, with Corrugated Radiator Panels
» Earthing Transformers
» Completely Self Protected (CSP) type Transformers
» Auto Transformers
» Isolation Transformers
» Scott Connected Transformers (for converting three-phase to two-phase supplies)
» Transformers for testing purposes, such as – high voltage testing transformers, Induced Over-Voltage testing transformers, etc.
DISTRIBUTION TRANSFORMER
Ratings : CRGO – Upto 3000 kVA (higher rating can also be offered) Amorphous – upto 160kVA
Applicable Standards : IS, REC, CBIP, IEC, ANSI, JIS, BS etc.
Cooling : ON AN
Insulating Fluid : Ester Oil to specification
Frequency : 50 Hz, 60 Hz
Primary voltage : Upto 33 kV
Secondary Voltage : 415, 433 V (Other Voltages as required)
Winding material : Copper (upto 3000 kVA) / Aluminium (upto 800 kVA)
Taping range : ± 5% in steps of 2.5% (Other tapings as required)
HERMETICALLY SEALED TRANSFORMERS
» Induction Furnace Duty Transformers – upto 24 Pulse
» Transformers with Dual Outputs (Three Winding Transformers)
» Step-up Transformers for Solar/Wind Turbine application
» Transformers suitable for Dual Input Voltages (eg 11 & 33kVA, 22 & 11kVA, 11 & 6.6kVA, etc.)
» Hermetically Sealed type Transformers, with Corrugated Radiator Panels
» Earthing Transformers
» Completely Self Protected (CSP) type Transformers
» Auto Transformers
» Isolation Transformers
» Scott Connected Transformers (for converting three-phase to two-phase supplies)
» Transformers for testing purposes, such as – high voltage testing transformers, Induced Over-Voltage testing transformers, etc.
