Our Products
Showing 1-8 of 8 products
UF MEMBRANE
We are a big supplier & trader of UF membrane for water & wastewater treatment plant.
ULTRA FILTRATION MEMBRANE FOR WATER TREATMENT
MODEL NO FLOW PRICE
PPA-UFW-0250 250 LITER / HR 25000.00
PPA-UFW-0500 500 LITER / HR 48000.00
PPA-UFW-0750 750 LITER / HR 65000.00
PPA-UFW-1000 1000 LITER / HR 88000.00
PPA-UFW-1500 1500 LITER / HR 112000.00
PPA-UFW-2000 2000 LITER / HR 132000.00
ULTRA FILTERATION MEMBRANE FOR WASTEWATER TREATMENT
MODEL NO FLOW PRICE
PPA-UFS-0250 250 LITER / HR 48500.00
PPA-UFS-0500 500 LITER / HR 68000.00
PPA-UFS-0750 750 LITER / HR 90000.00
PPA-UFS-1000 1000 LITER / HR 115000.00
PPA-UFS-1500 1500 LITER / HR 132000.00
PPA-UFS-2000 2000 LITER / HR 152000.00
TUBE SETTLER MEDIA MEDIA
MODEL - PP-TSM-99
PLAN SETTLING AREA OF MEDIA
600 SLOPE
550 SLOPE
11 M2/M3 (600 SLOPE)
13 M2/M3 (550 SLOPE)
CROSS SECTIONAL AREA 120 MM X 44 MM
STRUCTURE/ SHAPE HEXAGONAL CHEVRON
SEPERATION BETWEEN LEMELLA PITCH 45 MM
HYDRAULIC RADIUS 1.7 cm
MOC OF MEDIA PVC
THICKNESS 1.0 MM (+/- 0.1 mm)
FITTING ARRANGEMENT
TONGUE & GROOVE
MAX CONTINUOUS OPERATING TEMPERATURE
550 CELSIUS
COLOUR
BLACK
DISTANCE BETWEEN ADJASANT TUBES
HORIZONTAL
VERTICAL
120.0 mm
44.0 mm
SEPARATE HEIGHT
500 MM
1000 MM
OTHER HEIGHT
5.5 M2 SETTLING AREA /M2
11.0 M2 SETTLING AREA /M2
UPON REQUEST

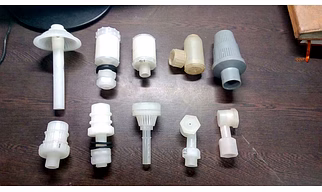

FILTER NOZZLE
The technical data sheet for the water filter nozzle
SN Description of items Water Filter Nozzle (PPFN100) Water Filter Nozzle (PPFN150)
1 material of construction pp pp
2 no of ring 32 64
3 size of connection thread m 15 m 15
4 connection od 18 mm 18 mm
5 connection id 12 mm 12 mm
6 connection thread length 50 mm 50 mm
7 cap thread length 15 mm 15 mm
8 total length 115 mm 155 mm
9 operating pressure 5 kg/cm2 5 kg/cm2
ADVANCE MBBR MEDIA
MODEL PP 1225
EFFECTIVE SPECIFIC SURFACE AREA OF MEDIA 500 M2/M3
COLOUR WHITE
MEDIA HEIGHT 12 MM
MEDIA DIAMETER 25 MM NO OF HOLES 19.0
TYPE OF MEDIA MBBR K2 MEDIA/ BIO FILTER MEDIA
MOC OF MEDIA VIRGIN HDPE/PE UV STABILIZED
STRUCTURE CYLINDRICAL WITH EXTERNAL FINS
PSA/TSA RATIO (%) >90
SPECIFIC WEIGHT (Kg/M2) SURFACE AREA 0.32
SPECIFIC GRAVITY 0.90 – 0.95 gms/cm3
MAX CONTINUOUS OPERATING TEMPERATURE 5-450C
VOIDAGE > 97%
DENSITY (GM/CC) >0.92
MEDIA FILL RATE RANGE, % FILL OF V 25 – 55
BOD5/ CUM/ DAY 1500-2000
COD5/ CUM/ DAY 2000 - 15000
MEMBRANE FORMING TIME 3 – 15 DAYS
LIFE SPAN (YEAR) >20
MBR SEWAGE TREATMENT PLANT
We are a manufacturer & supplier of MBR sewage treatment pant in very economic price, and better result.

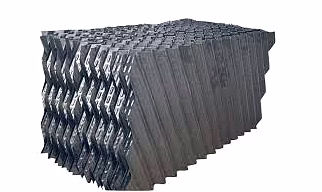

SAFF MEDIA
PRODUCT- PP.SA.19.79
FLUTE HEIGHT (MM) - 27
LONGITUDINAL PITCH (MM) - 65
SPIRAL ANGLE (DEG.) - 27
STANDARD SHEET SIZE L x W(MM) - 1200 x 600
MAXIMUM FILL SHEET SIZE L x W (MM) - 1800 x 600
SURFACE AREA/UNIT VOLUME (M2/M3) - 110
MAX. CONTINUOUS OPERATING TEMPERATURE (DEG. C) - 55
RECOMMENDED MINIMUM FILL THICKNESS (MM) - 0.30
FINE BUBBLE DIFFUSER
TYPE MEMBRANE OD LENGTH AIR FLOW RATE
PPA-63-610 65MM 610 MM 2.0 - 7.0 m3/hr
PPA-63-1000 65MM 1000 MM 7.0 – 10.0 m3/hr
PPA-90-1000 90 MM 1000 MM 9.0 – 12.5 m3/hr
FINE BUBBLE DISC DIFFUSER
MODEL PPA-DD-9 PPA-DD-12
SHAPE OF AERATOR DISC TYPE DISC TYPE
MOC OF MEMBRANE EPDM EPDM
SIZE OF AERATOR 9” 12”
TYPE OF BUBBLE FINE BUBBLE FINE BUBBLE
SIZE OF BUBBLES 0.8 MM – 2.1 MM 0.8 MM – 2.1 MM
AIR FLOW RATE 2.5 – 6.0 CUM/HR 4.2 – 11.0 CUM/HR
FLOW RANGE 0 -12.0 CUM/HR 0 – 20.0 CUM/HR
MOC OF MEMBRANE SUPPORT ABS ABS
ACTIVE SURFACE AREA 0.0375 0.0650 SQM
OPERATING TEMPERATURE RANGE 35 DEG. 35 DEG.
TEMPERATURE TOLERANCE MAX 85 DEG. MAX 85 DEG.
OXYGEN UTILIZATION RATIO (%) 30 30
SIZE OF END CONNECTION 3/4” NPT, MALE 3/4” NPT, MALE
SLIT QUANTITY 6600 10155
WEIGHT 0.680 KGS 1.4 KGS
