AKAS MEDICAL EQUIPMENT

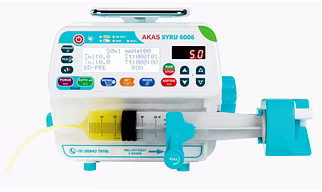

SYRINGE PUMP
Power Supply    AC 220V to 240V 50Hz
Battery Backup    8 hrs @ 5ml/Hr flow rate on 50 ml syringe Power Consumption    7 VA
Applicable Syringe    2ml, 5ml, 10ml, 20ml, 30ml, 50/60ml Syringes form
JMS, Braun, Dispovan, BD and Custom Brands.
Automatic syringe size detector
Custom Syringe programmable
Available
Programmable to any brand of Syringe on field

Flow rate Range    0.01 – 350 ml/Hr (2ml Syringe)
0.1 – 750 ml/Hr (5ml Syringe)
0.1 – 1000 ml/Hr (10ml Syringe)
0.1 – 1800 ml/Hr (20ml Syringe)
0.1 – 2500 ml/Hr (30ml Syringe)
0.1 – 3000 ml/Hr (50ml Syringe)
Infused Volume    0.1 – 9999 ml
Elapsed Time    Display of Elapsed time from 00.00 to 199.59 hrs
Accuracy    Mechanical Accuracy ±1% Including Syringe ± 2%
Bolus    Purge Bolus & Auto Bolus(hands free bolus operation)
Bolus Rate    0.01 – 350 ml/Hr (2ml Syring

Pumping mechanism     Linear Peristaltic
Drop Sensors     External
Display    4x20 LCD & 7 Segment Display for viewing in dark ICUs from long distance, LED Displays for machines current status indicatioin
Dimension     148mm x 110mm x190mm
Housing     ABS PC Plastic
Coating     Rust proof durable
Weight     2.0 kg  without Fixing Clamp
Mains voltage     220-240 V AC, 50Hz
DC Operation    18 V, 2A Optional
Power consumption     10 VA
I.V set mL conversion     Adult I.V sets - 12 to 26 drop/

Blood & Fluid Warmer:

Product Weight    : <700 g

Safety Features:

1. First level protection at 50°C, Second Level protection at 55°C.
2. Automatic Overheat protection.

Time taken for the heater to reach a temperature of 42°C from 25°C: 120  seconds (under nominal room temperature)

Maximum flow rate:1mL/Hr to 1000mL/Hr.

Disposables Required:

1. All IV Set type of diameter 3mm - 5mm

Modes:
1. Temperature in °C mode.
2. Temperature in °F mode."

Temperature Accuracy    :±0.1°C @ room temperature 10°C to 40°C

Extension tube support:    100cm extension support

Software Protection:    Software cutoff if temperature rises or drops below 1°C

Display Size:    Large LED Display (30*15mm)

Heater Protection:    Automatic heater turn OFF after 24 hours continuous run.

Idle indicator    :   Idle alarm will be triggered in 15 minutes if the Heater is OFF.

Dimension: 117 x 51 x 205 mm

CDSCO Certified    Yes

CE Certified    Yes

Blood & Fluid Warmer:

Product Weight    : <700 g

Safety Features:

1. First level protection at 50°C, Second Level protection at 55°C.
2. Automatic Overheat protection.

Time taken for the heater to reach a temperature of 42°C from 25°C: 120  seconds (under nominal room temperature)

Maximum flow rate:1mL/Hr to 1000mL/Hr.

Disposables Required:

1. All IV Set type of diameter 3mm - 5mm

Modes:
1. Temperature in °C mode.
2. Temperature in °F mode."

Temperature Accuracy    :±0.1°C @ room temperature 10°C to 40°C

Extension tube support:    100cm extension support

Software Protection:    Software cutoff if temperature rises or drops below 1°C

Display Size:    Large LED Display (30*15mm)

Heater Protection:    Automatic heater turn OFF after 24 hours continuous run.

Idle indicator    :   Idle alarm will be triggered in 15 minutes if the Heater is OFF.

Dimension: 117 x 51 x 205 mm

CDSCO Certified    Yes

CE Certified    Yes

Blood & Fluid Warmer:
Product Weight    : <700 g
Safety Features:
1. First level protection at 50°C, Second Level protection at 55°C.
2. Automatic Overheat protection.
Time taken for the heater to reach a temperature of 42°C from 25°C: 120  seconds (under nominal room temperature)
Maximum flow rate:1mL/Hr to 1000mL/Hr.
Disposables Required:
1. All IV Set type of diameter 3mm - 5mm
Modes:
1. Temperature in °C mode.
2. Temperature in °F mode."
Temperature Accuracy    :±0.1°C @ room temperature 10°C to 40°C
Extension tube support:    100cm extension support
Software Protection:    Software cutoff if temperature rises or drops below 1°C
Display Size:    Large LED Display (30*15mm)
Heater Protection:    Automatic heater turn OFF after 24 hours continuous run.
Idle indicator    :   Idle alarm will be triggered in 15 minutes if the Heater is OFF.
Dimension: 117 x 51 x 205 mm
CDSCO Certified    Yes
CE Certified    Yes
